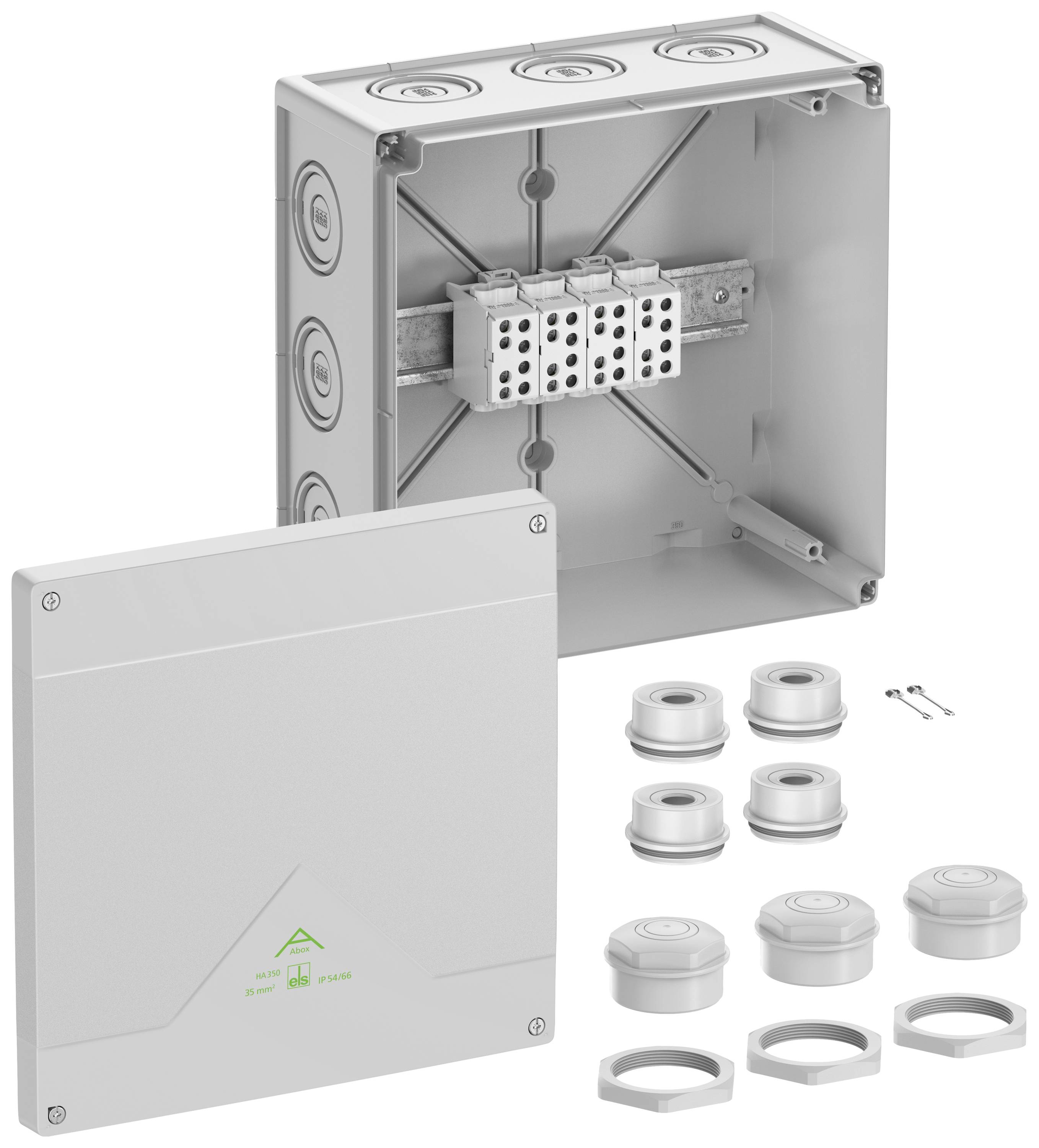

Spelsberg 48143501 Junction box (L x W x H) 252 x 252 x 120 mm Grey IP54, IP66 1 pc(s)

Junction box with IP54/IP66 degree of protection, 35 mm² nominal cross-section, certified by DLG (ammonia resistance), impact membranes, M20/M25/M40/M50, (4 back, 12 side), Internal mounting points, for standard indoor and protected outdoor installations, gray, Ui=690 V AC, with standard rail mounted main cable branch terminals, 4-pin, pluggable cross-sections per pole Main line: 10 - 35 mm² rigid (Cu/Al) and multi-strand (Cu), 10 - 25 mm² fine-wired with wire-end sleeve (Cu). Clamping able cross section per pin Splitter cable 1.5 - 25 mm² rigid (Cu/Al) and multi-strand (Cu), 1.5 -16 mm² fine-stranded with wire-end sleeve (Cu). Rated current according to EN 60947-7: 160 A (Cu) and 130 A (Al).

This text is machine translated.
