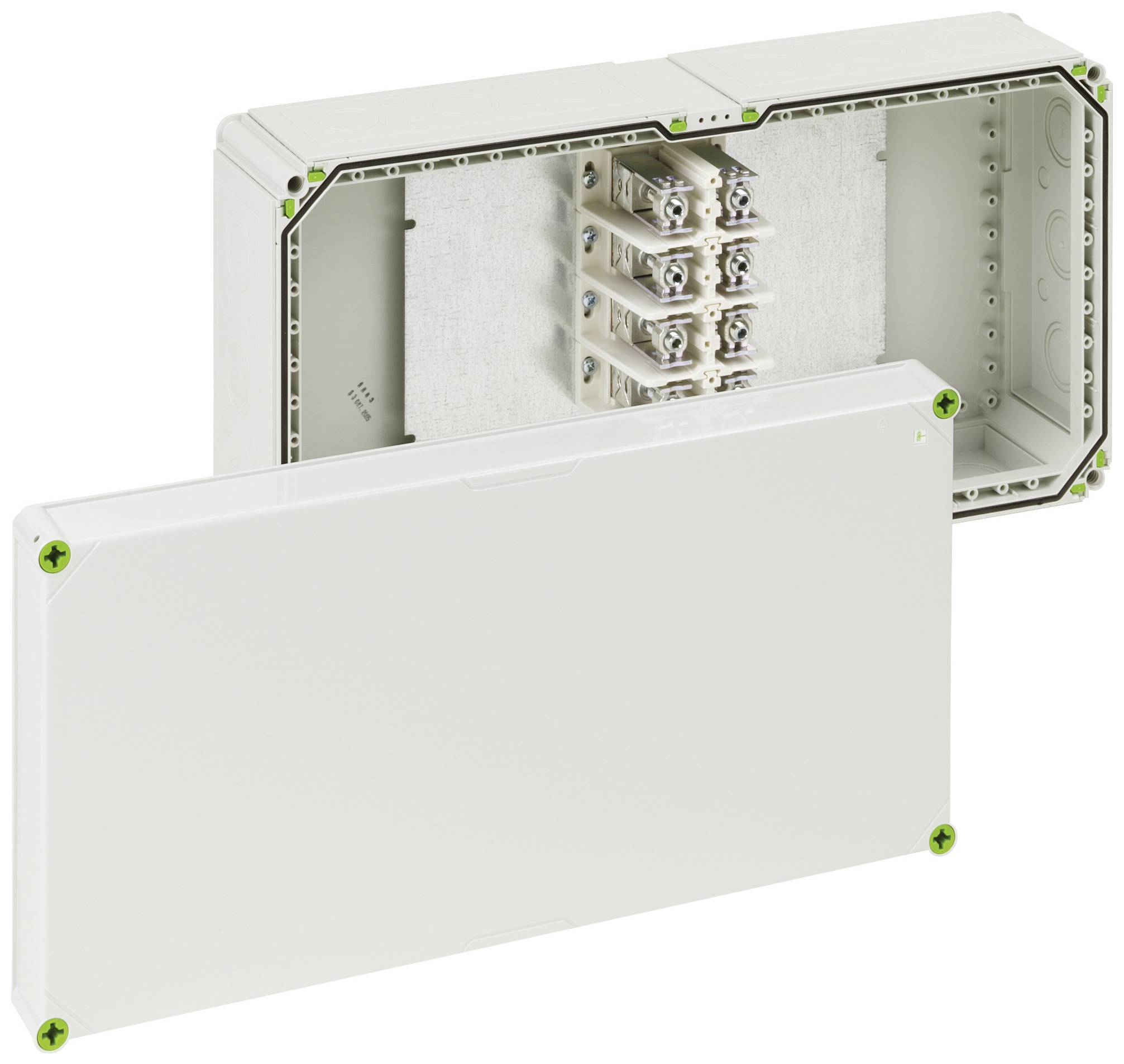

Spelsberg 49049401 Joint box (L x W x H) 320 x 640 x 179 mm Grey IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Wall/ceiling mounting
- Rated insulation voltage UI: 690 V.
- Max. Conductor cross-section 240 mm²
- Operating temperature: -35 °C - +80 °C.
- Number of introductions: 36
- Weather-resistant: Yes
- Pouring: Yes
- Product type
Joint box
- Factory colour
Grey
IP65
- Dim
(L x W x H) 320 x 640 x 179 mm
- Type
rectangular; untreated
- Features
Halogen-free
Sealable
- Content
1 pc(s)
- Material
Plastic
- Width
640 mm
- Height
179 mm
- Length
320 mm
Wall-/ceiling mounting
Grey
640
TRUE
179 mm
Rectangular
Untreated
690 V
320 m
-35-80 °C
Plastic
FALSE
IP65
None
None
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378441 Spelsberg 49049401 Joint box (L x W x H) 320 x 640 x 179 mm Grey IP65 1 pc(s)
Datasheet 2378441 Spelsberg 49049401 Joint box (L x W x H) 320 x 640 x 179 mm Grey IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2378441 Spelsberg 49049401 Joint box (L x W x H) 320 x 640 x 179 mm Grey IP65 1 pc(s)
Description
Junction box, industrial quality, UI=690V, weather-resistant, impact-resistant, Halogen-free, sealable, special screw terminal for conductor entry from above, each pole up to 2 x 185q/240q or 4 x 120q, suitable cable entries see accessories, gray, 4-pin-25 to 240qmm, CU/AL
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
