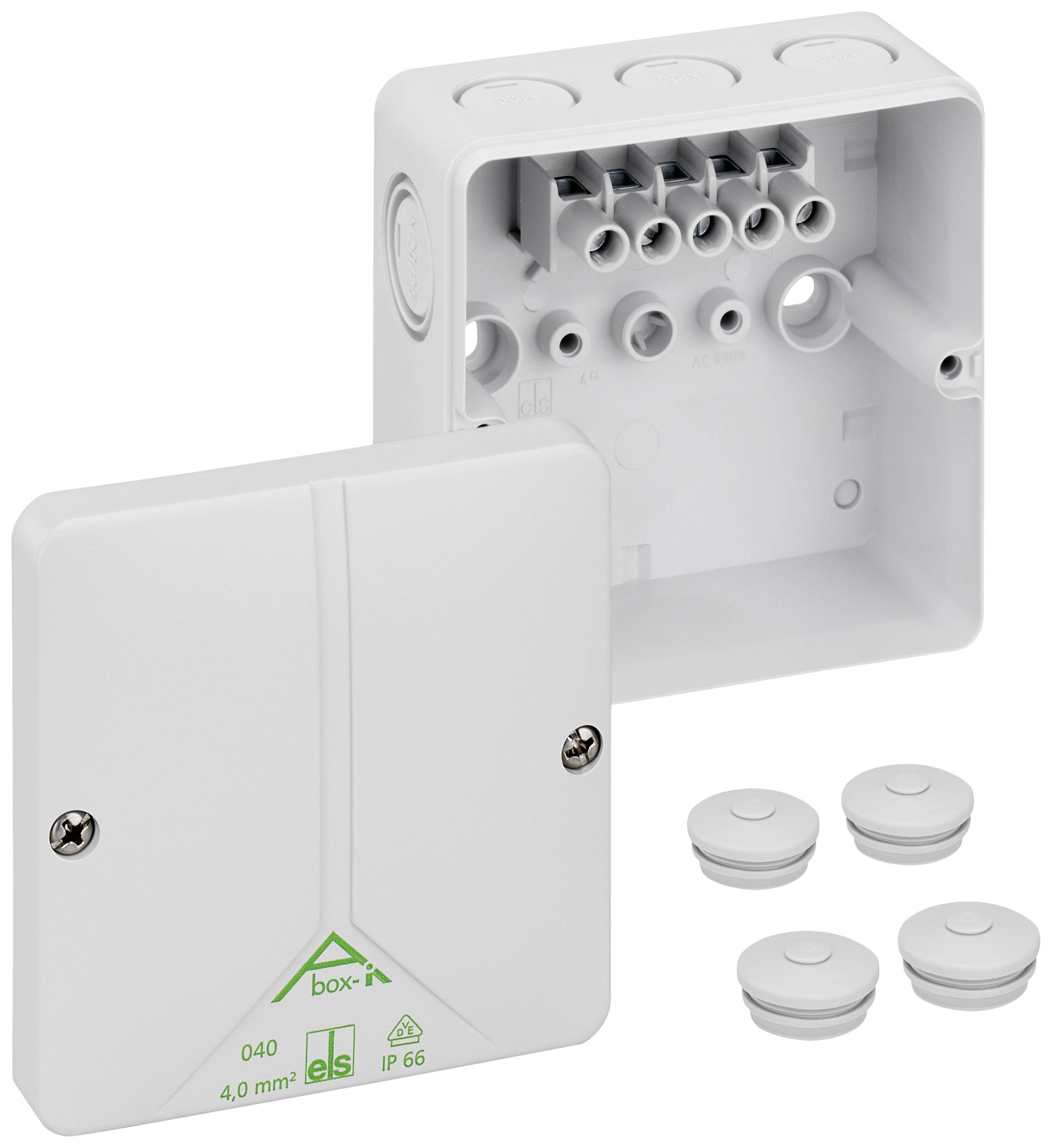

Spelsberg 50140401 Joint box (L x W x H) 94 x 94 x 56 mm Grey IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
Abox-i 040 GR m ²
- IP66
- Impact strength IK08
- 2.5/4 ² nominal cross-section
Technical specifications
- Can be used from -35°C to 80°C
- Product type
Joint box
- Factory colour
Grey
IP66
- Dim
(L x W x H) 94 x 94 x 56 mm
- Features
Halogen-free
Sealable
with terminal block
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Width
94 mm
- Height
56 mm
- Length
94 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1590516 Spelsberg 50140401 Joint box (L x W x H) 94 x 94 x 56 mm Grey IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1590516 Spelsberg 50140401 Joint box (L x W x H) 94 x 94 x 56 mm Grey IP66 1 pc(s)
Description
Junction box - Industrial Quality - according to DIN EN 60670 (VDE 0606), Ui=690 V, weather-resistant, impact-resistant, with imprints, M20, M20/M25, for IP66 double membrane brackets, suitable cable entries see accessories.
Tutorials:
Imprints above: 3 x M20
Imprints left/right: 2 x M20/M25
Imprints below: 1 x M 20/25
Imprints on the rear: 1 x M 20/25
This text is machine translated.
Tutorials:
Imprints above: 3 x M20
Imprints left/right: 2 x M20/M25
Imprints below: 1 x M 20/25
Imprints on the rear: 1 x M 20/25
This text is machine translated.
Features
- Halogen-free
- VDE mark
- Protection class 2
- Entries Total: 8.
Hints
Safety-relevant component - installation only by skilled workers
