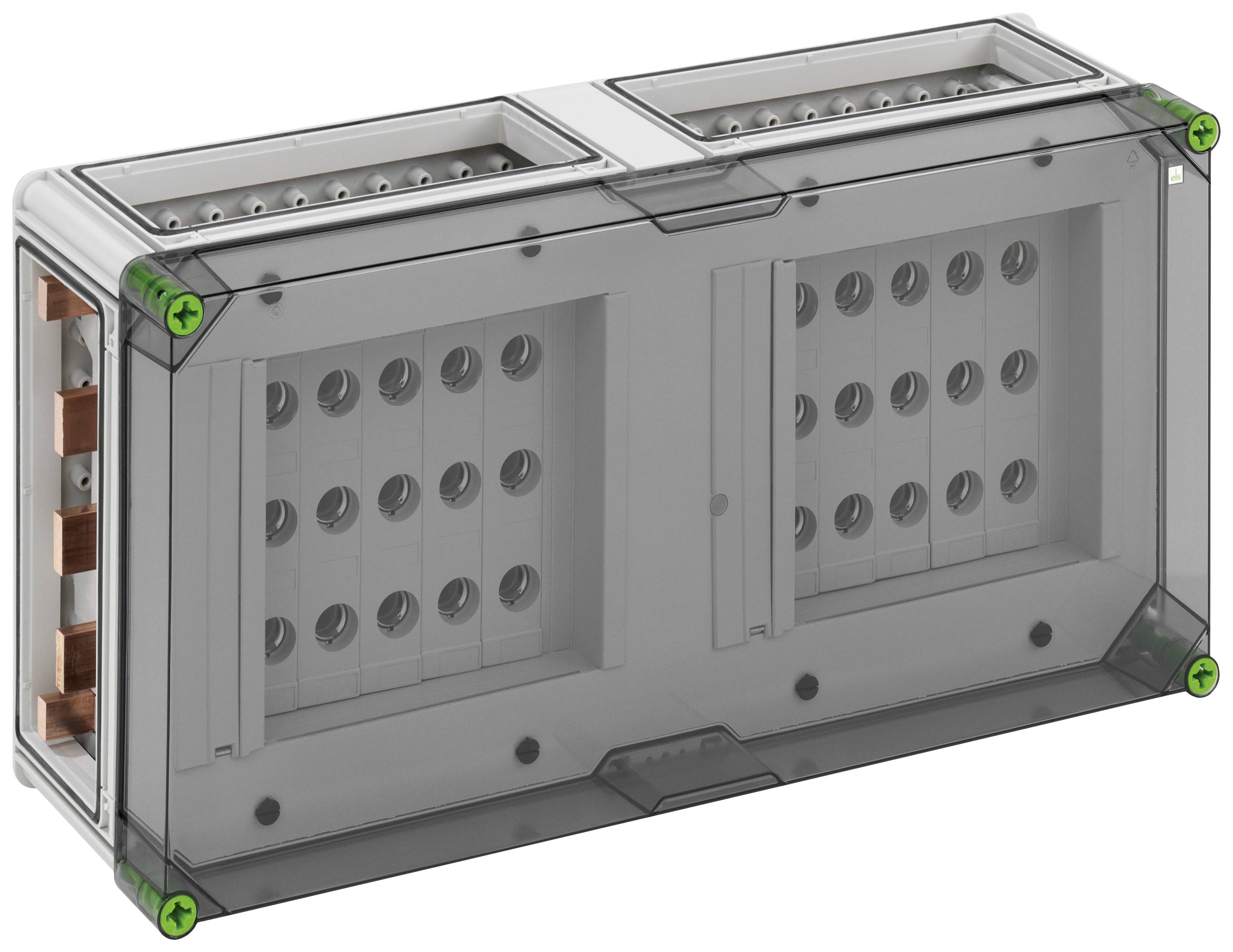

Spelsberg 5541086 GSN 4210-630 Switchboard cabinet Busbar No. of partitions = 10 No. of rows = 10 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
10
No. of rows
10
Mounting type
Busbar
Width
640 mm
Datasheet (PDF)
Number
Total (€ 642.86 / piece)
€ 642.86
plus VAT.
14-day return policy included
Technical specifications
- Design: NEOZED® - equestrian fuse housing
- Protection system: IP65
- Rated current 630 A
- Material: Plastic
- Fuse: Screw fuse
- Cover type: Transparent
- Product type
Switchboard cabinet
- No. of partitions
10
- with PE and N terminals
Yes
- No. of rows
10
- Mounting type
Busbar
- Width
640 mm
- Height
320 mm
- Dim
(W x H x D) 640 x 320 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
640
320 mm
179 mm
630 A
Plastic
IP65
3R
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379233 Spelsberg 5541086 GSN 4210-630 Switchboard cabinet Busbar No. of partitions = 10 No. of rows = 10 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379233 Spelsberg 5541086 GSN 4210-630 Switchboard cabinet Busbar No. of partitions = 10 No. of rows = 10 Content 1 pc(s)
Description
NEOZED(R)-Tab-Fuse casing, industrial quality, 10 x 3-pin D02-Tab-Fuse socket, E 18-Thread, Rated current 63 A, Screw connection 1.5-25qmm, on Busbar 5-pin, With 5 busbar terminals 4-35qmm, N terminals 1.5-16qmm, PE terminals 1.5-16qmm, 4 x housing connectors (GGV), on 630 A busbar system, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
