Buy Spelsberg 72992301 STV 923-L Wall-mount enclosure Wall No. of partitions = 9 Content 1 pc(s)

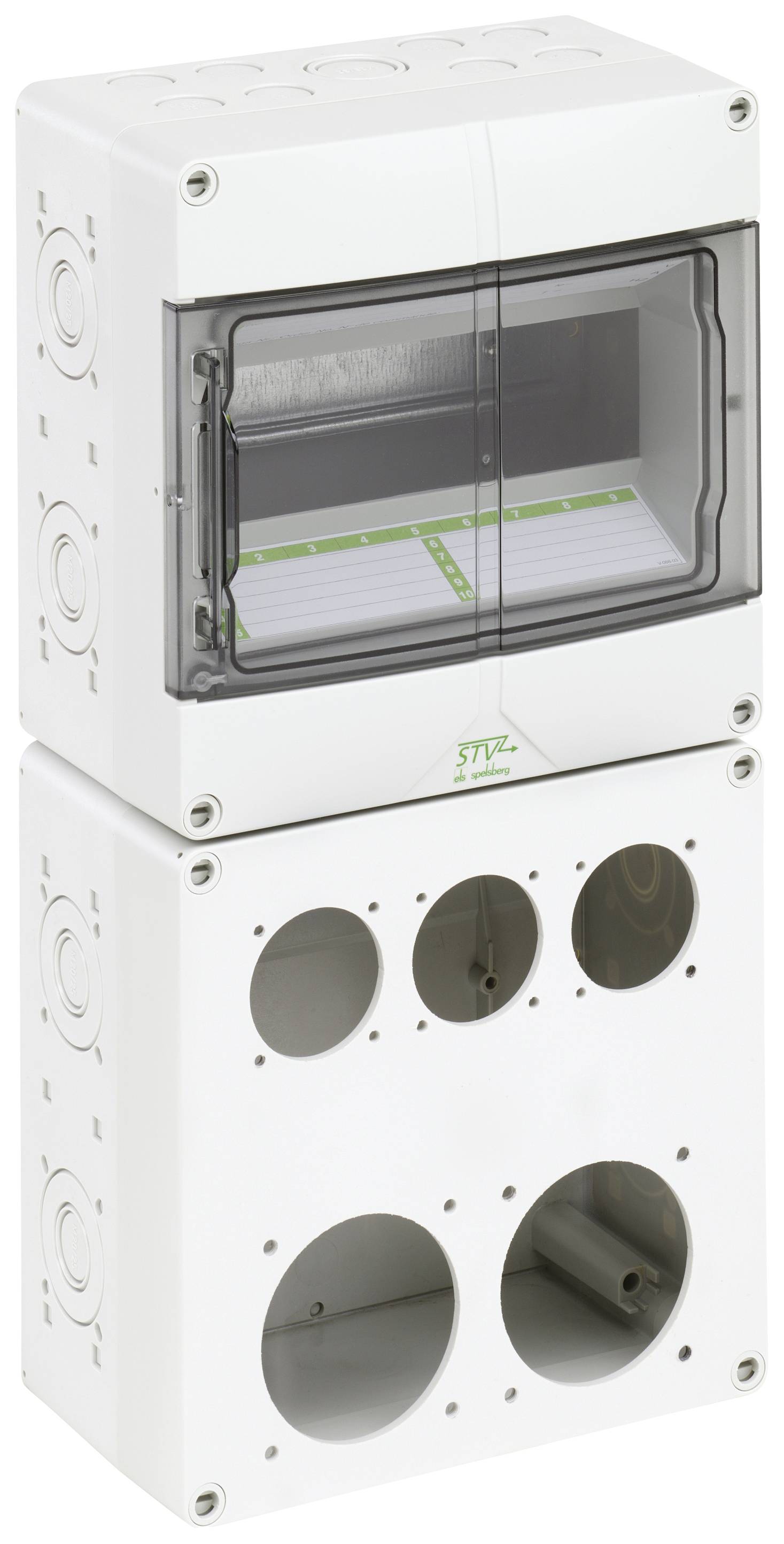

Electrical distribution box made of white plastic with a transparent lid. Underneath are openings for cables.

Product type

Wall-mount enclosure

No. of partitions

Mounting type

Wall

Width

200 mm

Height

400 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Design: Empty socket housing
Protection class: IP44
Material: Plastic

Product type: Wall-mount enclosure

No. of partitions: 9

Mounting type: Wall

Factory colour: Grey

Width: 200 mm

Height: 400 mm

Dim: (W x H x D) 200 x 400 x 122 mm

Depth: 122 mm

Content: 1 pc(s)

: Grey

: 200

: 400 mm

: 122 mm

: Plastic

: 19.7 W

: IP44

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2379280 Spelsberg 72992301 STV 923-L Wall-mount enclosure Wall No. of partitions = 9 Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2379280 Spelsberg 72992301 STV 923-L Wall-mount enclosure Wall No. of partitions = 9 Content 1 pc(s)

Description

Socket distributor, empty, for customer-side installation of series installation devices, earthing contact sockets and CEE sockets, incl. PE/N terminal as well as adapters and screws for mounting the sockets, high mechanical load capacity, temperature-insensitive, combined, division units: 9TE
3 x hole for socket with a diameter of 44.5mm and drill hole spacing for vertical / horizontal mounting of 38/38mm (front side)
2 x hole for socket with diameter 66.5mm and hole spacing for vertical / horizontal mounting of 60/60mm (front side)

This text is machine translated.
