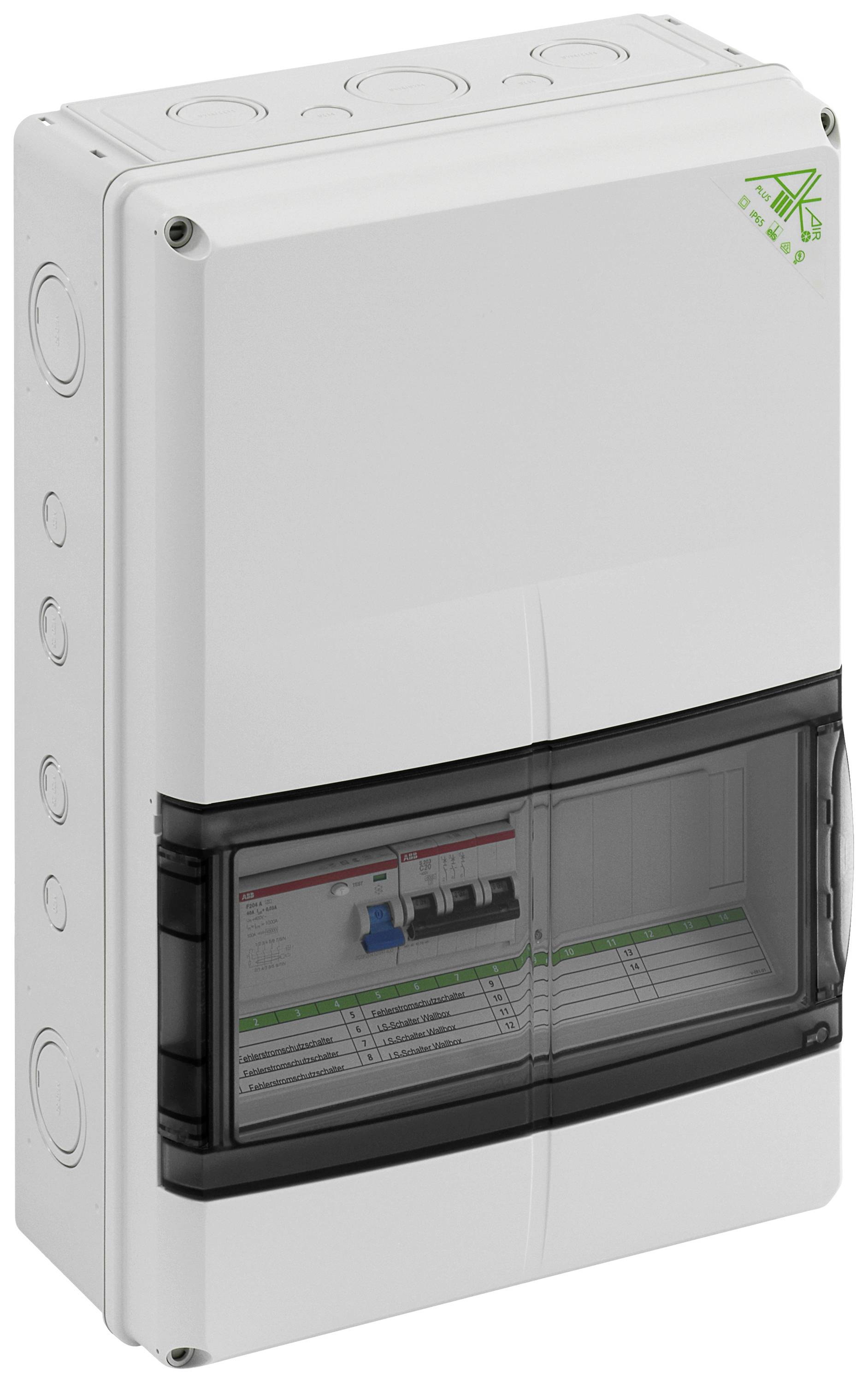

Spelsberg 73301101 AK 14+EMOBIL 11kW-A Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
14
No. of rows
1
Mounting type
Surface-mount
Width
315 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65Material: PlasticCover version: TransparentNumber of phases: 3
- Product type
Distribution board
- No. of partitions
14
- No. of rows
1
- Mounting type
Surface-mount
- Width
315 mm
- Height
155 mm
- Dim
(W x H x D) 315 x 155 x 450 mm
- Depth
450 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379890 Spelsberg 73301101 AK 14+EMOBIL 11kW-A Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1
User & Safety Instructions
User & Safety Instructions 2379890 Spelsberg 73301101 AK 14+EMOBIL 11kW-A Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1
Description
E-Mobility infrastructure distributor, 1-row with integrated ventilation elements for avoiding condensation, type tested according to EN 61439-3, ready-wired to supply and outlet terminals 10qmm, for a wallbox 11kW with integrated 6mA DC monitoring, equipped with LS switch 20A, RCCB 40/4/30mA type A
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
