Buy Spelsberg 73341401 AK 14 Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1 pc(s)

Grey electrical distribution cabinet with a transparent window, showing numbered switch panels. Suitable for industrial applications.

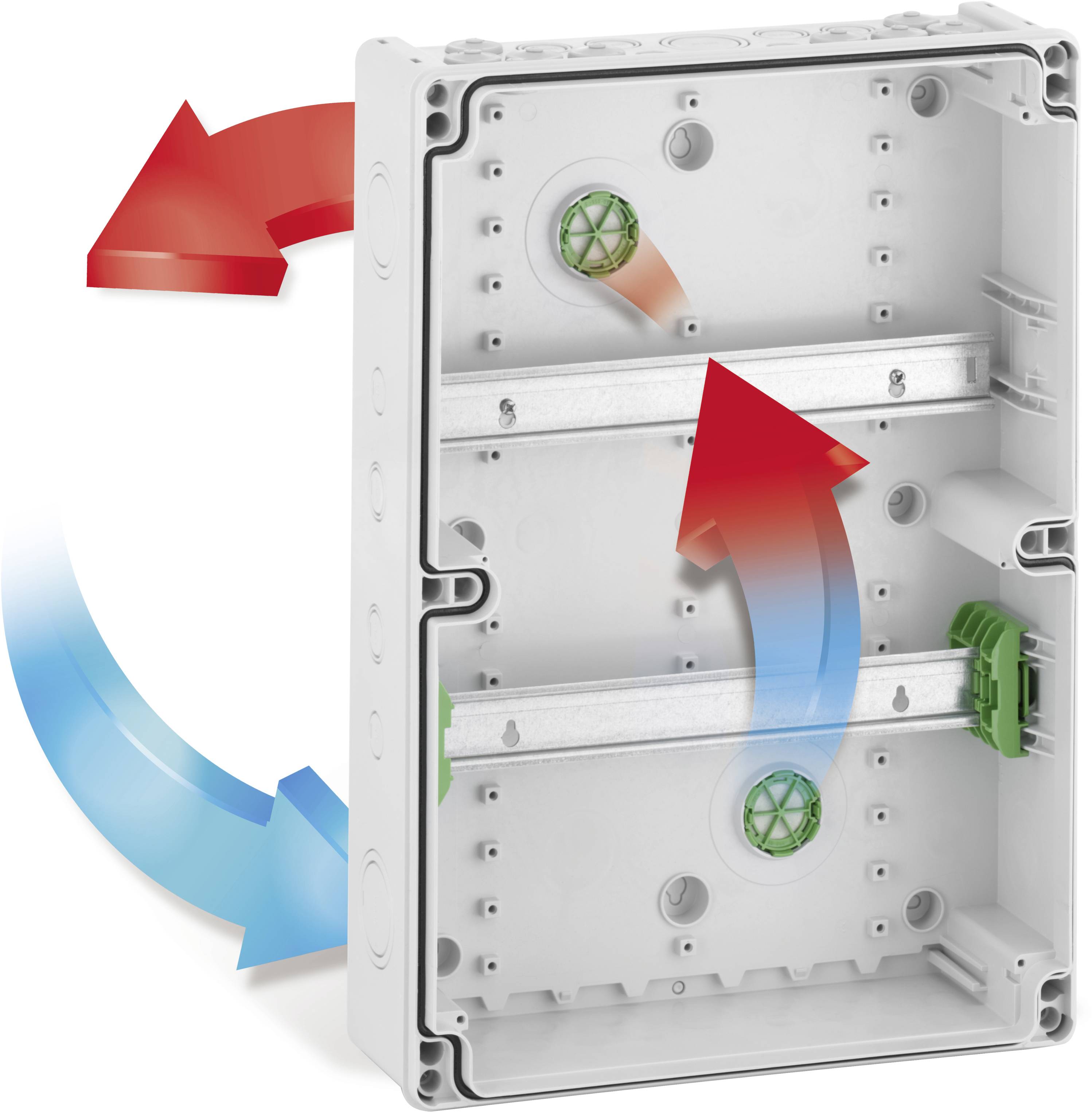

Housing with ventilation system: Cooling blue air flows in, warm red air flows out. Arrows indicate ventilation direction.

1/2

Product type

Distribution board

No. of partitions

No. of rows

Mounting type

Surface-mount

Width

315 mm

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 75.62 / piece)

€ 75.62

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Small distributor AK 14

With Air ® technology
VDE-certified
The DLG-certified
IP65

Technical specifications

Product type: Distribution board

No. of partitions: 14

with PE and N terminals: Yes

No. of rows: 1

Mounting type: Surface-mount

Factory colour: Grey

Width: 315 mm

Height: 300 mm

Dim: (W x H x D) 315 x 300 x 155 mm

Depth: 155 mm

Content: 1 pc(s)

: Other

: Grey

: 315

: TRUE

: 300 mm

: 155 mm

: 7035

: FALSE

: 95 mm

: 1

: Door

: Plastic

: 14

: IP65

: FALSE

: With notch

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1406137 Spelsberg 73341401 AK 14 Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1406137 Spelsberg 73341401 AK 14 Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1 pc(s)

Information

Information 1406137 Spelsberg 73341401 AK 14 Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1 pc(s)

Certificate

Certificate 1406137 Spelsberg 73341401 AK 14 Distribution board Surface-mount No. of partitions = 14 No. of rows = 1 Content 1 pc(s)

Description

Small distributor - Industrial Quality - 1-row, 14 division units, integrated ventilation elements to reduce condensation erbil fertilizers, top elastic lead in, with cover and labelling strips, additional double membrane stub and other accessories, protection class II, rated insulation voltage 1000 V AC, rated insulation voltage ui 1500 V DC, halogen-free, VDE-tested, impact strength IK08, screwless PE/N terminal strips with 3 respective screwable clamping points, clamping points 2.5 - 16 mm2, 14 screwless clamping points 1.5 - 4 mm ². The air ventilation element prevents condensation while maintaining the high protection class IP65. Prevents the condensate is transported by air exchange in the shortest time from the housing. Due to the constant and high air exchange, the air inside always with the ambient air mixing and transports humidity to the outside.

This text is machine translated.
