Buy Spelsberg 73342801 AK 28 Distribution board Surface-mount No. of partitions = 28 No. of rows = 2 Content 1 pc(s)

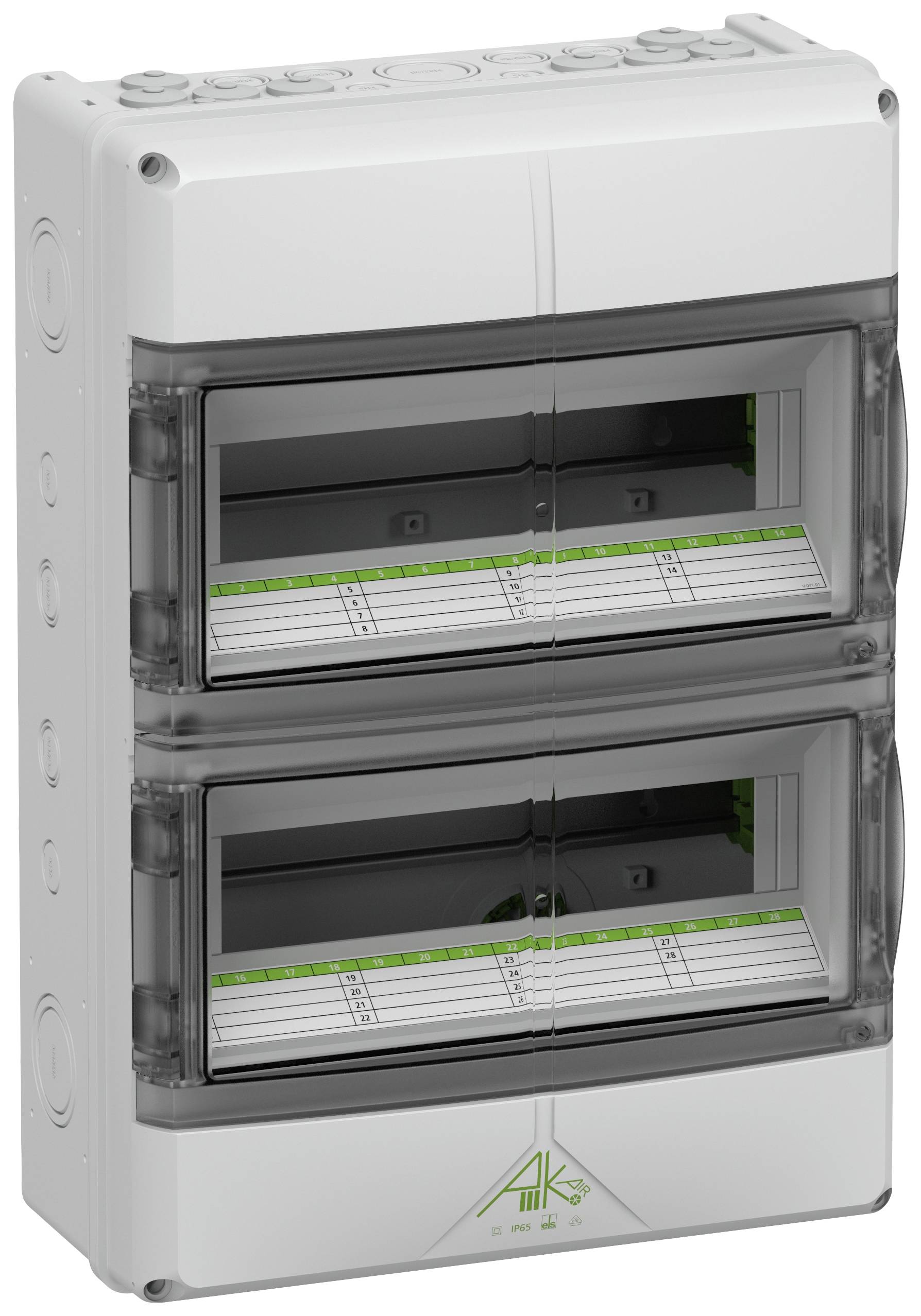

A grey, rectangular distribution box with two transparent covers revealing protective switch compartments.

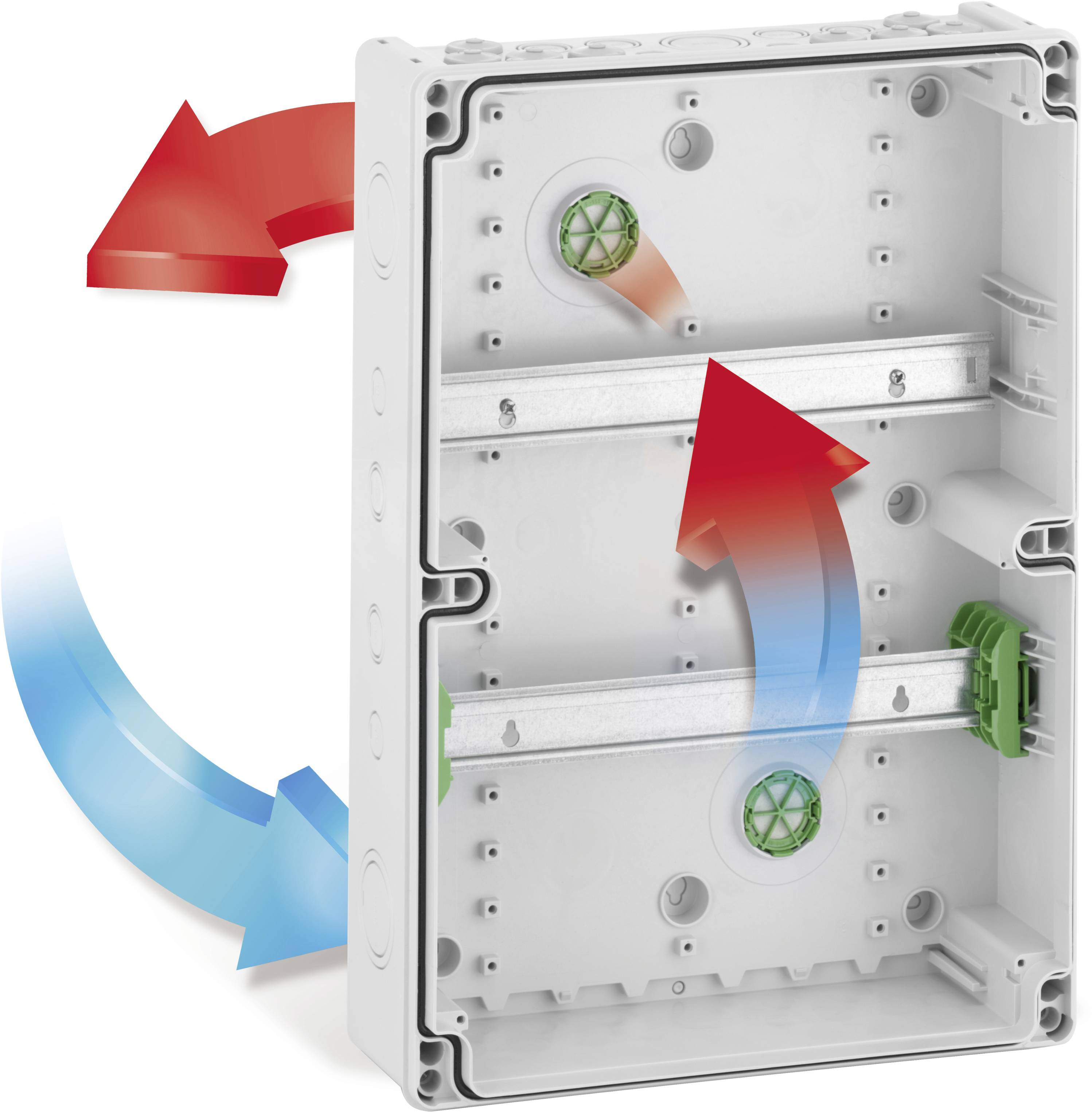

A rectangular enclosure with ventilation and arrows indicates the airflow. The air is drawn in from below and directed upwards.

1/2

Product type

Distribution board

No. of partitions

No. of rows

Mounting type

Surface-mount

Width

450 mm

Datasheet (PDF)

Unavailable

1 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Small distributor AK 28

With Air ® technology
VDE-certified
The DLG-certified
IP65
This text is machine translated.

Technical specifications

Product type: Distribution board

No. of partitions: 28

with PE and N terminals: Yes

No. of rows: 2

Mounting type: Surface-mount

Factory colour: Grey

Width: 450 mm

Height: 315 mm

Dim: (W x H x D) 450 x 315 x 155 mm

Depth: 155 mm

Content: 1 pc(s)

: Other

: Grey

: 315

: TRUE

: 450 mm

: 155 mm

: 7035

: FALSE

: 95 mm

: 2

: Door

: Plastic

: 28

: IP65

: FALSE

: With notch

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1406139 Spelsberg 73342801 AK 28 Distribution board Surface-mount No. of partitions = 28 No. of rows = 2 Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1406139 Spelsberg 73342801 AK 28 Distribution board Surface-mount No. of partitions = 28 No. of rows = 2 Content 1 pc(s)

Information

Information 1406139 Spelsberg 73342801 AK 28 Distribution board Surface-mount No. of partitions = 28 No. of rows = 2 Content 1 pc(s)

Certificate

Certificate 1406139 Spelsberg 73342801 AK 28 Distribution board Surface-mount No. of partitions = 28 No. of rows = 2 Content 1 pc(s)

Description

Small distributor - Industrial Quality - 2-row, 28 division units, 150 mm distance between bars, integrated ventilation elements to reduce condensation erbil fertilizers, top elastic lead in, with cover and labelling strips, additional double membrane stub and other accessories, protection class II, rated insulation voltage 1000 V AC, rated insulation voltage ui 1500 V DC, halogen-free, VDE-tested, impact strength IK08, screwless PE/N terminal strips with 6 screwable clamping points 2.5 - 16 mm ², 21 / 2 x 14 screwless clamping points 1.5 mm-4 mm². The air ventilation element prevents condensation while maintaining the high protection class IP65. Prevents the condensate is transported by air exchange in the shortest time from the housing. Due to the constant and high air exchange, the air inside always with the ambient air mixing and transports humidity to the outside.

This text is machine translated.
