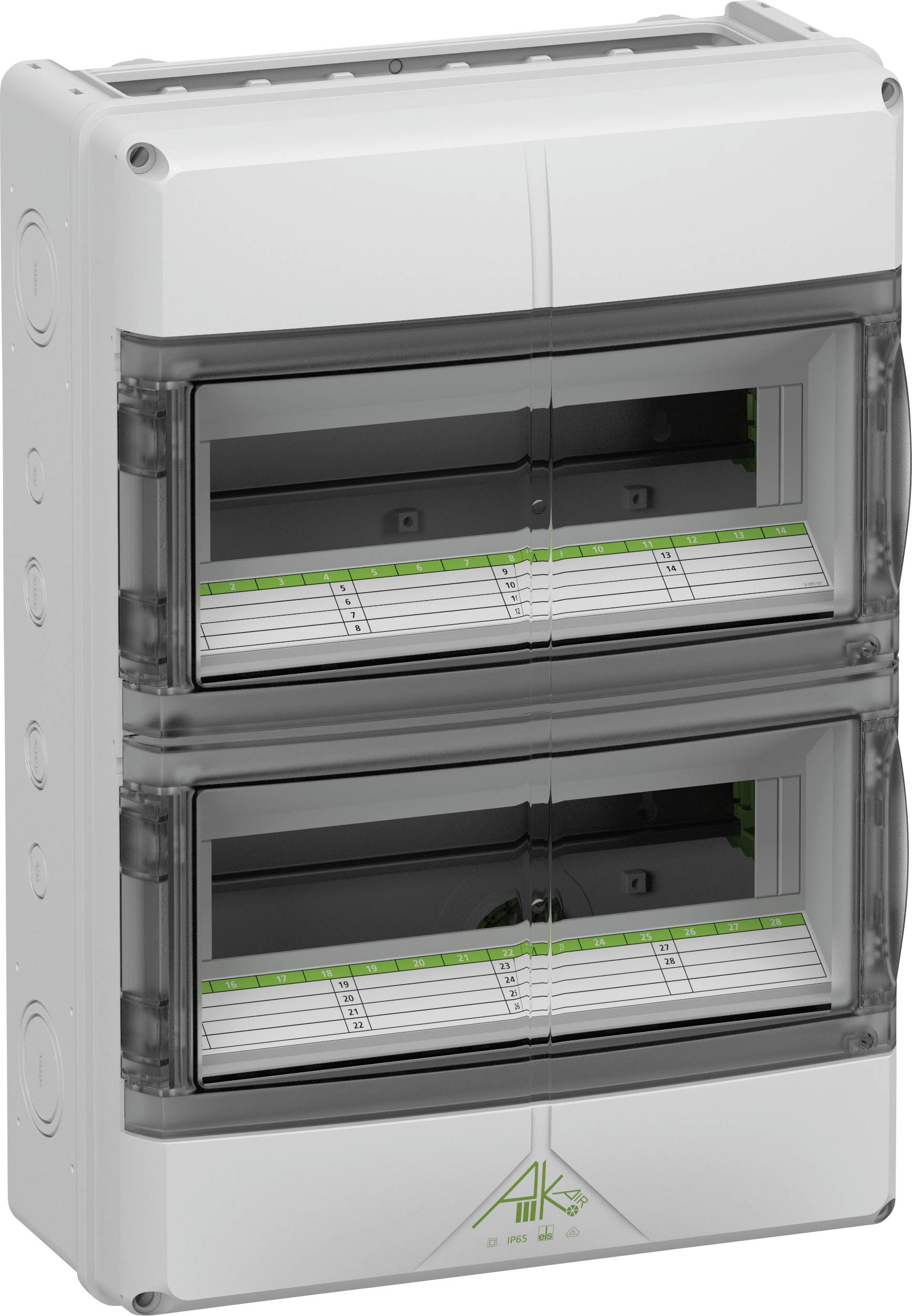

Spelsberg 73352852 AK-F 28 UL Distribution board Surface-mount, Wall No. of partitions = 28 No. of rows = 2 Content 1 pc
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
28
No. of rows
2
Mounting type
Surface-mount
Wall
Width
315 mm
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 2 Piece(s) available
Highlights & Details
SMALL DISTRIBUTOR AK-F 28 UL
- Halogen-free
- UV-resistant
Technical specifications
- Protection system: IP65
- Rated operating voltage AC 400 V
- Min. Ambient temperature: -35 °C
- Ambient temperature 80 °C max.
- Product type
Distribution board
- No. of partitions
28
- No. of rows
2
- Mounting type
Surface-mount
Wall
- Factory colour
Grey
- Width
315 mm
- Height
450 mm
- Dim
(W x H x D) 315 x 450 x 155 mm
- Depth
155 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374206 Spelsberg 73352852 AK-F 28 UL Distribution board Surface-mount, Wall No. of partitions = 28 No. of rows = 2 Content 1 pc
User & Safety Instructions
User & Safety Instructions 3374206 Spelsberg 73352852 AK-F 28 UL Distribution board Surface-mount, Wall No. of partitions = 28 No. of rows = 2 Content 1 pc
Description
Safe - A secure operation is ensured even under harsh industrial ambient conditions thanks to the high degree of protection IP65 and the robust, halogen-free design.
Small distribution box, with protection class IP65, UL Type Rating 3R, 12/12K, flange type, with integrated ventilation elements for reducing condensation water, rated operating voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified by VDE (DIN EN 50-22.2/24 (VDE 0606-1/--24)), UL 60670 & CSA 1 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), UL-EU (EN 62208), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1-1/-7), UL-EU (EN 61439 & EN IEC 61439-2), DLG (ammonia resistance), top and bottom open end faces for mounting different flanges or combining several AK-F enclosures by means of composite flange, for installation in industrial environment and protected outdoor area, 2-row, 28 without PE/N terminal strip, dimensions: 315 x 450 x 155 mm
This text is machine translated.
Small distribution box, with protection class IP65, UL Type Rating 3R, 12/12K, flange type, with integrated ventilation elements for reducing condensation water, rated operating voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified by VDE (DIN EN 50-22.2/24 (VDE 0606-1/--24)), UL 60670 & CSA 1 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), UL-EU (EN 62208), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1-1/-7), UL-EU (EN 61439 & EN IEC 61439-2), DLG (ammonia resistance), top and bottom open end faces for mounting different flanges or combining several AK-F enclosures by means of composite flange, for installation in industrial environment and protected outdoor area, 2-row, 28 without PE/N terminal strip, dimensions: 315 x 450 x 155 mm
