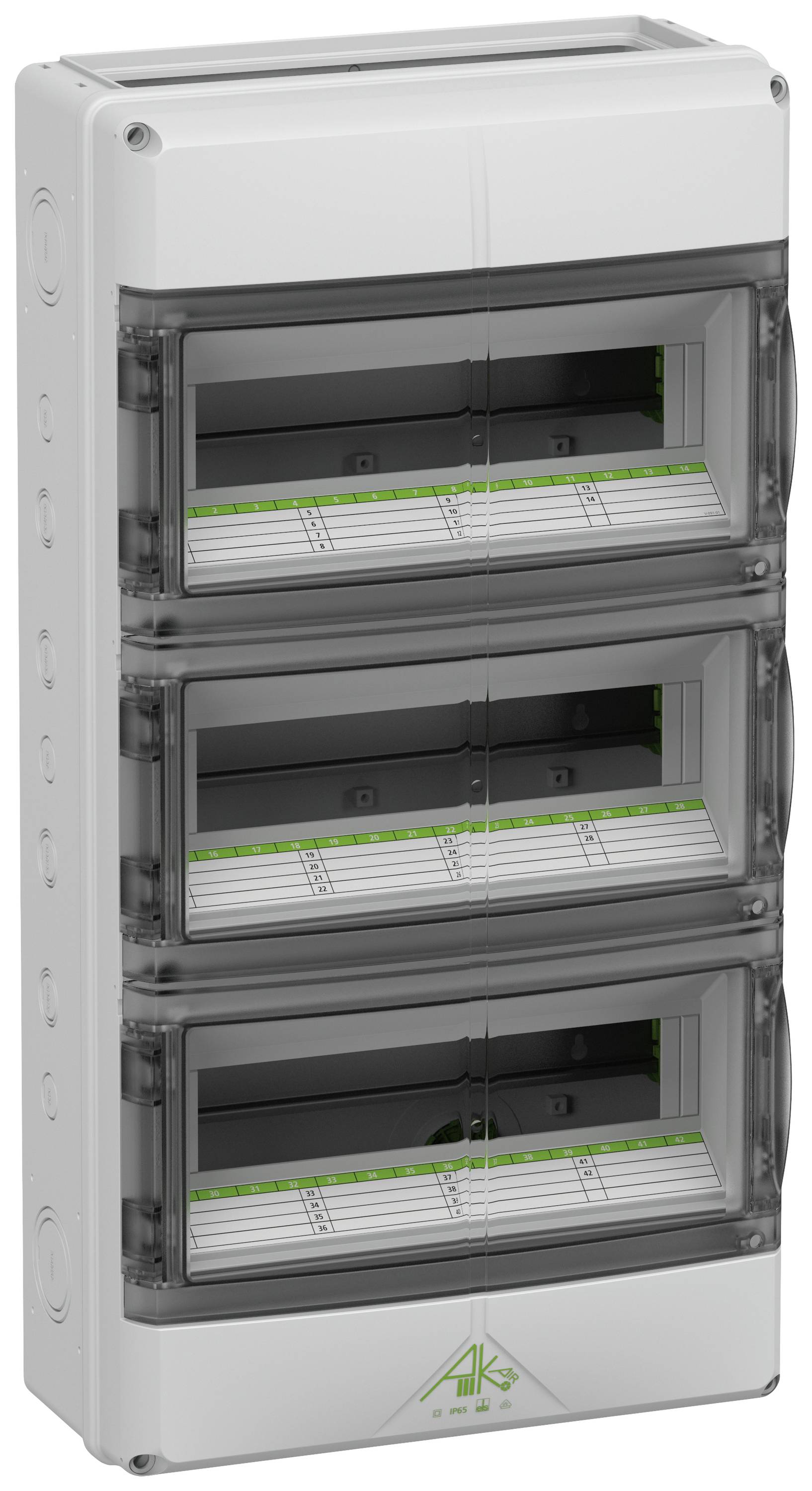

Spelsberg 73354201 AK-F 42 Distribution board No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
42
No. of rows
3
Width
315 mm
Height
600 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65
- Material: Plastic
- Mounting depth: 95 mm
- Internal depth 95 mm
- Cover design: Transparent door, with cut-out
- DIN rail: Yes
- Product type
Distribution board
- No. of partitions
42
- No. of rows
3
- Factory colour
Grey
- Width
315 mm
- Height
600 mm
- Dim
(W x H x D) 315 x 600 x 155 mm
- Depth
155 mm
- Content
1 pc(s)
Other
Grey
315
TRUE
600 mm
155 mm
7035
FALSE
95 mm
3
Door
Plastic
42
IP65
FALSE
With notch
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379661 Spelsberg 73354201 AK-F 42 Distribution board No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379661 Spelsberg 73354201 AK-F 42 Distribution board No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
Description
Small distributor, industrial quality, flange type, with open end faces, for use with different flanges, for the combination of several AK-F distributors with combination flange, 3-row, 42 division units, 150mm rail distance, integrated ventilation elements for reducing condensation water formation, cover and labeling strips, with additional double membrane stub and other accessories, flanges and flange set are to be purchased separately, Screwless PE/N terminal strip with 6 screwable clamping points 2.5-16qmm, 21 / 2 x 14 screwless clamping points 1.5 mm-4qmm
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
