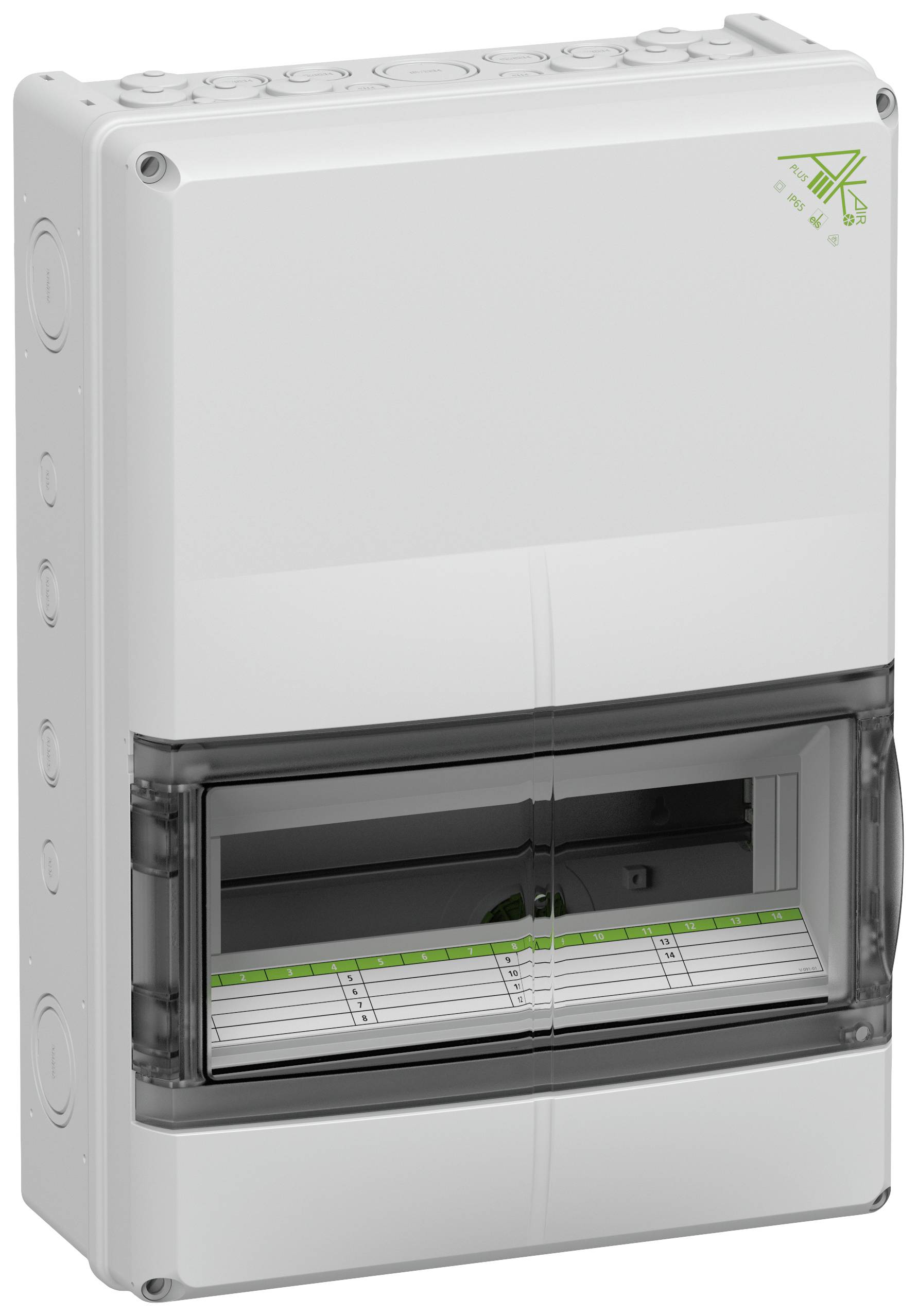

Spelsberg 73361411 AK 14 Plus NT Distribution board No. of partitions = 14 No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
14
No. of rows
1
Width
315 mm
Height
155 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65
- Material: Plastic
- Mounting depth: 95 mm
- Internal depth 95 mm
- Cover design: Transparent door, with cut-out
- DIN rail: Yes
- Product type
Distribution board
- No. of partitions
14
- No. of rows
1
- Factory colour
Grey
- Width
315 mm
- Height
155 mm
- Dim
(W x H x D) 315 x 155 x 450 mm
- Depth
450 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379663 Spelsberg 73361411 AK 14 Plus NT Distribution board No. of partitions = 14 No. of rows = 1 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379663 Spelsberg 73361411 AK 14 Plus NT Distribution board No. of partitions = 14 No. of rows = 1 Content 1 pc(s)
Description
Small distribution board, industrial quality 1-row, 14 division units, integrated ventilation elements for reducing condensation water formation, elastic inserts at the top, cover and labeling strips, with additional double membrane stub and other accessories, incl. WAGO terminal blocks TOPJOB(R) S with push-in connections for mounting in the additional connection area, 1x feed 41A, 5-pin L1 / L2 / L3 / N / PE, 2-conductor terminals connectable conductors 0.5-10qmm, 1x tap-off terminal block pre-assembled with neutral conductor isolating terminals for: 1x three-phase outlet, via NT/L1/L2/L3/PE terminal block conductors that can be connected 0.5-6qmm 9x AC outlet via NT/L/PE terminal blocks 0.5-4qmm conductors that can be connected to the installation floor
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
