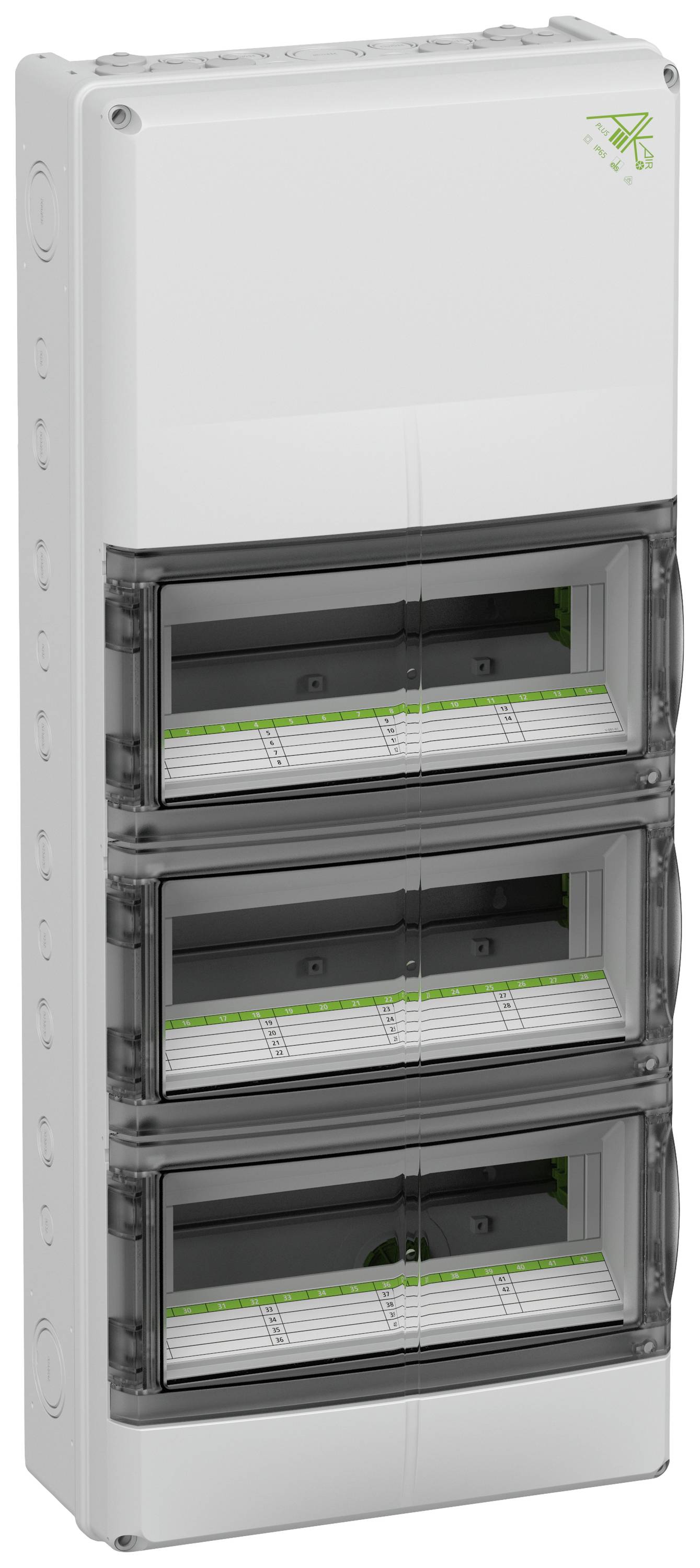

Spelsberg 73364211 AK 42 Plus NT Distribution board No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
42
No. of rows
3
Width
315 mm
Height
750 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65
- Material: Plastic
- Mounting depth: 95 mm
- Internal depth 95 mm
- Cover design: Transparent door, with cut-out
- DIN rail: Yes
- Product type
Distribution board
- No. of partitions
42
- No. of rows
3
- Factory colour
Grey
- Width
315 mm
- Height
750 mm
- Dim
(W x H x D) 315 x 750 x 155 mm
- Depth
155 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379665 Spelsberg 73364211 AK 42 Plus NT Distribution board No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379665 Spelsberg 73364211 AK 42 Plus NT Distribution board No. of partitions = 42 No. of rows = 3 Content 1 pc(s)
Description
Small distributor, industrial quality, 3-row, 42 division units, 150mm track distance, Integrated ventilation elements for reducing condensation water formation, elastic inserts at the top, cover and labeling strips, with additional double membrane stub and other accessories, including WAGO terminal blocks TOPJOB(R) S with push-in connections for installation in the additional connection compartment, 1x feed 76A, 5-pin L1 / L2 / L3 / n / PE adjustable, 3-conductor terminals connectable conductors 0.5-16qmm, 2x tap-off terminal block pre-assembled with neutral conductor isolating terminals for: 1x three-phase outlet, via NT/L1/L2/L3/PE terminal blocks, conductors that can be connected 0.5-6qmm 9x alternating current outlet via NT/L/PE snchlable conductors 0.5-4qmm
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
