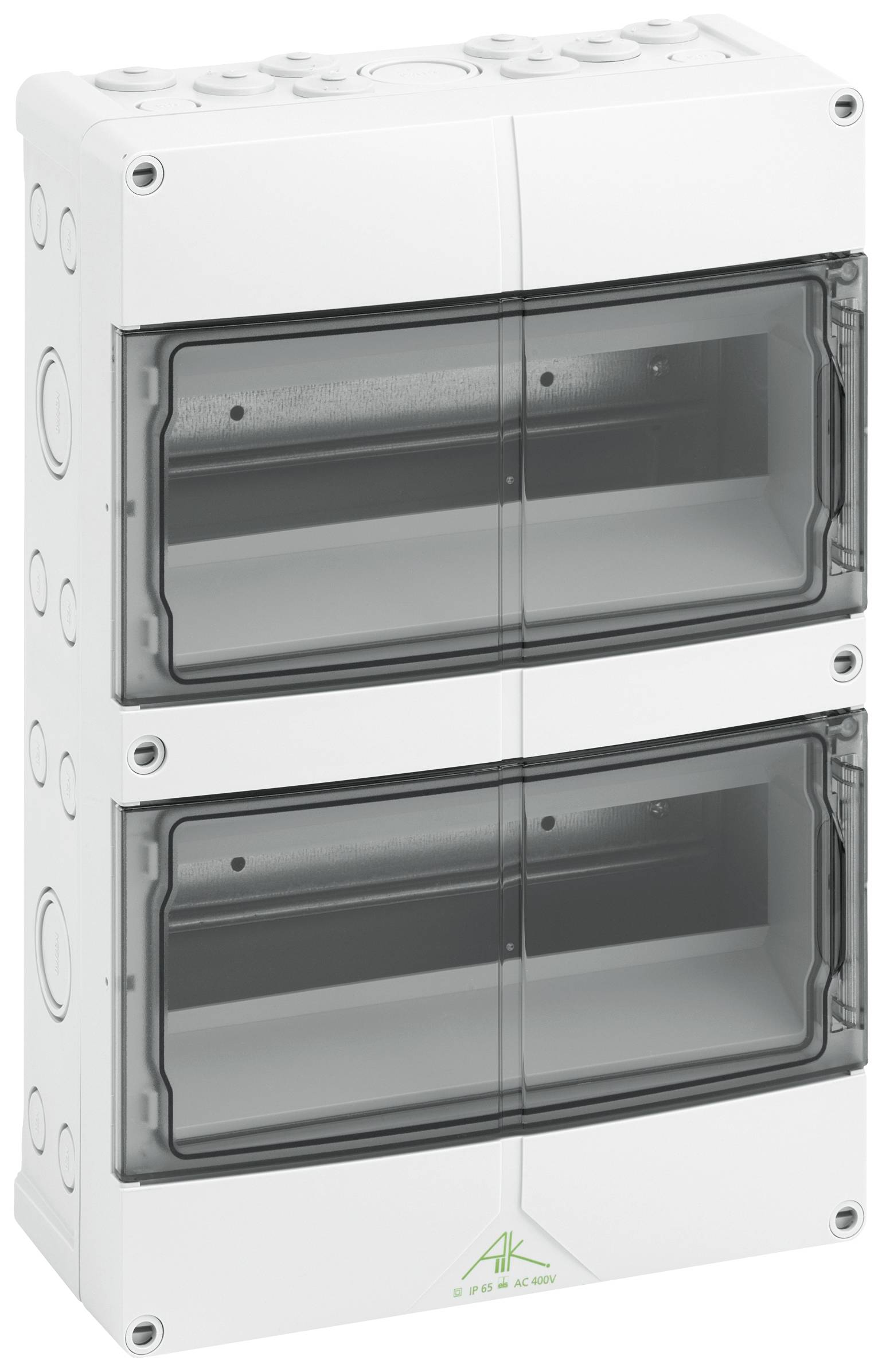

Spelsberg 73642401 AKi 24 Distribution board Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of partitions
24
No. of rows
2
Mounting type
Surface-mount
Width
250 mm
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Small distributor AKi 24
- IP65 rating
- 24 division units
- Protection class: IK08
Technical specifications
- Can be used from -35°C to 80°C
- Product type
Distribution board
- No. of partitions
24
- with PE and N terminals
Yes
- No. of rows
2
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
250 mm
- Height
370 mm
- Dim
(W x H x D) 250 x 370 x 122 mm
- Depth
122 mm
- Content
1 pc(s)
- Weight
0
Other
Grey
250
TRUE
370 mm
122 mm
7035
FALSE
2
Door
Plastic
24
IP65
FALSE
Closed
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1590504 Spelsberg 73642401 AKi 24 Distribution board Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1590504 Spelsberg 73642401 AKi 24 Distribution board Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(s)
Description
The installation-friendly-PE/N terminal strip, elastic inserts on the upper side and fast installation of the distributor.
Safe - thanks to the high degree of protection IP65 and the robust, halogen-free design is also in harsh industrial conditions to ensure a safe operation.
Design:
Small distributor - Industrial Quality
N-PE / N terminal, each with 2 clamping points 16 mm²
- 14 clamping points 6 mm²
- Top 8 elastic inserts
- Cover and labelling strips
-Insulating plugs, additional double membrane supports
This text is machine translated.
Safe - thanks to the high degree of protection IP65 and the robust, halogen-free design is also in harsh industrial conditions to ensure a safe operation.
Design:
Small distributor - Industrial Quality
N-PE / N terminal, each with 2 clamping points 16 mm²
- 14 clamping points 6 mm²
- Top 8 elastic inserts
- Cover and labelling strips
-Insulating plugs, additional double membrane supports
This text is machine translated.
Features
- Halogen-free
- Protection class 2
- 400 V AC-ui rated insulation voltage.
Hints
Safety-relevant component - installation only by skilled workers
