Spelsberg 74910501 ZKi 100-f Meter box Structure Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter box
Mounting type
Structure
Width
250 mm
Height
520 mm
Depth
137 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65Material: PlasticInstallation depth: 91 mm
- Product type
Meter box
- Mounting type
Structure
- Width
250 mm
- Height
520 mm
- Dim
(W x H x D) 250 x 520 x 137 mm
- Depth
137 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379409 Spelsberg 74910501 ZKi 100-f Meter box Structure Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379409 Spelsberg 74910501 ZKi 100-f Meter box Structure Content 1 pc(s)
Description

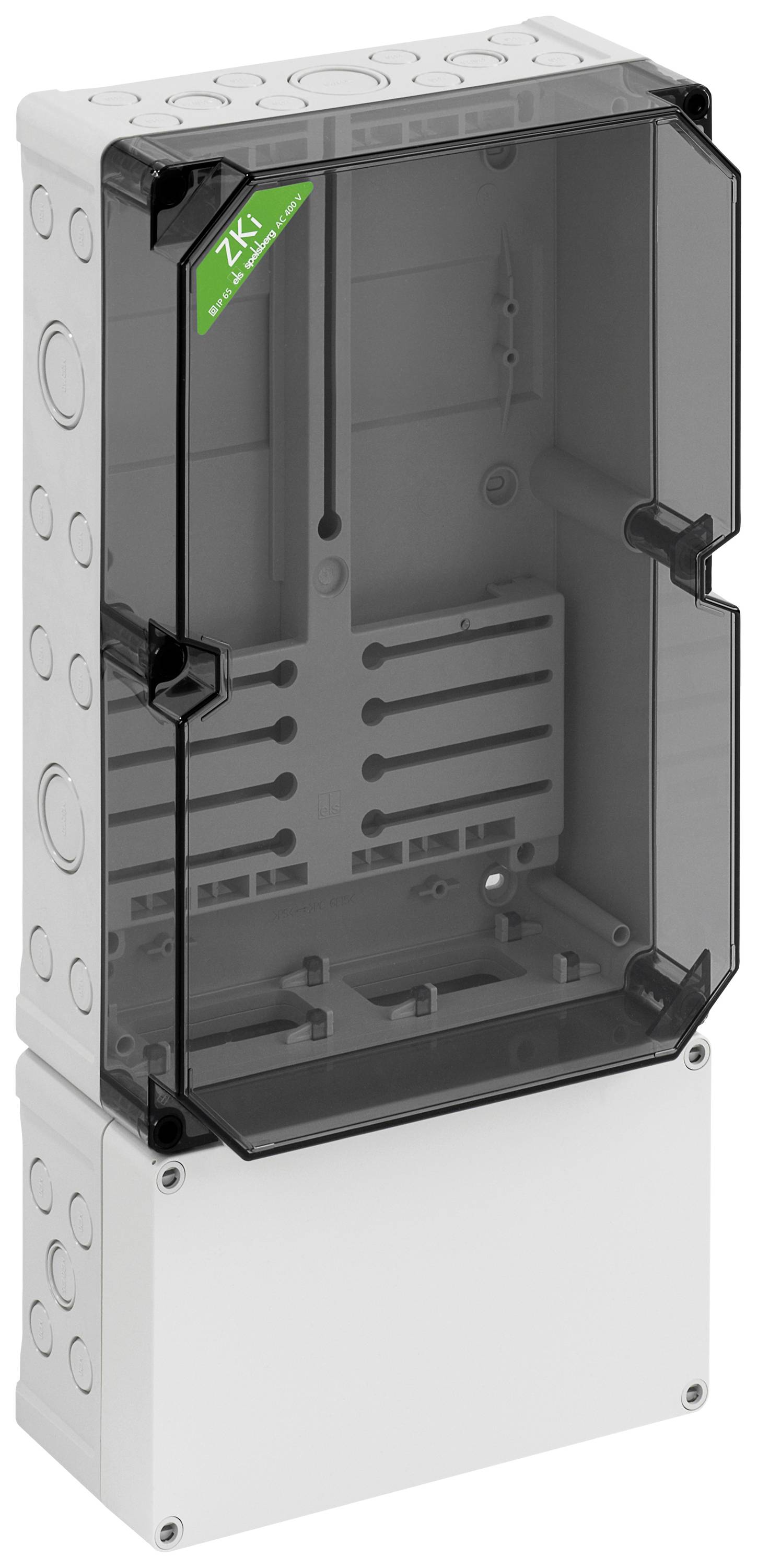

Meter housing, industrial quality, with transparent cover, sealable, standard sealable, with mounted meter cross and meter mounting screws, additional connection space at the bottom 150mm with 35mm standard rail, with double membrane brackets, and insulation plugs, suitable for round control receivers according to DIN 43861-2, for meters with three-point mounting and a depth of max. 80mm
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
