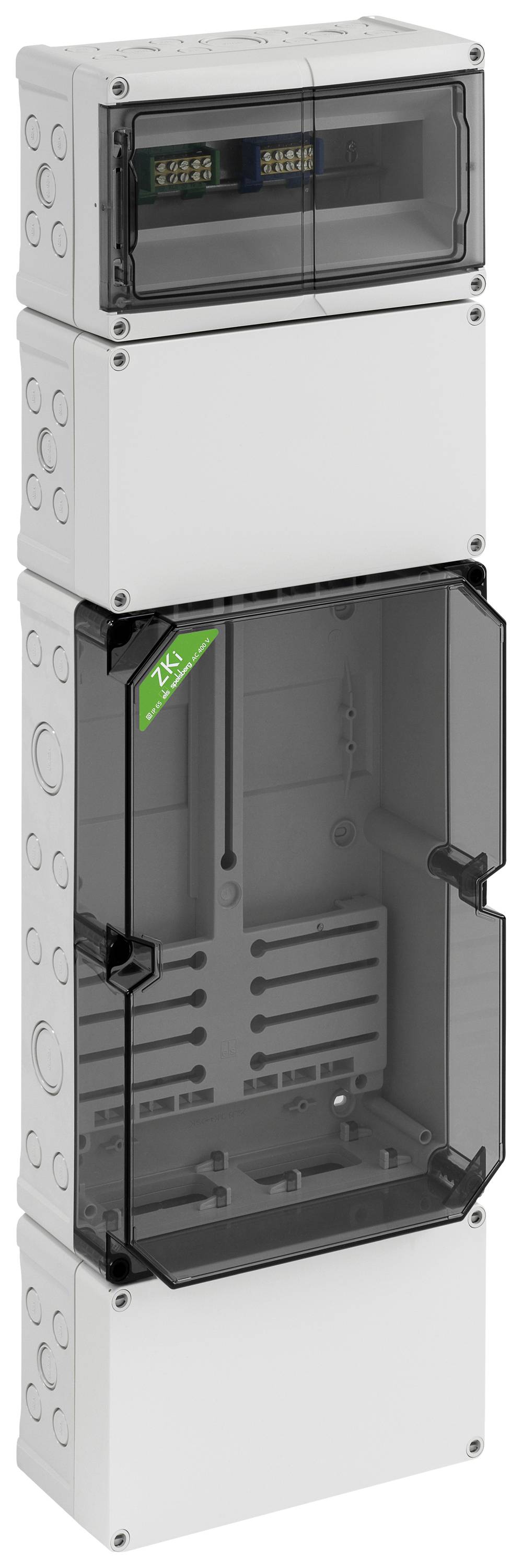

Spelsberg 74912501 ZKi 120-f Meter box Structure Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter box
Mounting type
Structure
Width
250 mm
Height
820 mm
Depth
137 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65Material: PlasticInstallation depth: 91 mmWith mounting rail: Yes
- Product type
Meter box
- with PE and N terminals
Yes
- Mounting type
Structure
- Width
250 mm
- Height
820 mm
- Dim
(W x H x D) 250 x 820 x 137 mm
- Depth
137 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379414 Spelsberg 74912501 ZKi 120-f Meter box Structure Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379414 Spelsberg 74912501 ZKi 120-f Meter box Structure Content 1 pc(s)
Description
Meter housing, industrial quality, with transparent cover, sealable, standard sealable, with mounted meter cross and meter mounting screws, additional connection space at bottom 150mm with 35mm standard rail, standard sealable consumer room at top, with 35mm standard rail and PE/N double terminals, additional room with 35mm standard rail, with double membrane stub, sealing and insulation plugs, suitable for round control receivers according to DIN 43861-2, For counters with three-point mounting and a depth of max. 80mm
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
