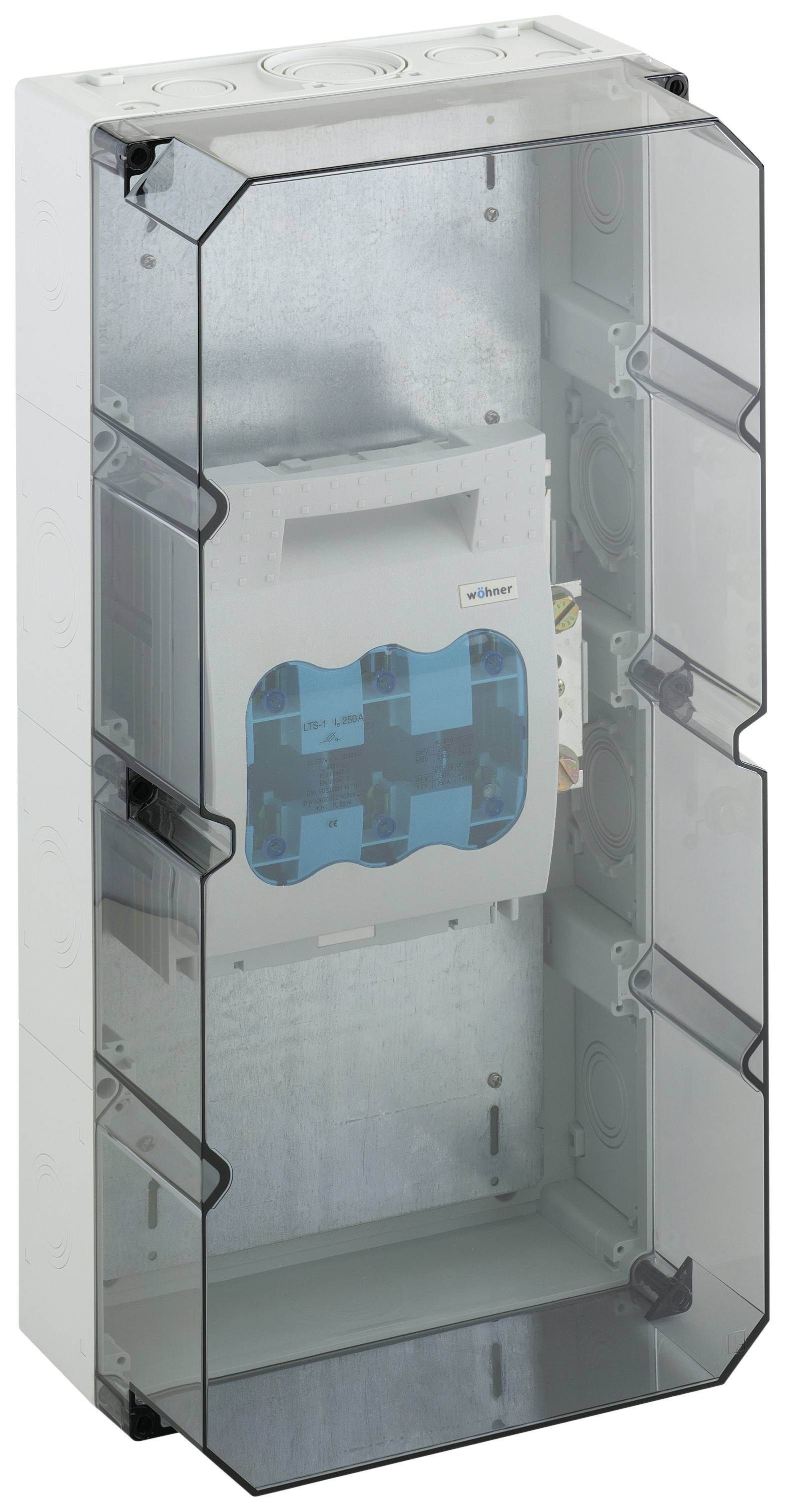

Spelsberg 78641101 AKi-T 411 Switchboard cabinet
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Width
300 mm
Height
600 mm
Depth
210 mm
with PE and N terminals
Yes
Datasheet (PDF)
Technical specifications
- Design: With fuse switch disconnectorsProtection system: IP65Number of poles: 3Rated operating current Ie: 224 A.Max. Rated operating voltage Ue 690 V/ACFuse size: NH1
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Width
300 mm
- Height
600 mm
- Dim
(W x H x D) 300 x 600 x 210 mm
- Depth
210 mm
- Content
1 pc(s)
690 V
3
IP65
690 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379112 Spelsberg 78641101 AKi-T 411 Switchboard cabinet
User & Safety Instructions
User & Safety Instructions 2379112 Spelsberg 78641101 AKi-T 411 Switchboard cabinet
Description
NH-fuse switch disconnectors housing, industrial quality, IP65 (using corresponding cable inlets), 1 x NH 1-fuse switch disconnectors, mounted on mounting plate, rated current 224 A, screw terminal M10, N terminal M10, With IP54 mounting socket, with insulation plug, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
