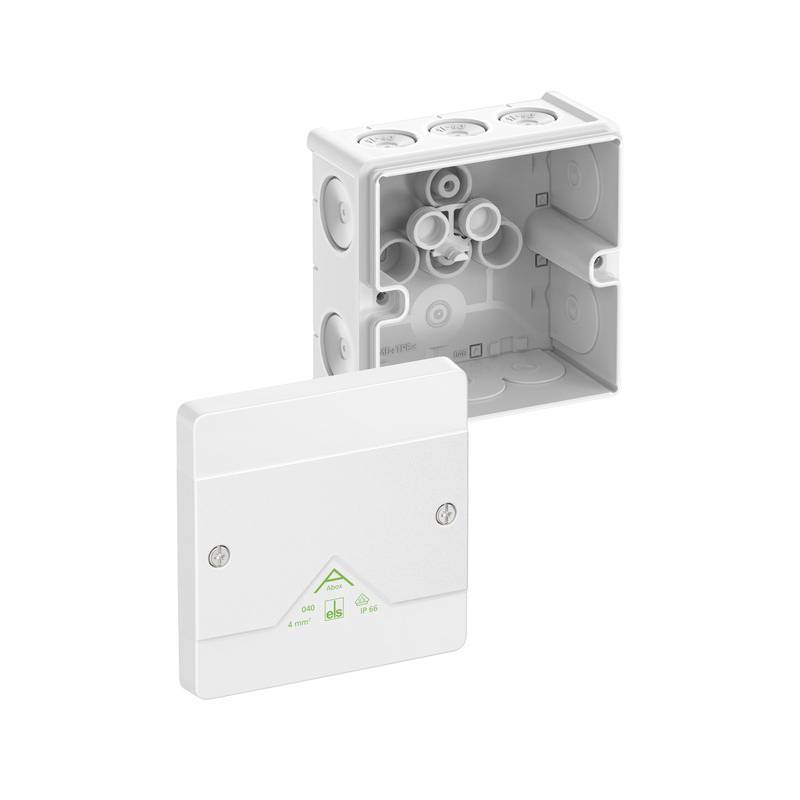

Spelsberg 804100EP Junction box (L x W x H) 102 x 102 x 57 mm White IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
5% = € 0.55
€ 10.37
5
7% = € 0.76
€ 10.16
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details
Branch box, protection class IP66, max. Conductor cross-section 4², IK07 impact strength, protection class II, UI 1000V AC, UI 1000V DC, DLG, VDE, halogen-free

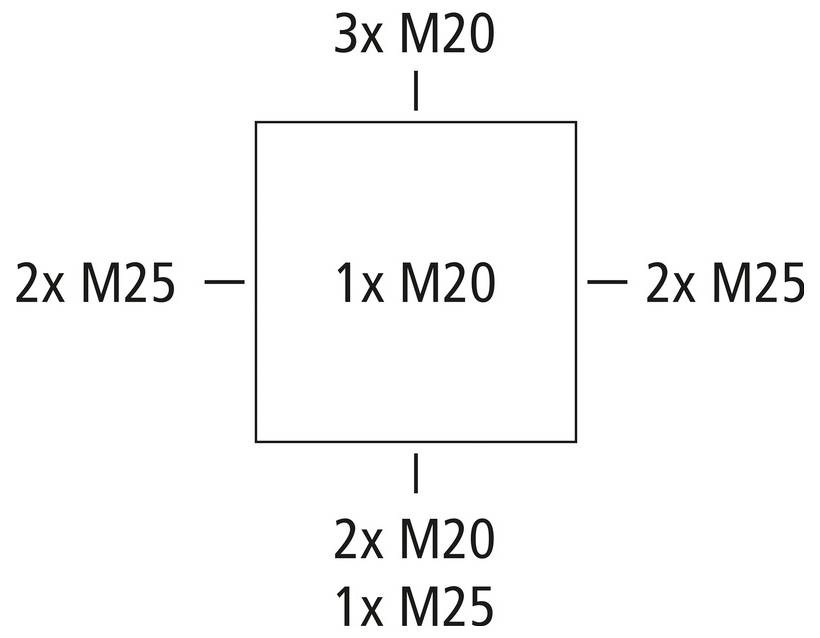

- Junction box, with individual printing, configurable over spelsberg.de/easyprint, with IP66 rating, nominal diameter 4 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft introduction membranes, M20/M25, Sealing area 4 - 21 mm, (1 at the back, 10 on the sides), interior fixing points, for standard installations indoors and in protected outdoor areas, white, Ui = 1000 V AC, without terminal dimensions: 102 x 102 x 57 mm
- This text is machine translated.
Technical specifications
- Product type
Junction box
- Factory colour
White
IP66
- Dim
(L x W x H) 102 x 102 x 57 mm
- Content
1 pc(s)
- Width
102 mm
- Height
57 mm
- Length
102 mm
Documents & Downloads
Datasheet
Datasheet 3628591 Spelsberg 804100EP Junction box (L x W x H) 102 x 102 x 57 mm White IP66 1 pc(s)
Datasheet 3628591 Spelsberg 804100EP Junction box (L x W x H) 102 x 102 x 57 mm White IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3628591 Spelsberg 804100EP Junction box (L x W x H) 102 x 102 x 57 mm White IP66 1 pc(s)
