Spelsberg 80444001 Junction box (L x W x H) 127 x 127 x 70 mm Grey IP66 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
- Dim
(L x W x H) 127 x 127 x 70 mm
- Content
1 pc(s)
- Width
127 mm
- Height
70 mm
- Length
127 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062275 Spelsberg 80444001 Junction box (L x W x H) 127 x 127 x 70 mm Grey IP66 1 pc(s)
Description

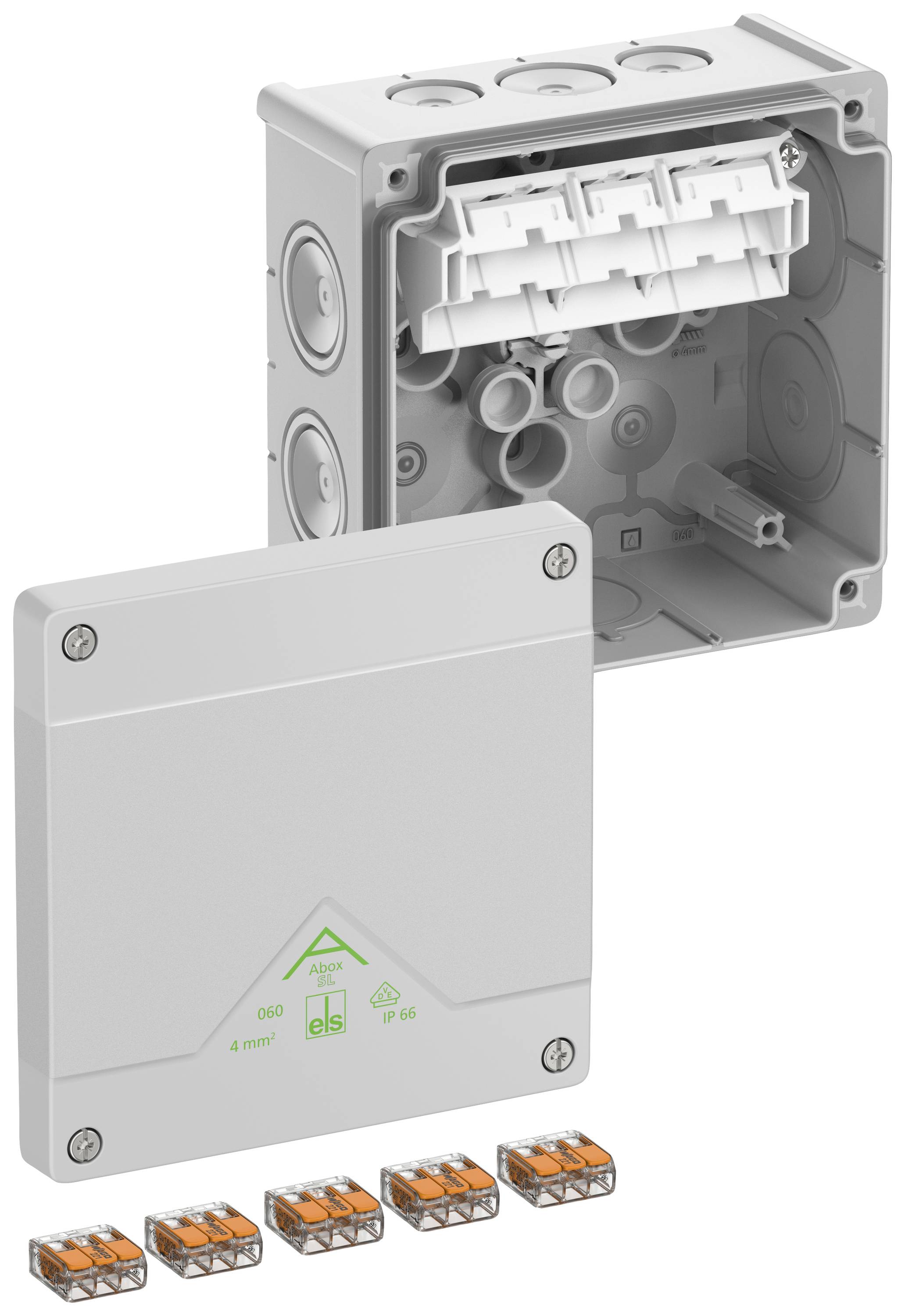

Junction box, with IP66 protection, nominal diameter 4 mm², UI=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20/M25/M32, sealing range 4 - 28 mm, (2 rear-side, 8 lateral), inner fixing positions, with screwless clamps, for standard indoor and protected outdoor installations, gray, In=32 A, with 5 high-lying, screwless 3-conductor terminals WAGO 221-413 - 4 mm², clamping cross-sections per pole: 3 x 0.2 to 4 mm² rigid Cu and 3 x 0.14 to 4 mm² flexible Cu.
