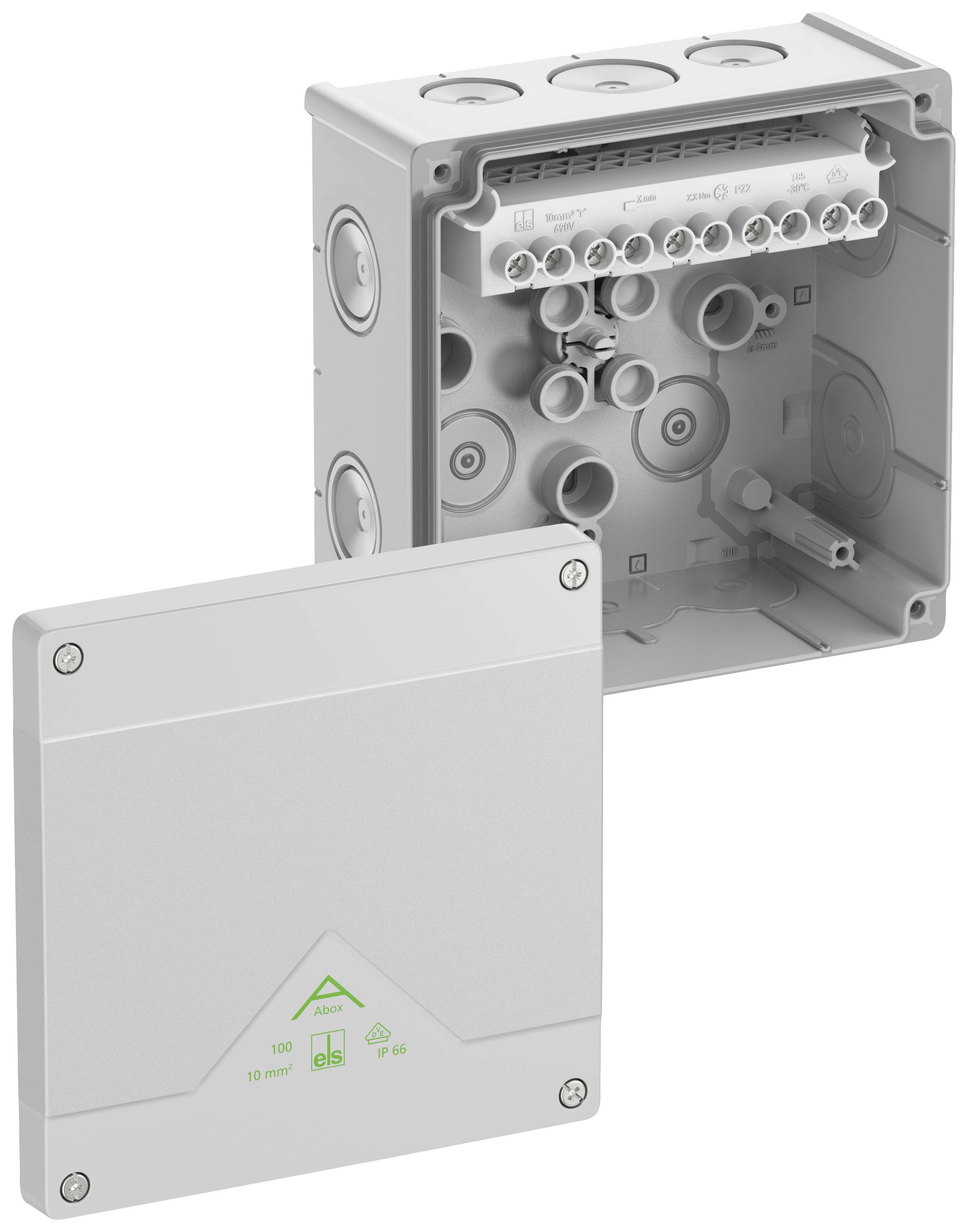

Spelsberg 81042001 Junction box (L x W x H) 152 x 152 x 80 mm Grey IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.87
€ 18.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
- Dim
(L x W x H) 152 x 152 x 80 mm
- Content
1 pc(s)
- Width
152 mm
- Height
80 mm
- Length
152 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3062223 Spelsberg 81042001 Junction box (L x W x H) 152 x 152 x 80 mm Grey IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062223 Spelsberg 81042001 Junction box (L x W x H) 152 x 152 x 80 mm Grey IP66 1 pc(s)
Description
Junction box, with IP66 protection, nominal diameter 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), self-sealing, soft introduction membranes, M20/M25/M32, Sealing area 8 - 28 mm, (2 at the back, 10 on the sides), interior fitting, for standard installations indoors and in protected outdoor areas, gray, Ui=690 V AC, In=57 A, with elevated screw terminal, 5-pole - 10², clamping cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm² rigid/flexible copper with wire-end sleeve.
