Spelsberg 81044001 Junction box (L x W x H) 182 x 182 x 90 mm Grey IP55, IP66 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP55
IP66
- Dim
(L x W x H) 182 x 182 x 90 mm
- Content
1 pc(s)
- Width
182 mm
- Height
90 mm
- Length
182 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062277 Spelsberg 81044001 Junction box (L x W x H) 182 x 182 x 90 mm Grey IP55, IP66 1 pc(s)
Description

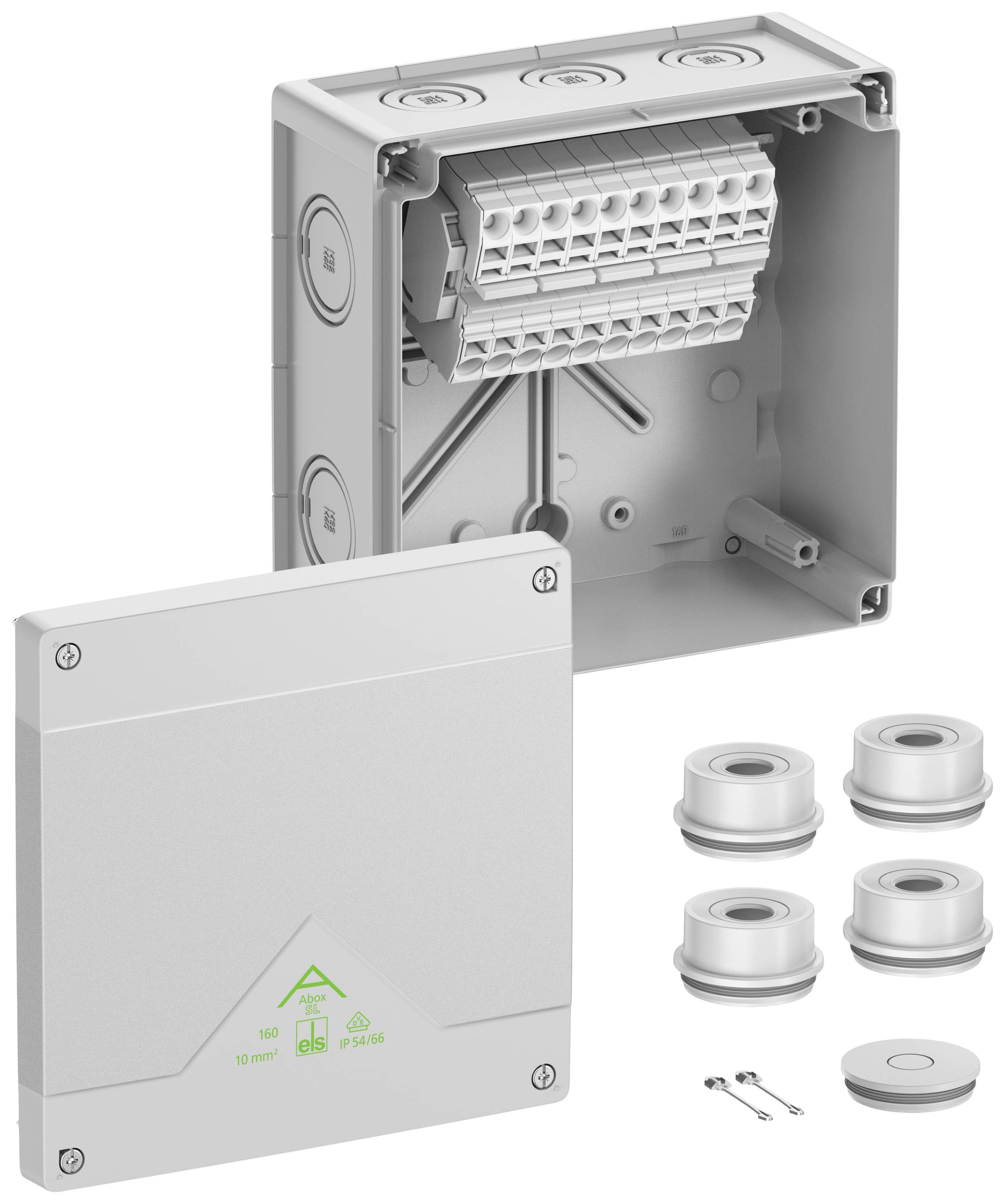

Junction box, with protection degree IP55/IP66, nominal cross-section 10 mm², UI=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), impact membranes, M20/M32/M40, (2 on the back, 10 laterally), inside fixing points, with screw less terminals, for standard installations in the interior and protected outdoor area, gray, In=57 A, with high lying screwless clamp WAGO 2010-1201, 5-pin, max. Nominal cross-section according to DIN EN 60998: 10 mm², clamping cross-sections per pole: 4 x 0.5 to 16 mm² rigid / flexible Cu.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 mounting socket IP55 M40 sealing range 17 - 30 mm
- 1 sealing plugs IP55 M40
- Cover retainer
