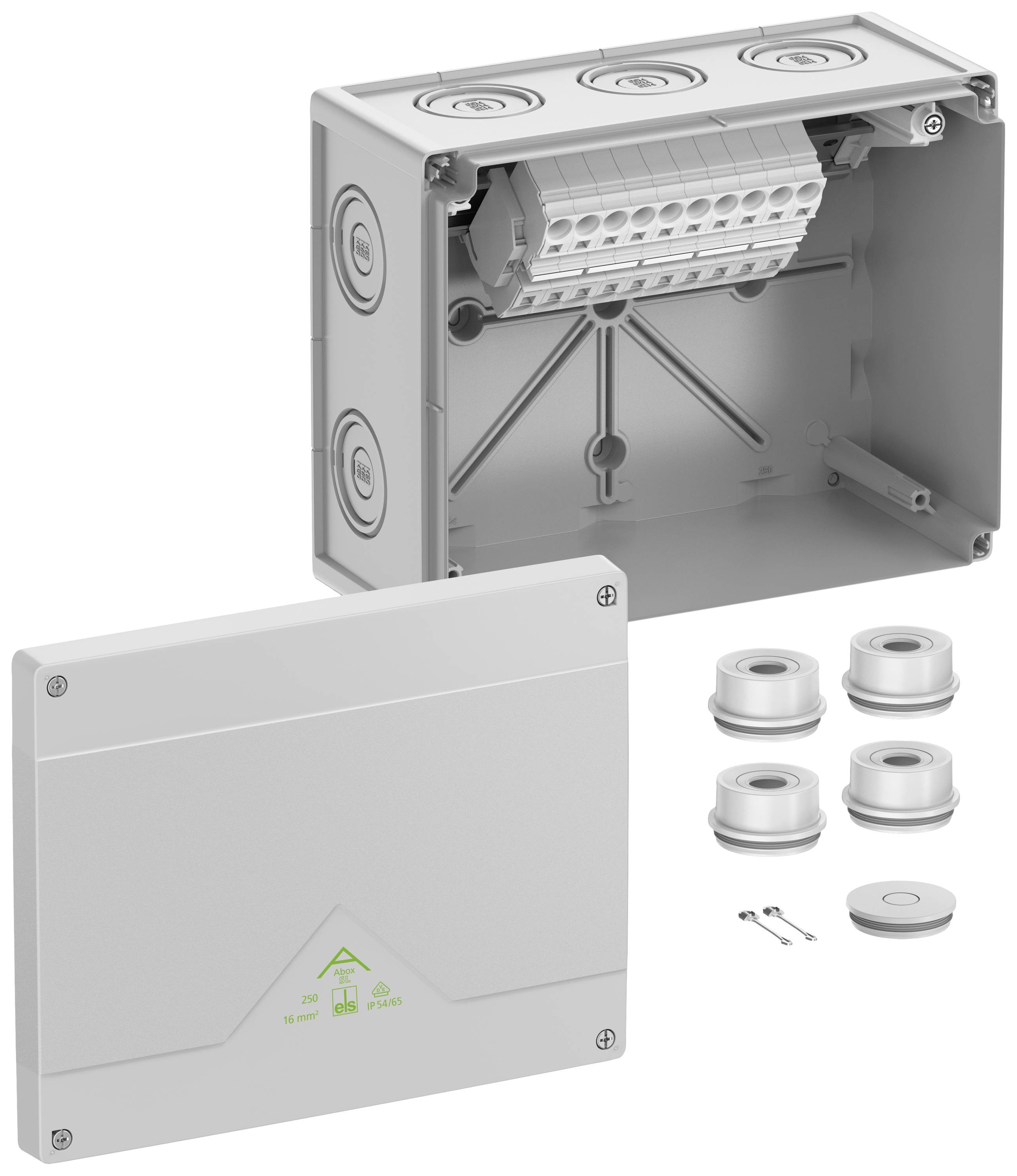

Spelsberg 81644001 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP55, IP66 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP55
IP66
- Dim
(L x W x H) 202 x 252 x 120 mm
- Content
1 pc(s)
- Width
252 mm
- Height
120 mm
- Length
202 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062278 Spelsberg 81644001 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP55, IP66 1 pc(s)
Description
Junction box, with protection degree IP55/IP66, nominal cross-section 16 mm², UI=690 V AC, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22)), DLG (ammonia resistance), impact membranes, M20/M25/M32/M40/M50, (4 on the back, 10 laterally), inside fixing points, with screw less terminals, for standard installations in the interior and protected outdoor area, gray, In=76 A, with high lying, screwless clamp WAGO 2016-1201, 5-pin, max. Nominal cross-section according to DIN EN 60998:16 mm², clamping cross-sections per pole: 4 x 0.5 to 16 mm², rigid Cu, 4 x 0.5 to 25 mm² flexible Cu.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 mounting socket IP55 M40 sealing range 17 - 30 mm
- 1 sealing plugs IP55 M40
- Cover retainer
