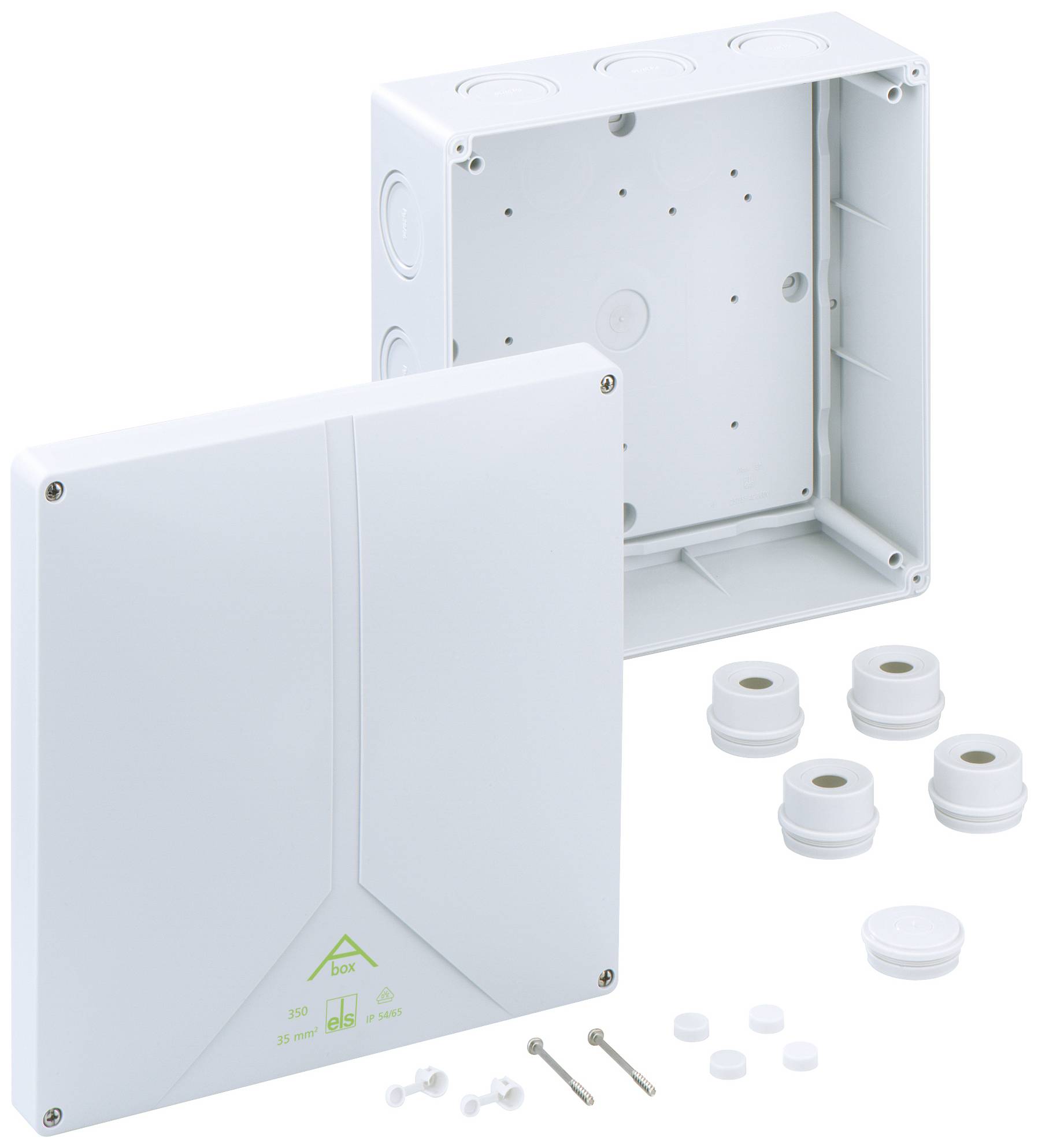

Spelsberg 83591001 Joint box (L x W x H) 250 x 250 x 115 mm Grey IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Wall/ceiling mounting
- Rated insulation voltage UI: 690 V.
- Max. Conductor cross-section 35 mm²
- Operating temperature -25 °C - +40 °C
- Number of introductions: 14
- Pouring: Yes
- Product type
Joint box
- Factory colour
Grey
IP65
- Dim
(L x W x H) 250 x 250 x 115 mm
- Type
rectangular; untreated
- Features
Halogen-free
Sealable
- Content
1 pc(s)
- Material
Plastic
- Width
250 mm
- Height
115 mm
- Length
250 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2378508 Spelsberg 83591001 Joint box (L x W x H) 250 x 250 x 115 mm Grey IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2378508 Spelsberg 83591001 Joint box (L x W x H) 250 x 250 x 115 mm Grey IP65 1 pc(s)
Description
Junction box according to DIN EN 60670 (VDE 0606), UI=690V, with IP54 mounting socket, M40, sealing range 17-30mm, With M40 sealing plug, with sealing set, gray, without clamps
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
