Spelsberg 86228201 Junction box (L x W x H) 115 x 93 x 115 mm Orange IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Wall/ceiling mountingRated insulation voltage UI: 450 V.Max. Conductor cross-section: 6 mm²Operating temperature -25 °C - +40 °CNumber of Introductions: 2Weather-resistant: Yes
- Product type
Junction box
- Factory colour
Orange
IP66
- Dim
(L x W x H) 115 x 93 x 115 mm
- Features
Halogen-free
- Content
1 pc(s)
- Material
Duroplast
Polyurethane
- Width
93 mm
- Height
115 mm
- Length
115 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2568808 Spelsberg 86228201 Junction box (L x W x H) 115 x 93 x 115 mm Orange IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2568808 Spelsberg 86228201 Junction box (L x W x H) 115 x 93 x 115 mm Orange IP66 1 pc(s)
Description
Cable junction box, with protection class IP66, UI=450V AC, certified according to VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), internal thread, M32, (2 lateral), external mounting points, With electrical function retention E30 according to DIN 4102 part 12, with screwless terminal blocks WAGO top jobs, housing made of halogen-free special duroplast, orange, connection box 5-pin, terminal capacity per pole 2 x 0.5-6 qmm Dimensions: 115 x 115 x 93 mm.
This text is machine translated.
This text is machine translated.

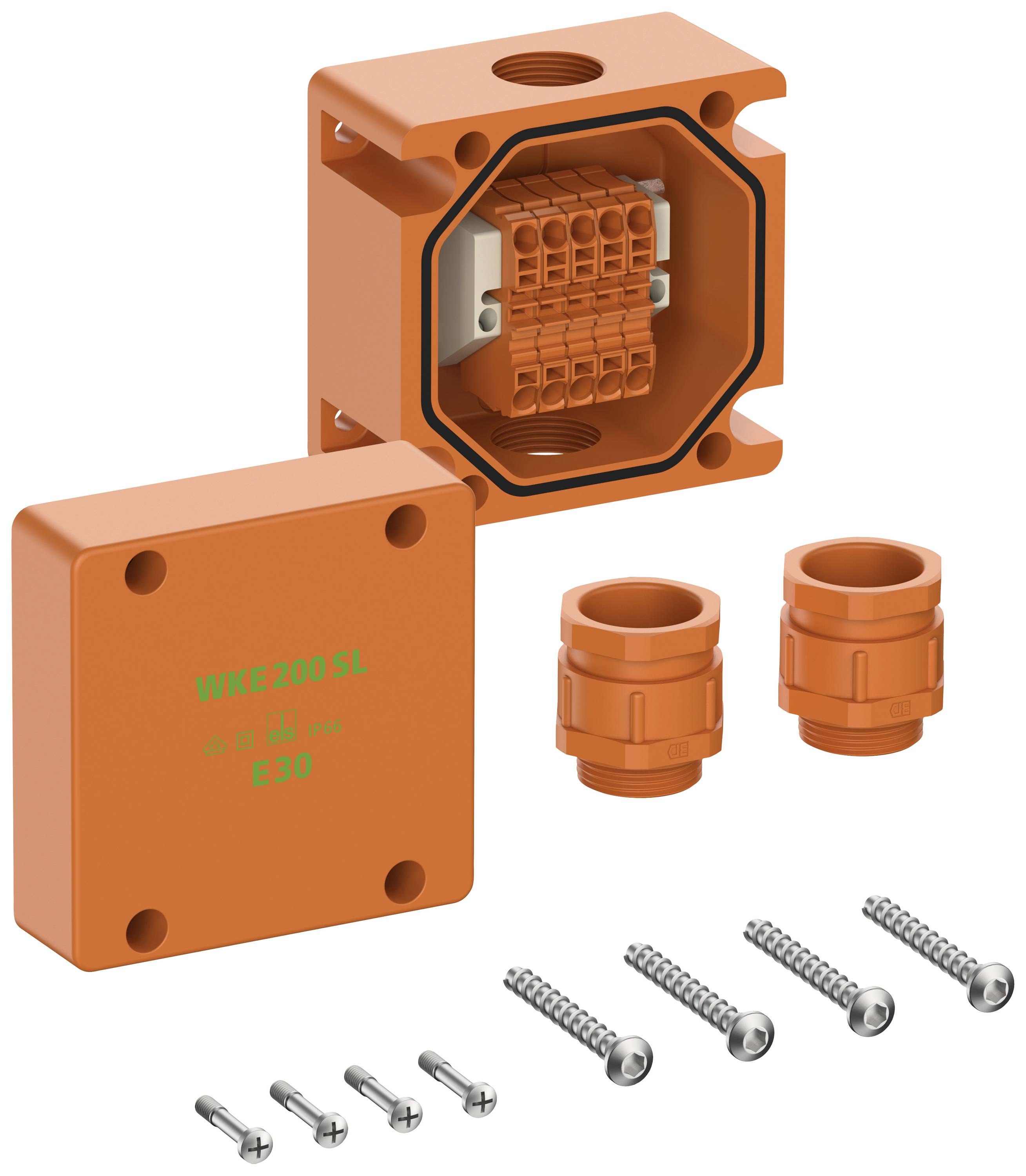

Scope of delivery
- 2 cable glands M32, sealing range 17 - 26 mm, dowel set ø 6 mm
