Spelsberg 86240501 Junction box (L x W x H) 200 x 200 x 110 mm Orange IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Wall/ceiling mounting
- Rated insulation voltage UI: 450 V.
- Max. Conductor cross-section 1.5 mm²
- Operating temperature -25 °C - +40 °C
- Number of introductions: 4
- Weather-resistant: Yes
- Product type
Junction box
- Factory colour
Orange
IP66
- Dim
(L x W x H) 200 x 200 x 110 mm
- Type
stackable; square; untreated
- Features
Halogen-free
- Content
1 pc(s)
- Material
Plastic
- Width
200 mm
- Height
110 mm
- Length
200 mm
- Wireless charging
No
Wall-/ceiling mounting
Orange
200
TRUE
110 mm
Square
Untreated
450 V
200 m
-25-40 °C
Plastic
FALSE
IP66
None
None
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2378522 Spelsberg 86240501 Junction box (L x W x H) 200 x 200 x 110 mm Orange IP66 1 pc(s)
Datasheet 2378522 Spelsberg 86240501 Junction box (L x W x H) 200 x 200 x 110 mm Orange IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2378522 Spelsberg 86240501 Junction box (L x W x H) 200 x 200 x 110 mm Orange IP66 1 pc(s)
Description

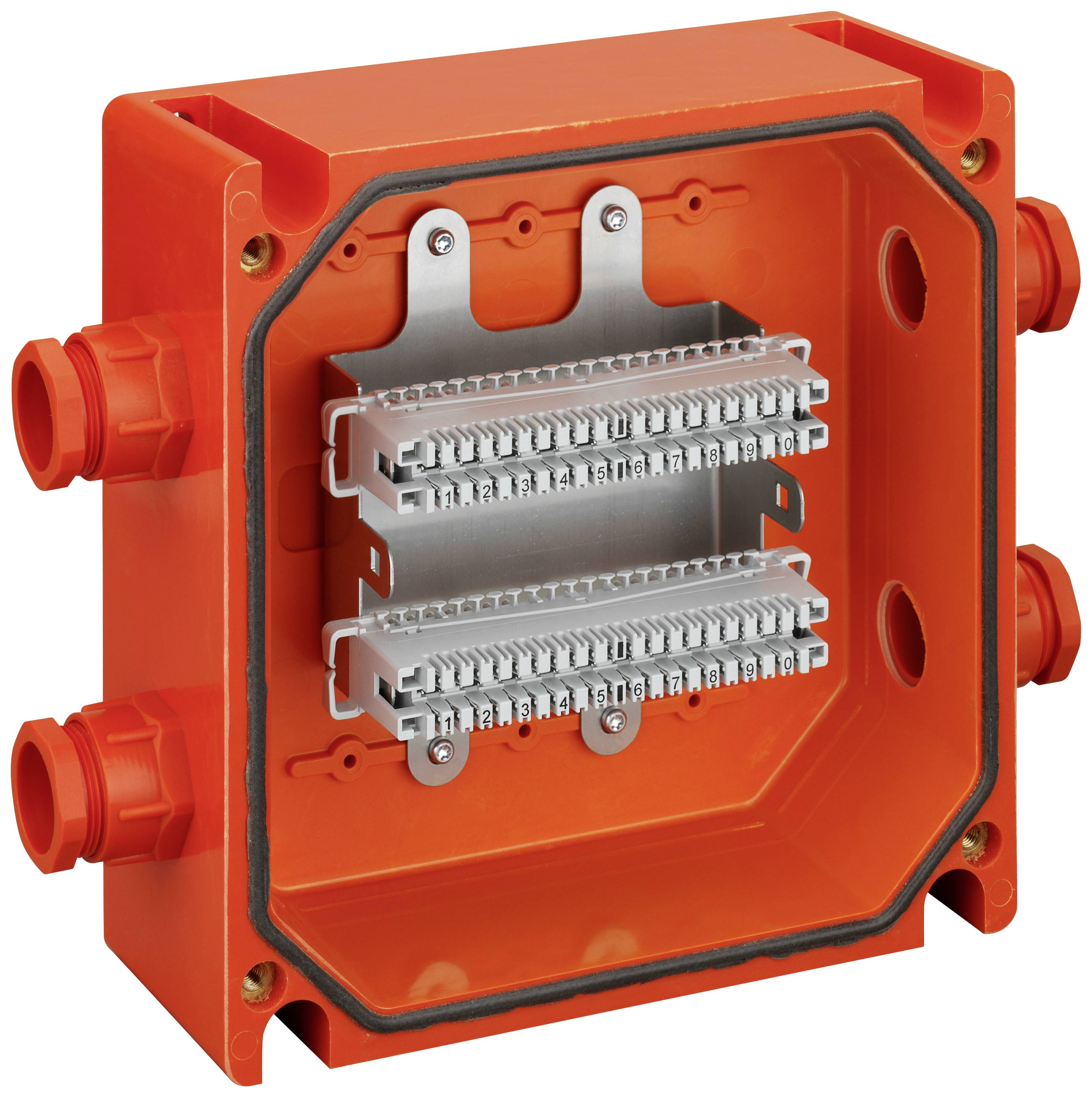

Cable feeder and connection box with time-saving (free of solder, screw and wire-stripping) connection technology for cables with functional retention according to DIN 4102 Part 12-tested by the MPA Dresden, connection box equipped with two LSA-Plus connection strips, each for 10 double wires (2 x 10 DA), The LSA-Plus contacts are suitable for solid conductors with a diameter of 0.4-0.8mm and an external insulation diameter of 0.7-1.6mm.
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
