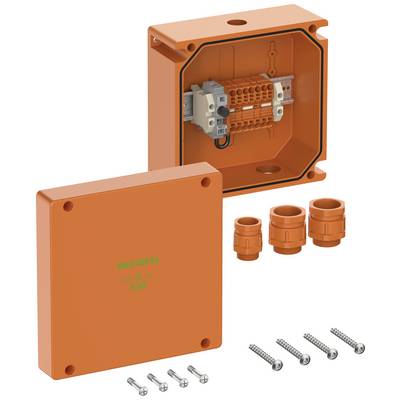

Spelsberg 86248401 Junction box (L x W x H) 200 x 110 x 200 mm Orange IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Technical specifications
- Mounting type: Wall/ceiling mountingRated insulation voltage UI: 450 V.Max. Conductor cross-section 16 mm²Operating temperature -25 °C - +40 °CNumber of Introductions: 2Weather-resistant: Yes
- Product type
Junction box
- Factory colour
Orange
IP66
- Dim
(L x W x H) 200 x 110 x 200 mm
- Features
Halogen-free
- Content
1 pc(s)
- Material
Duroplast
Polyurethane
- Width
110 mm
- Height
200 mm
- Length
200 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2568816 Spelsberg 86248401 Junction box (L x W x H) 200 x 110 x 200 mm Orange IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2568816 Spelsberg 86248401 Junction box (L x W x H) 200 x 110 x 200 mm Orange IP66 1 pc(s)
Description
Cable junction box, with protection class IP66, UI=450V AC, internal thread, M25/M32, (3 lateral), external mounting points, with electrical functional retention E30 according to DIN 4102 Part 12, tested according to VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), with screwless terminal blocks WAGO top jobs, housing made of halogen-free special duroloadorange, junction box with fused branch, junction box 5-pin, No. of connectable conductors per pole 2 x 0.5 - 16 mm², junction box 3-pole, No. of connectable conductors per pole 4 x 0.5 - 6 mm², terminal capacity per terminal point 1 x 0.5 - 6 mm², 1 fuse holder (20 x 5 mm) max. 10 A
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2 cable glands M32, sealing range 17 - 26 mm, 1 cable gland M25, sealing range 6 - 15 mm, dowel set ø 6 mm
