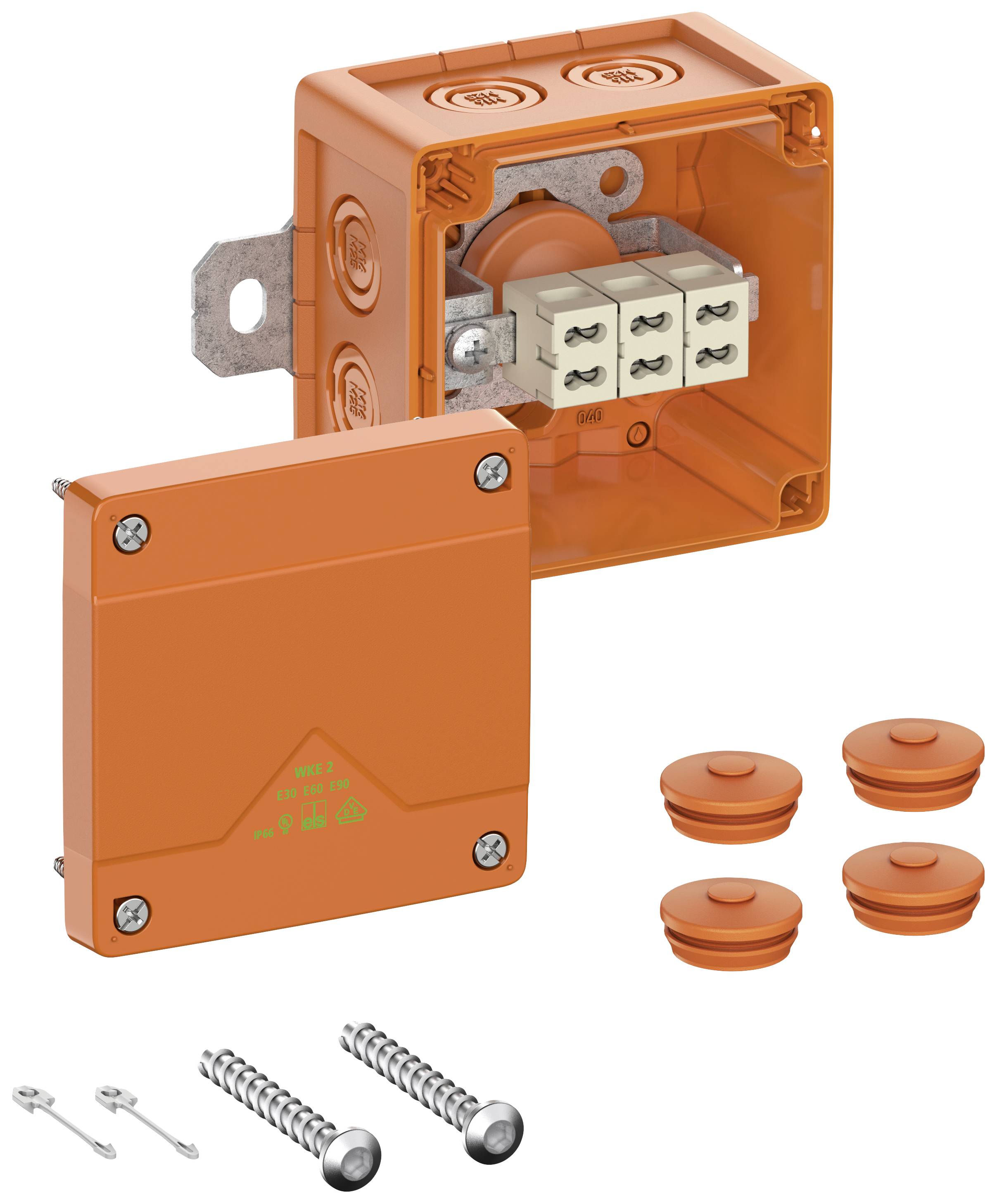

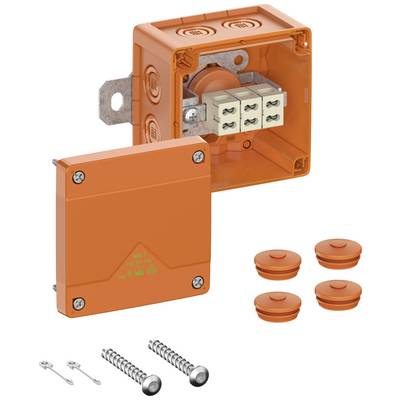

'Orange junction box with transparent lid, internal cable connections. Includes screws and sealing caps.'

'Orange junction box with transparent lid, internal cable connections. Includes screws and sealing caps.'

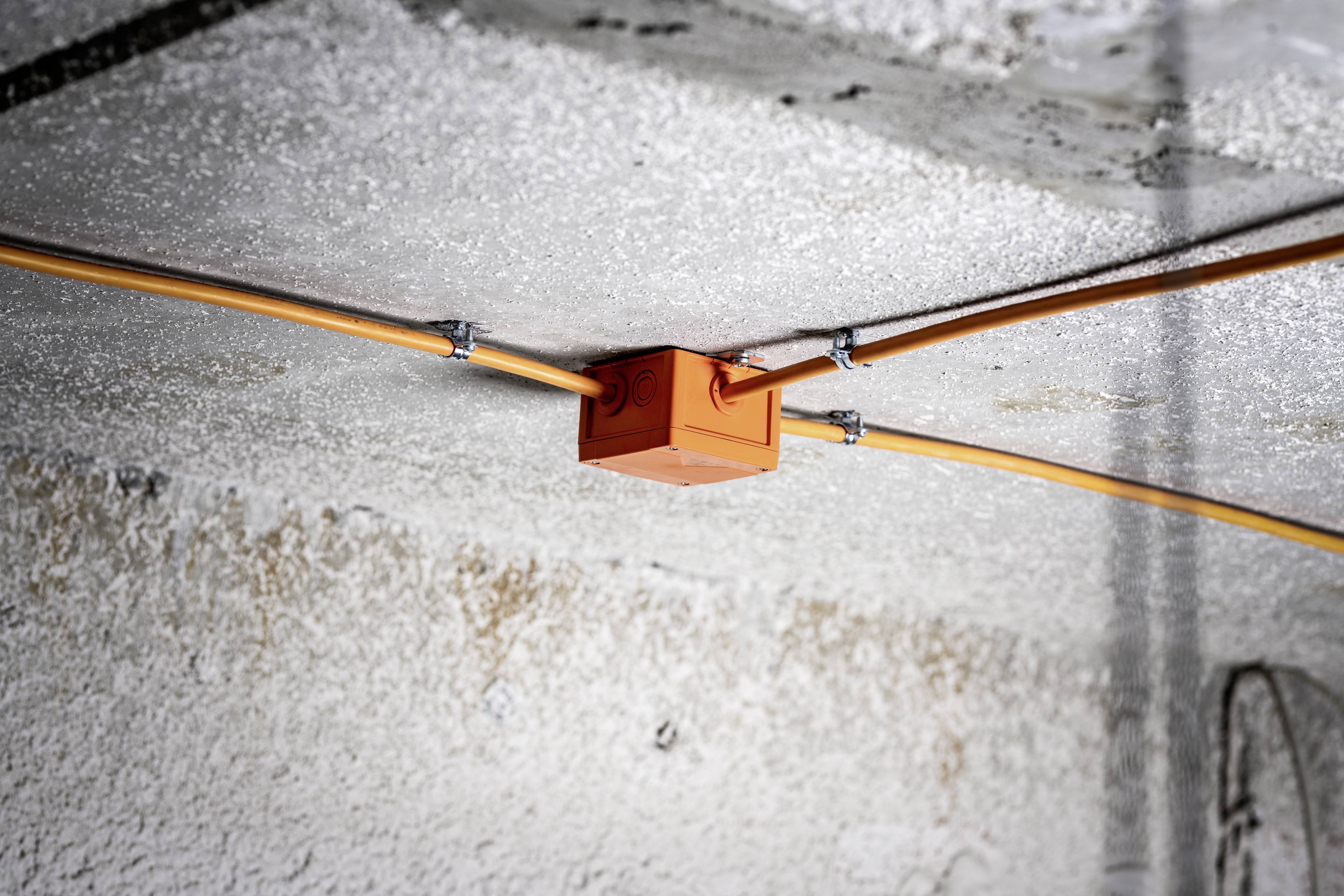

Orange distribution box mounted on a ceiling, connected by cables in four directions. Concrete background.

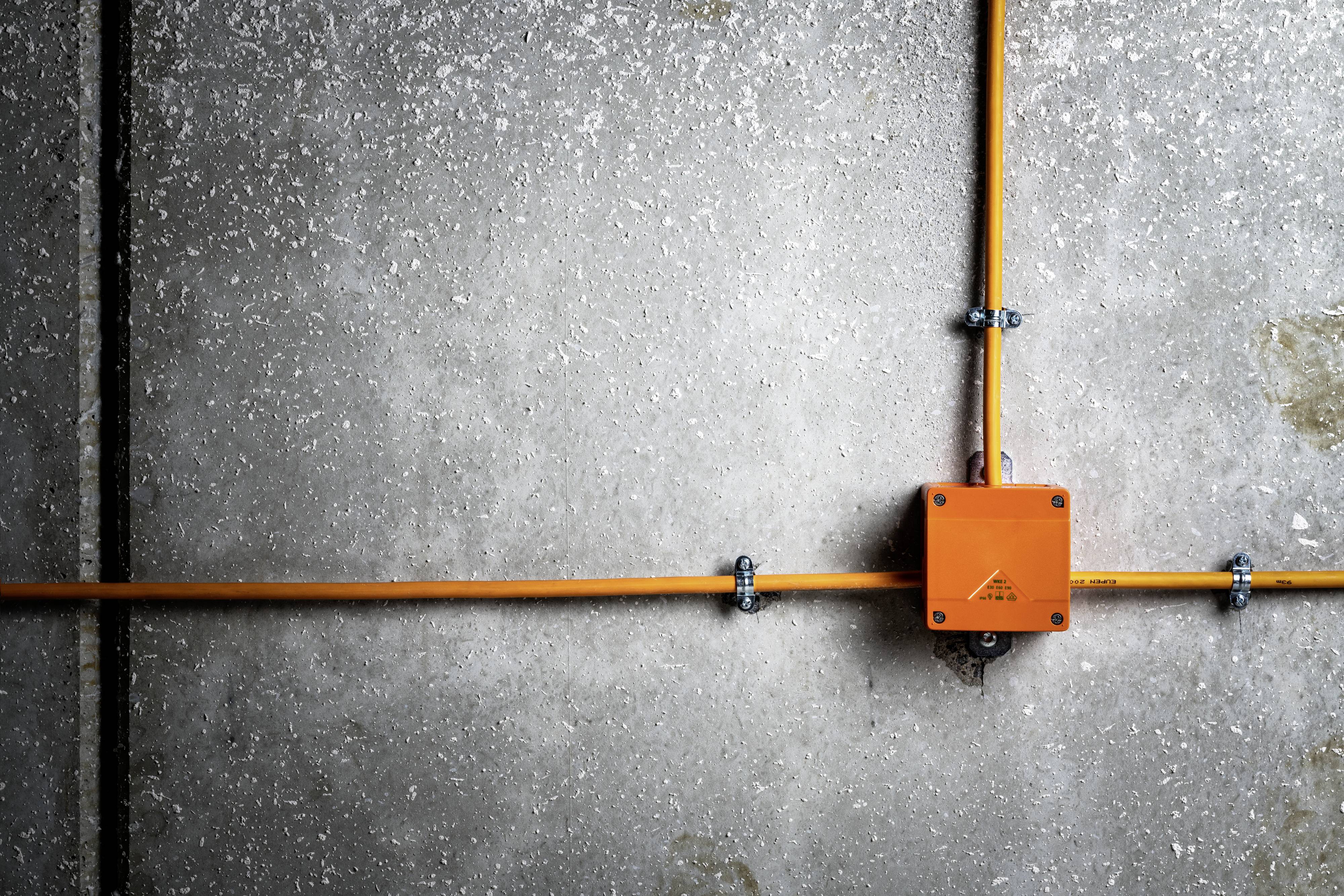

Orange cable and connection socket on a grey concrete wall. Simple industrial design.

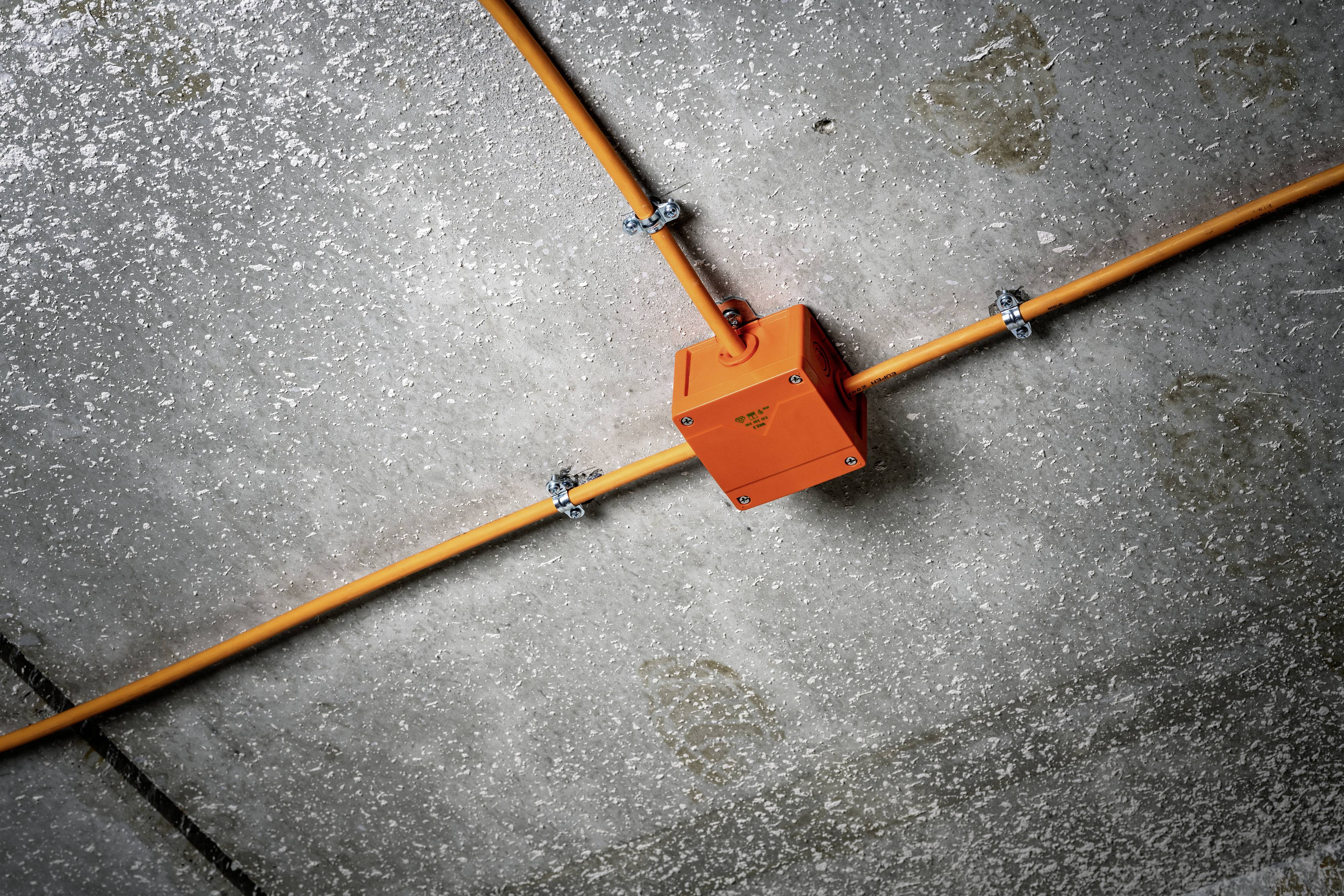

An orange junction box with cables is mounted on a grey concrete wall. It is positioned facing downwards to the left.

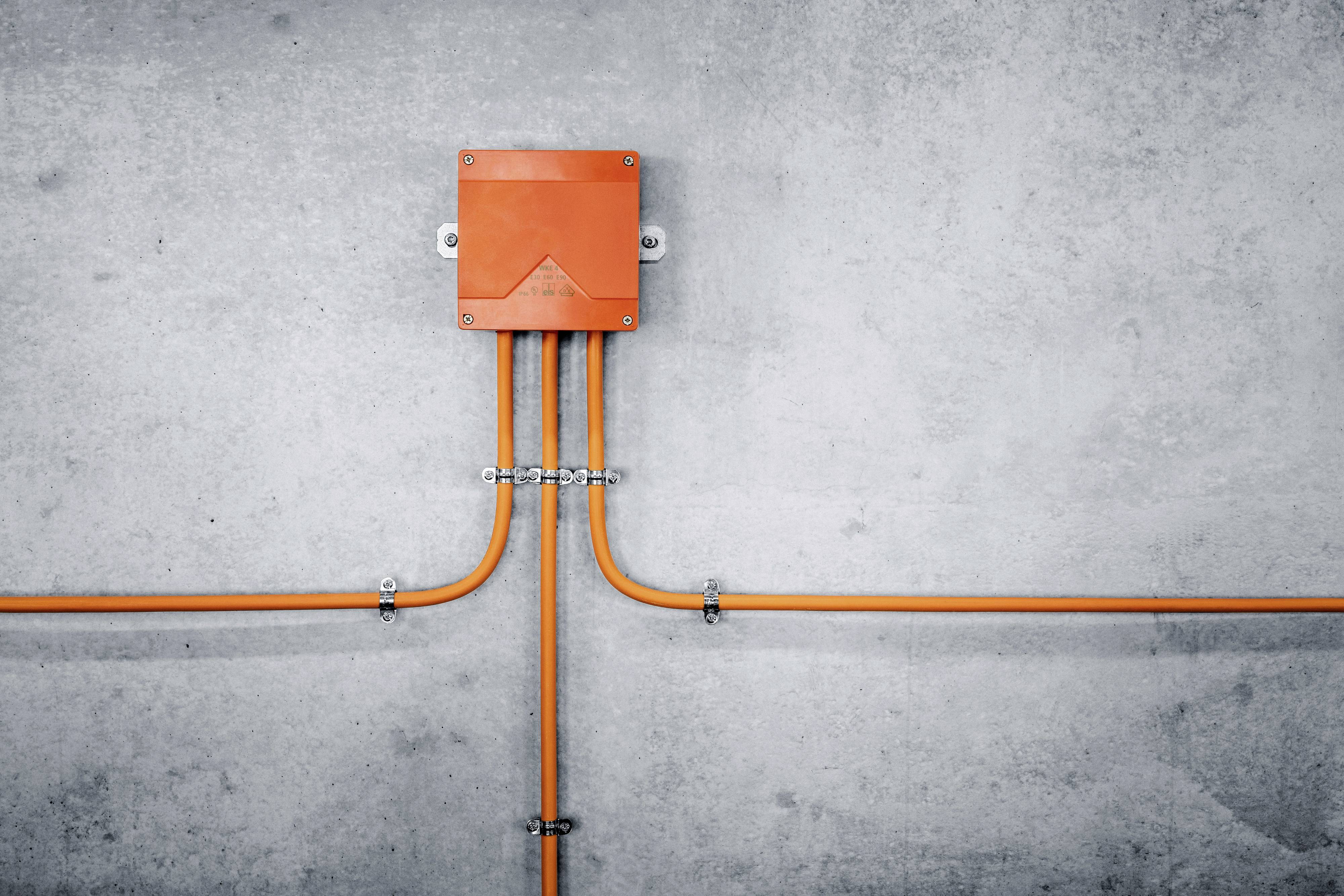

Orange cable box on a grey concrete wall with cables extending to the left and right.

1/5

Spelsberg

Datasheet (PDF)

Deutsch (Deutschland)

Dispatches on Thu, 9 Jul

997 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 2

Multiple: 1

Total (€ 67.22 / piece)

€ 134.44

plus VAT.

Report legal concerns

Technical specifications

Mounting type: Wall/ceiling mounting
Rated insulation voltage UI: 450 V.
Max. Conductor cross-section: 4 mm²
Operating temperature: -35 °C - +55 °C.
Number of introductions: 8
Weather-resistant: Yes

Product type: Junction box

Factory colour: Orange

: IP66

Dim: (L x W x H) 100 x 100 x 70 mm

Type: stackable; square; untreated

Features: Halogen-free
Sealable

Content: 1 pc(s)

Material: Plastic

Width: 100 mm

Height: 70 mm

Length: 100 mm

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2378527 Spelsberg 86740001 Junction box (L x W x H) 100 x 100 x 70 mm Orange IP66 1 pc(s)

Datasheet 2378527 Spelsberg 86740001 Junction box (L x W x H) 100 x 100 x 70 mm Orange IP66 1 pc(s)

Description

Cable feeder and connection box with IP66 certified according to EN 60670 and IEC 62208 with electrical function retention E30-E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplast, clamps made of high-temperature resistant special ceramic, terminal holder can be freely positioned, quick mounting by external mounting brackets, connection box 3-pin 0.5-4qmm, junction box 3-pin 0.5-4qmm, Number of clamping conductors per pole: 16 x 0.5q / 8 x 0.75q / 12 x 1Q / 12 x 1.5q / 4 x 2.5q / 4 x 4Q

This text is machine translated.

Hints

Safety-relevant component - installation only by skilled workers
