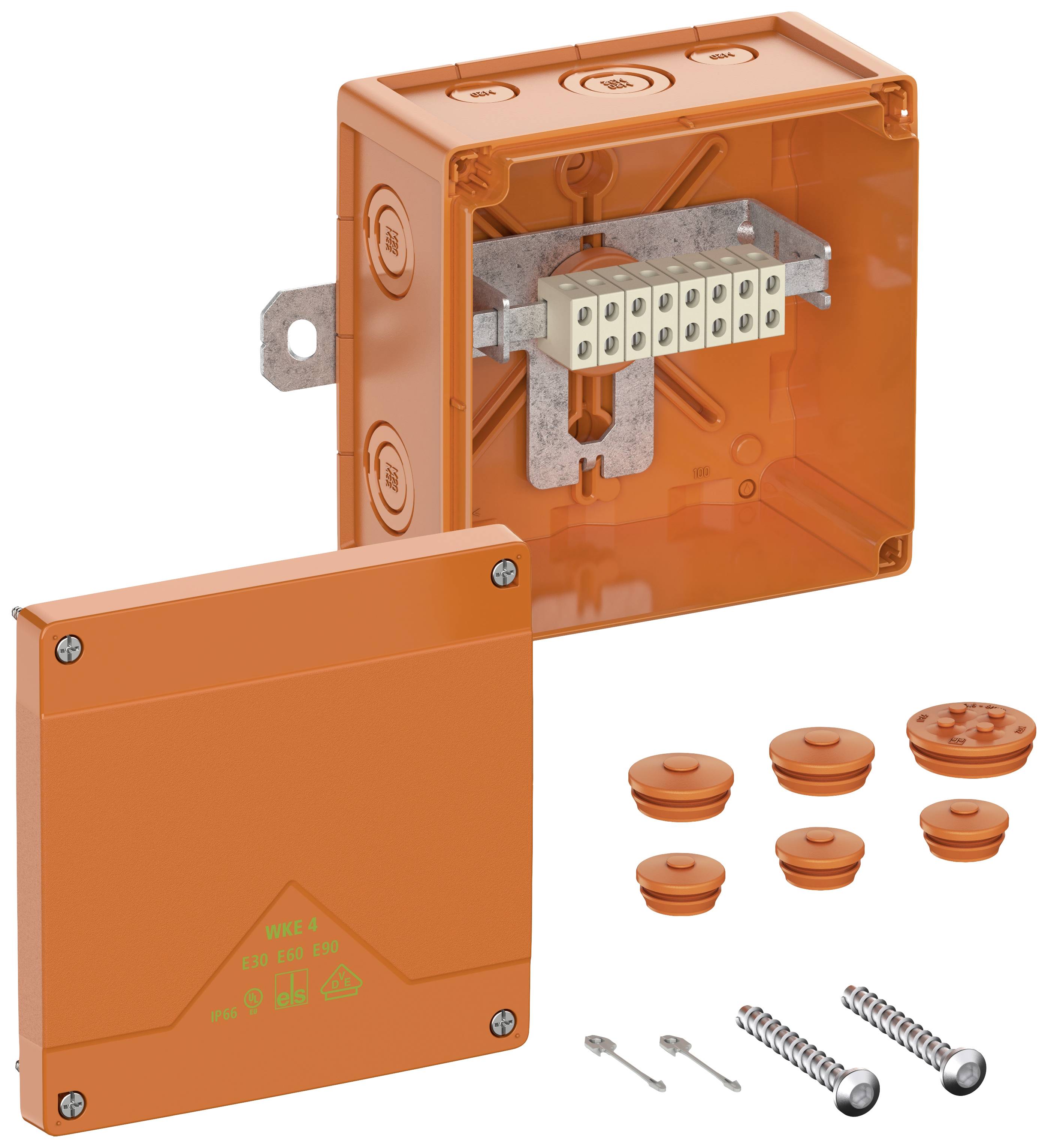

Spelsberg 86850801 Junction box (L x W x H) 150 x 150 x 85 mm Orange IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Wall/ceiling mounting
- Rated insulation voltage UI: 450 V.
- Max. Conductor cross-section 2.5 mm²
- Operating temperature: -35 °C - +55 °C.
- Number of introductions: 12
- Weather-resistant: Yes
- Product type
Junction box
- Factory colour
Orange
IP66
- Dim
(L x W x H) 150 x 150 x 85 mm
- Type
stackable; square; untreated
- Features
Halogen-free
Sealable
- Content
1 pc(s)
- Material
Plastic
- Width
150 mm
- Height
85 mm
- Length
150 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378535 Spelsberg 86850801 Junction box (L x W x H) 150 x 150 x 85 mm Orange IP66 1 pc(s)
Datasheet 2378535 Spelsberg 86850801 Junction box (L x W x H) 150 x 150 x 85 mm Orange IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2378535 Spelsberg 86850801 Junction box (L x W x H) 150 x 150 x 85 mm Orange IP66 1 pc(s)
Description
Cable feeder and connection box with IP66 certified according to EN 60670 and IEC 62208 with electrical function retention E30-E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, clamps made of high-temperature resistant special ceramic, terminal holder can be freely positioned, quick mounting by external mounting brackets, connection box 8-pin 0.5-2.5qmm, branch box 8-pin 0.5-1.5qmm, Number of clamping conductors per pole: 8 x 0.5q / 4 x 0.75q / 6 x 1Q / 6 x 1.5q / 2 x 2.5q
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
