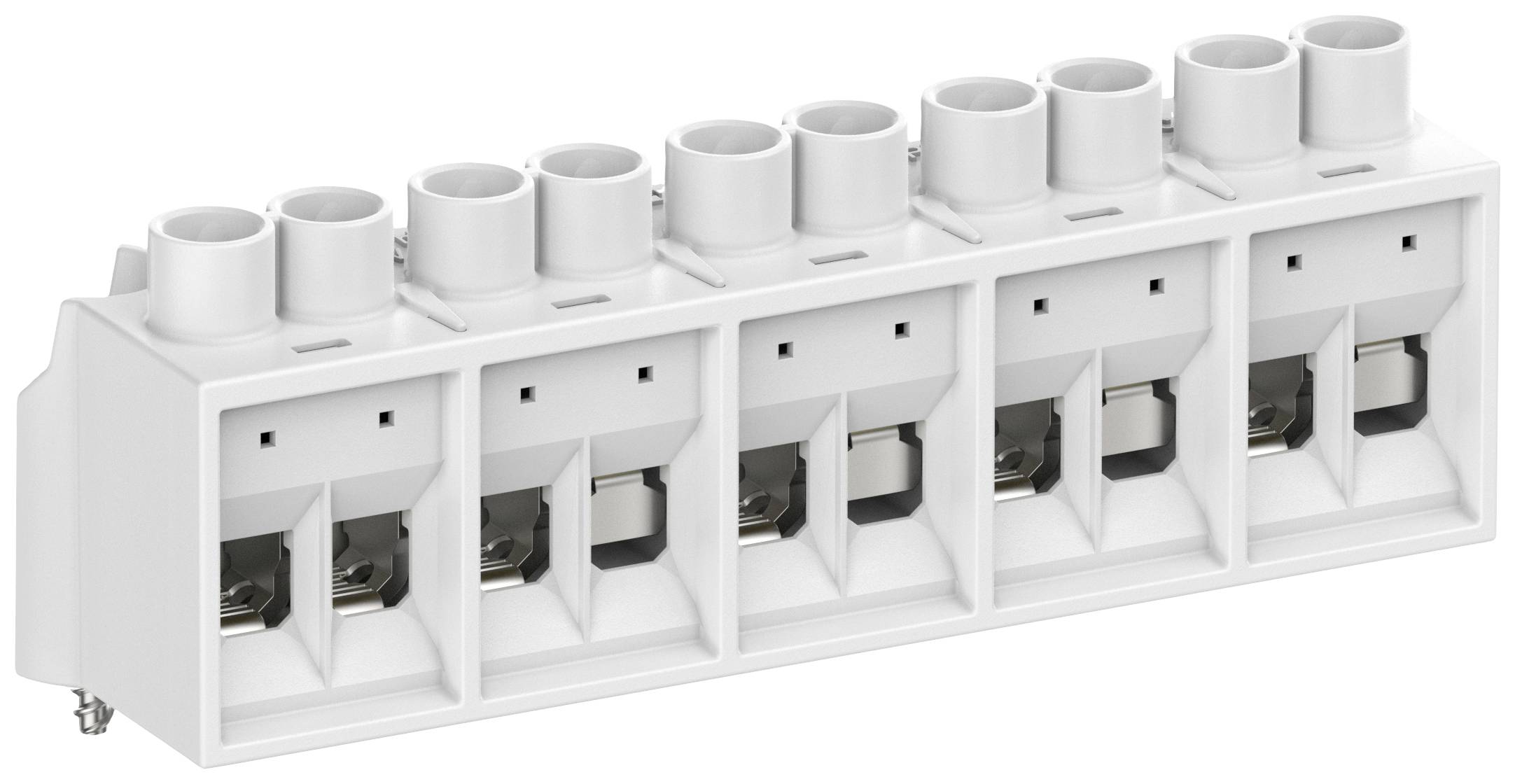

Spelsberg 89640601 Abox 060 KLS-6² Connector clip flexible: 1.5-6 mm² fixed: 1.5-6 mm² Number of pins: 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector clip
Cross section (flexible) (min.)
1.5 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
1.5 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Connector clip
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
5
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)
- Dim
(L x W) 98 mm x 32 mm
- Manufacturer part #
89640601
- Connection
Screw terminal
- Contact material
Copper
- Nominal voltage
690 V
- Width
32 mm
- Length
98 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062337 Spelsberg 89640601 Abox 060 KLS-6² Connector clip flexible: 1.5-6 mm² fixed: 1.5-6 mm² Number of pins: 5 1 pc(s) Piece
Description
Connection terminal in accordance with DIN EN 60998 (VDE 0613), Ui=690V. For mounting in junction boxes Abox / Abox Pro from 2024. Screw terminal for Abox/Abox Pro 060, 5-pin - 6 mm², In = 41 A, pluggable cross-sections per pole: 4 x 1.5 mm², 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², rigid/flexible copper with wire-end sleeves. Dimensions 23 x 98 x 32 mm
