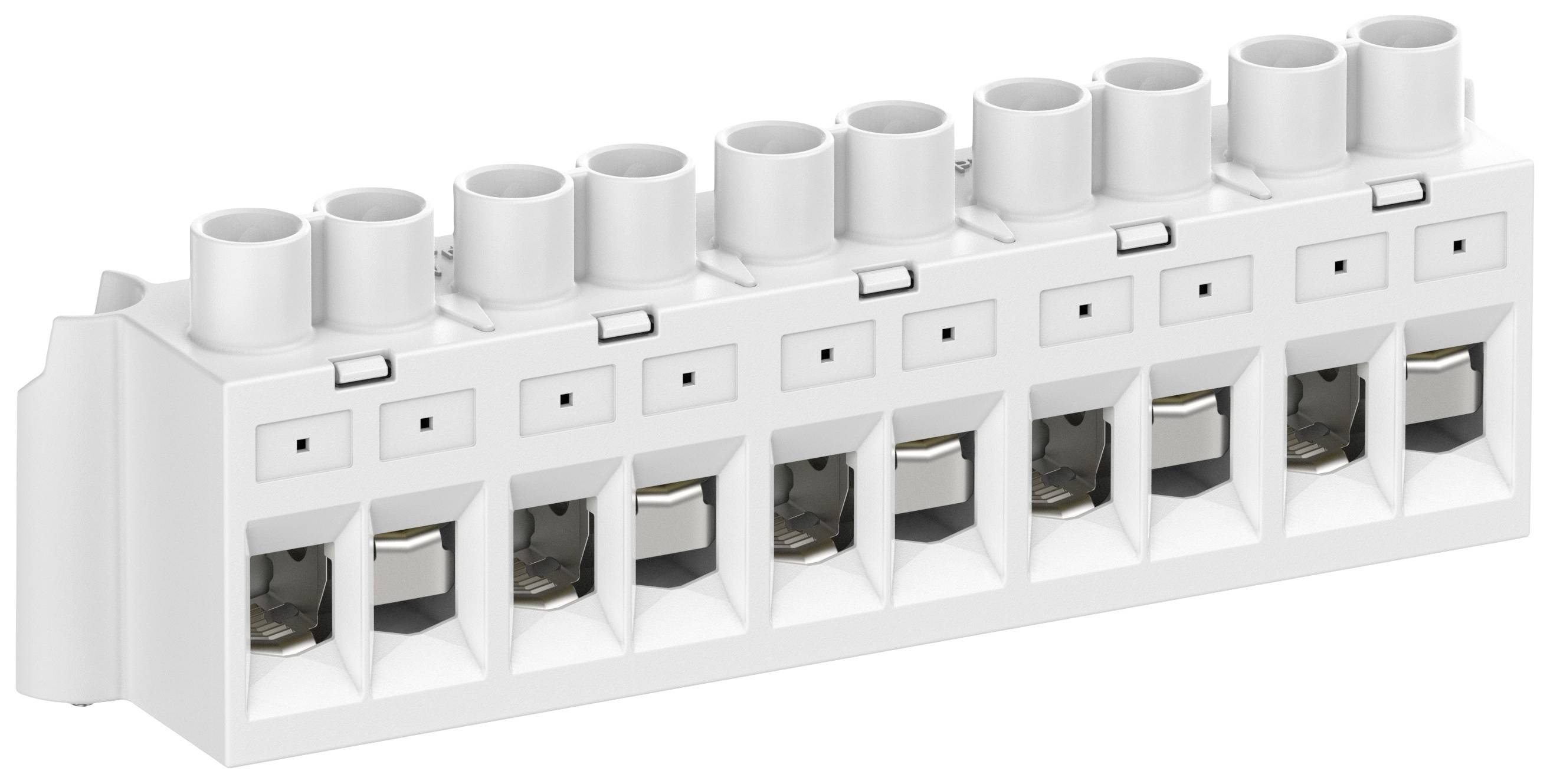

Spelsberg 89641001 Abox 100 KLS-10² Connector clip flexible: 2.5-10 mm² fixed: 2.5-10 mm² Number of pins: 5 1 pc(s) Sing
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Connector clip
Cross section (flexible) (min.)
2.5 mm²
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (min.)
2.5 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Single
- Product type
Connector clip
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Number of pins
5
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Content
1 pc(s)
- Dim
(L x W) 124 mm x 39 mm
- Manufacturer part #
89641001
- Connection
Screw terminal
- Contact material
Copper
- Nominal voltage
690 V
- Width
39 mm
- Length
124 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062338 Spelsberg 89641001 Abox 100 KLS-10² Connector clip flexible: 2.5-10 mm² fixed: 2.5-10 mm² Number of pins: 5 1 pc(s) Sing
Description
Connection terminal in accordance with DIN EN 60998 (VDE 0613), Ui=690V. For mounting in junction boxes Abox / Abox Pro from 2024. High-lying screw clamp for Abox/Abox Pro 100, 5-pin - 10², In = 57 A, pluggable cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm², rigid/flexible copper with wire-end sleeves. Dimensions 25 x 124 x 39 mm
