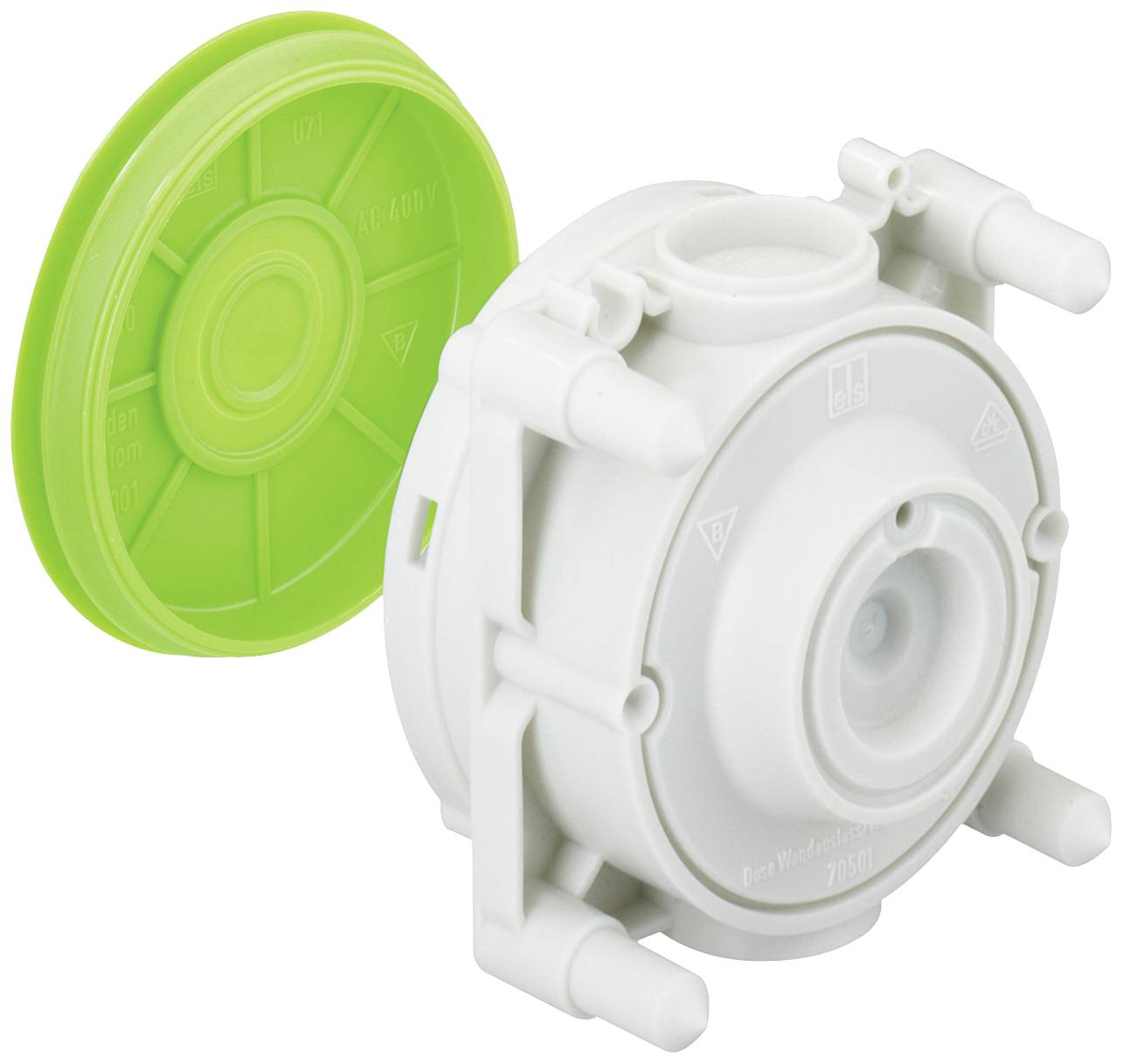

Spelsberg 97056001 Dry-lining box (Ø x H) 35 mm x 48 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
5
7% = € 0.17
€ 2.34
10
9% = € 0.23
€ 2.28
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€
Technical specifications
- Mounting type: Concrete construction
- IP30 protection
- Cover type: Blind cover, snap-on
- Material: Plastic
- Number of Introductions: 2
- For cable diameter 1 - 20 mm
- For pipe diameter 20 mm
- Halogen-free: Yes
- Can be coupled: Yes
- Windproof: Yes
- Pipe lock: Yes
- Product type
Dry-lining box
- Content
1 pc(s)
- Dim
(Ø x H) 35 mm x 48 mm
- Length
71 mm
- Width
71 mm
- Height
48 mm
- (Ø)
35 mm
Documents & Downloads
Datasheet
Datasheet 2378988 Spelsberg 97056001 Dry-lining box (Ø x H) 35 mm x 48 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2378988 Spelsberg 97056001 Dry-lining box (Ø x H) 35 mm x 48 mm 1 pc(s)
Description
Wall outlet box for concrete installation, 2-part, for connection of wall lamps according to VDE 0100, with screw hole for lamp attachment, combined, outlet at front 35mm, suitable for all types of switching and counterswitching
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
