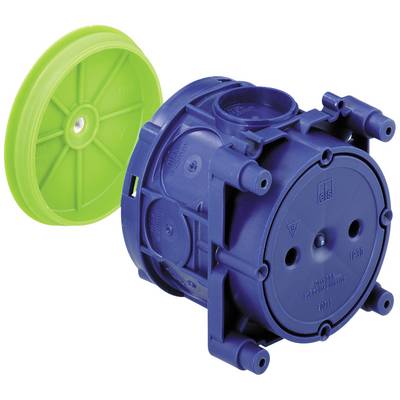

Spelsberg 97176601 Lining box adapter (Ø x H) 60 mm x 79 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 2.93 / piece)
€
Technical specifications
- Mounting type: Concrete construction
- IP30 protection
- Cover type: Blind cover, snap-on
- Material: Plastic
- Number of introductions: 8
- For cable diameter 1 - 25 mm
- For pipe diameter 20/25 mm
- Halogen-free: Yes
- Can be coupled: Yes
- Windproof: Yes
- Pipe lock: Yes
- Product type
Lining box adapter
- Type
Ceiling connection box, single, round
- Factory colour
Multi-coloured
- Content
1 pc(s)
- Dim
(Ø x H) 60 mm x 79 mm
- Length
71 mm
- Width
71 mm
- Height
79 mm
- (Ø)
60 mm
Concrete building
Other
71
Single
TRUE
Round
Untreated
60 mm
Other
71 m
Plastic
1-25 mm
IP30
Blind cover
Documents & Downloads
Datasheet
Datasheet 2379005 Spelsberg 97176601 Lining box adapter (Ø x H) 60 mm x 79 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379005 Spelsberg 97176601 Lining box adapter (Ø x H) 60 mm x 79 mm 1 pc(s)
Description
Ceiling junction box for concrete installation, 4 screw domes with screw spacing 60mm, with M5 threaded bush (load bearing capacity 10kg) for accommodating a ceiling hook, can be combined in the standard distance 71mm, fully insulated cable transition, suitable for all types of formwork and counterformwork, VDE certified according to DIN EN 60670 (VDE 0606), 2-part, with smooth front side for nail and adhesive mounting
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
