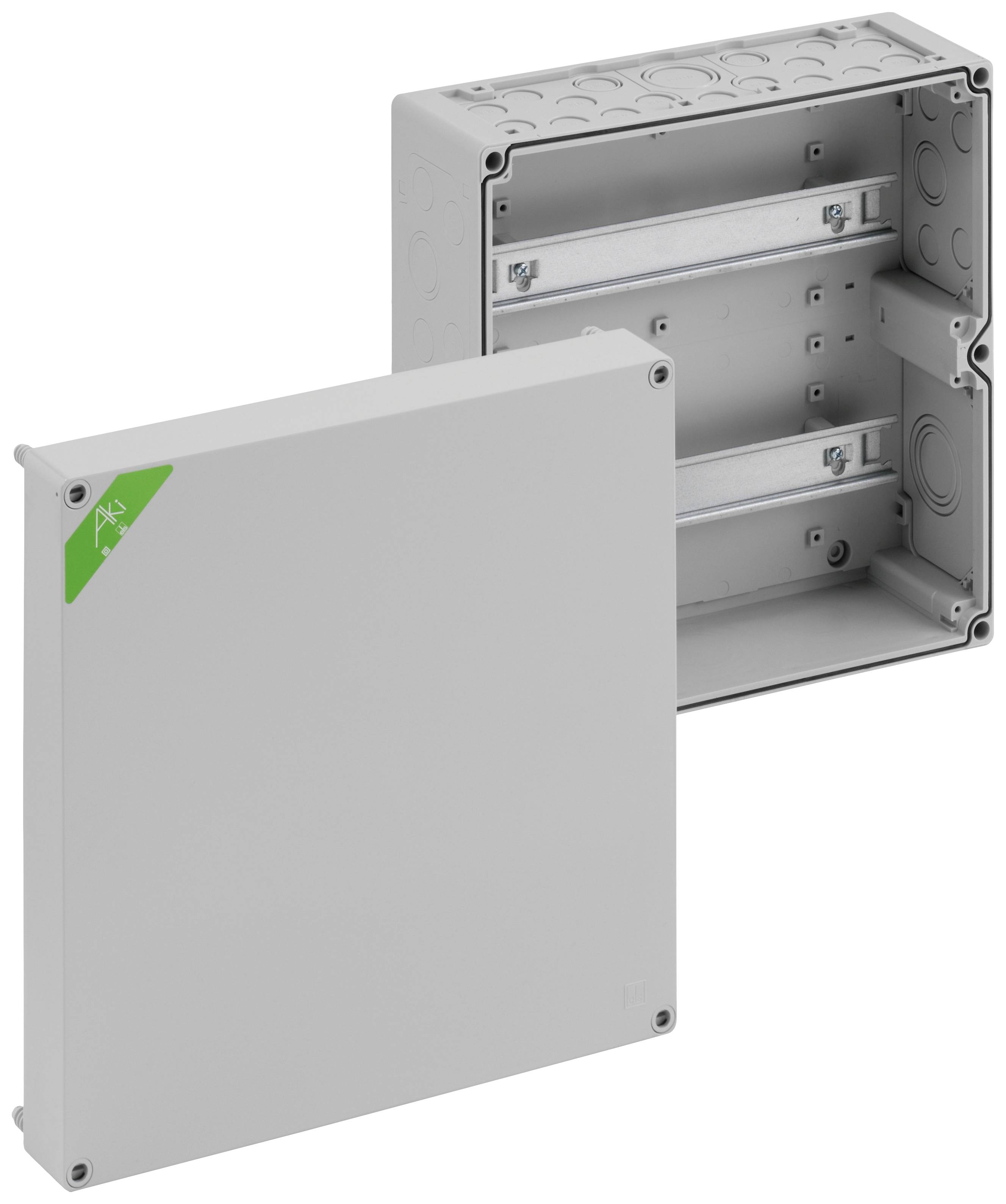

Spelsberg AKi-R 4/68-L Serial terminal enclosure 300 x 300 x 132 Plastic Grey 1 pc(s) #####Dose
EAN:
Part number:
Item no:
Packaging type
#####Dose
Product type
Serial terminal enclosure
Material
Plastic
IP rating
IP65
Width
300 mm
Datasheet (PDF)
Technical specifications
- Mounting type: Surface-mounted
- Surface: Untreated
- Attachment option: Yes
- Impact strength: IK08
- Material thickness housing: 3.5 mm
- Operating temperature: -35 °C - +80 °C.
- Lid mounting: Screwed
- Packaging type
#####Dose
- Product type
Serial terminal enclosure
- Features
halogen-free
sealable
- Material
Plastic
IP65
- Factory colour
Grey
- Type
With lid
- Length
300 mm
- Width
300 mm
- Height
132 mm
- Content
1 pc(s)
- Type
AKi-R 4/68-L
- Dim
(L x W x H) 300 x 300 x 132 mm
- Manufacturer part #
74190201
400 V
Surface mounted (plaster)
Grey
300
TRUE
132 mm
Rectangular
7035
Untreated
300 m
-35-80 °C
Plastic
FALSE
IK08
IP65
None
None
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378966 Spelsberg AKi-R 4/68-L Serial terminal enclosure 300 x 300 x 132 Plastic Grey 1 pc(s) #####Dose
User & Safety Instructions
User & Safety Instructions 2378966 Spelsberg AKi-R 4/68-L Serial terminal enclosure 300 x 300 x 132 Plastic Grey 1 pc(s) #####Dose
Description
Terminal block housing, polycarbonate, including 10 DMS connectors M20, sealing range 7-12mm, 2 DMS connectors M25, sealing range 9-16mm, 2 DMS connectors M32, Sealing range 14-21mm, 1 DMS connector M40, sealing range 19-28mm, IP66, 2 twisting nipples M50 incl. counter nut, IP54, without clamps, with NS 35
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
