Spelsberg AKi-TE 106 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 150 x 300 x 132 mm Piece
EAN:
Part number:
Item no:
Product type
Circuit breaker
Packaging type
Piece
Type
AKi-TE 106
Current load
63 A
No. of pins
3-pin
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
AKi-TE 106
- Current load
63 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Features
+ switch
IP65
- Depth
132 mm
- Width
150 mm
- Height
300 mm
- Dim
(W x H x D) 150 x 300 x 132 mm
- Content
1 pc(s)
690 V
3
IP65
690 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379113 Spelsberg AKi-TE 106 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 150 x 300 x 132 mm Piece
User & Safety Instructions
User & Safety Instructions 2379113 Spelsberg AKi-TE 106 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 150 x 300 x 132 mm Piece
Description

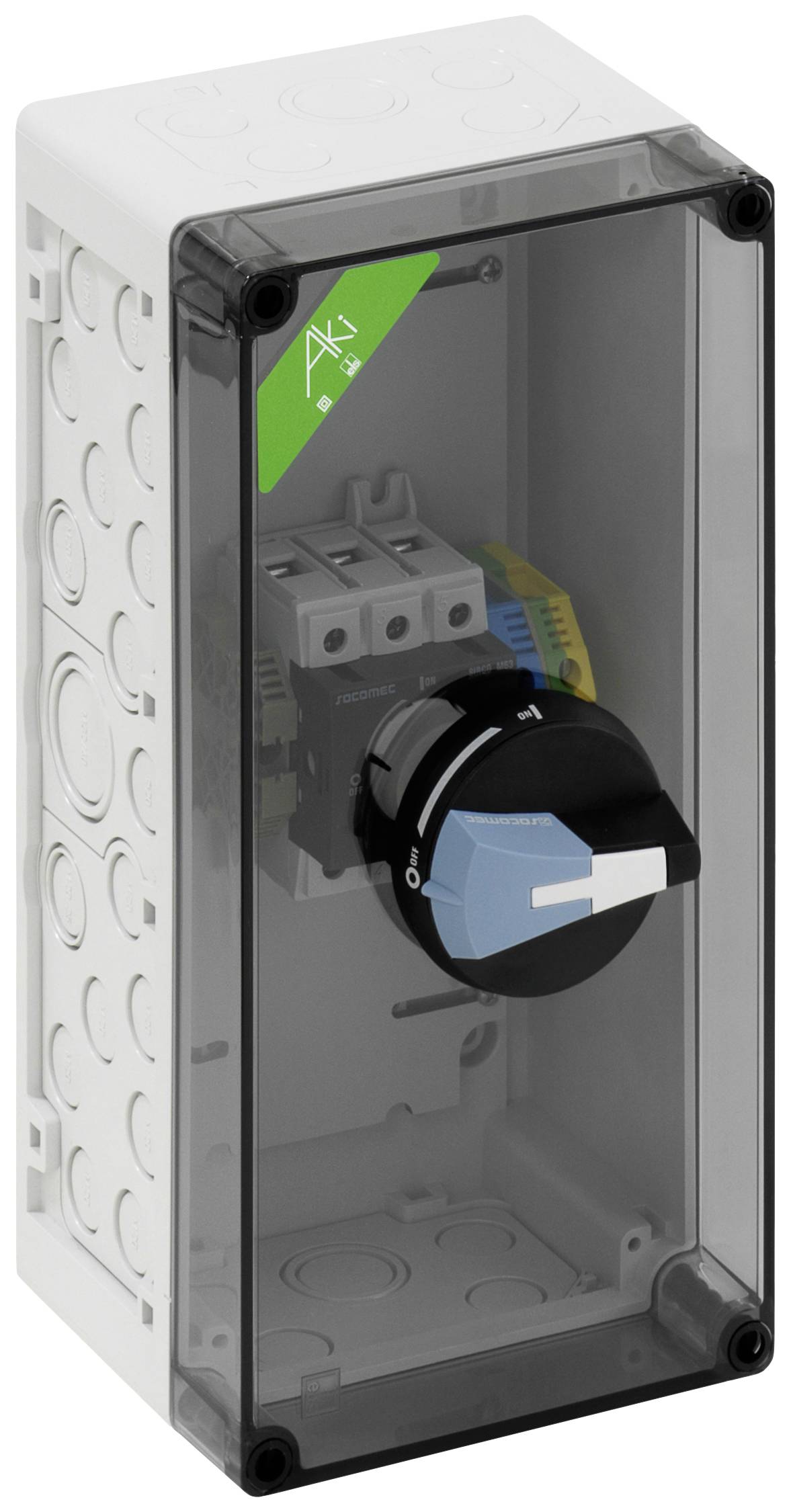

Switch disconnector housing, industrial quality with external actuation, lockable, IP65 (if appropriate cable entries are used), 1 x 63A switch disconnectors, 3-pole switching, 2.5-35qmm cage terminal, 16qmm PE/N terminal, with IP54 mounting supports, With insulating plug, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
