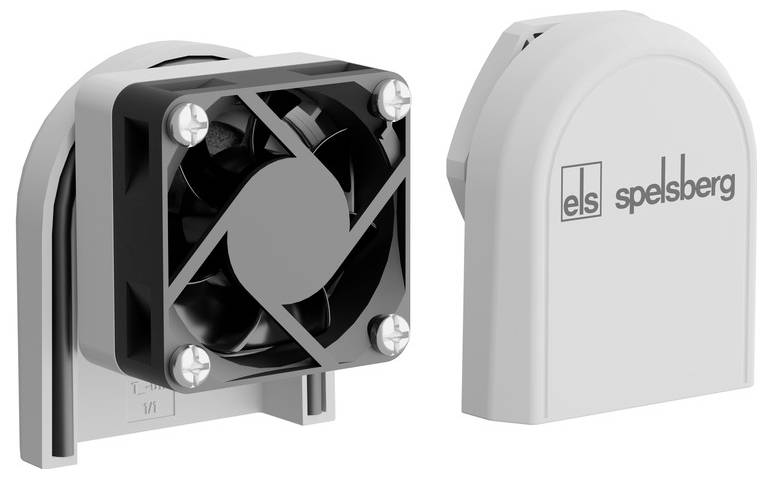

Spelsberg BEL Air active M40 24-1/gr Fan 24 V DC 1.4 W (W x H x D) 61 x 47 x 70 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fan
Operating voltage
24 V DC
Power
1.4 W
Width
61 mm
Height
47 mm
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
14-day return policy included
Highlights & Details
Ventilation element AIR, light gray, protection class IP55, impact strength IK07
- UV-resistant
Technical specifications
- Flammability class to UL94: V2
- Glow wire resistance 650 °C (EN 60695-2-11)
- Volume flow, free-blowing: 31.6 m³/h.
- Sound pressure level 38.1 dB
- Material: Polycarbonate
- Product type
Fan
- Type
BEL Air active M40 24-1/gr
- Operating voltage
24 V DC
1.4 W
- Air flow rate
31.6 m³/h
- Factory colour
Light grey
IP55
IK07
- Width
61 mm
- Height
47 mm
- Depth
70 mm
- Dim
(W x H x D) 61 x 47 x 70 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3775581 Spelsberg BEL Air active M40 24-1/gr Fan 24 V DC 1.4 W (W x H x D) 61 x 47 x 70 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3775581 Spelsberg BEL Air active M40 24-1/gr Fan 24 V DC 1.4 W (W x H x D) 61 x 47 x 70 mm 1 pc(s)
Description
Ventilation element AIR, light gray, protection class IP55, impact strength IK07.

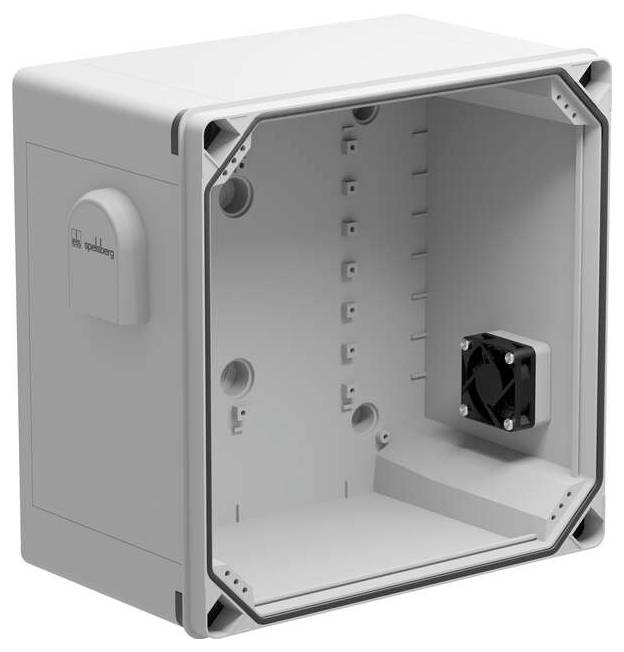

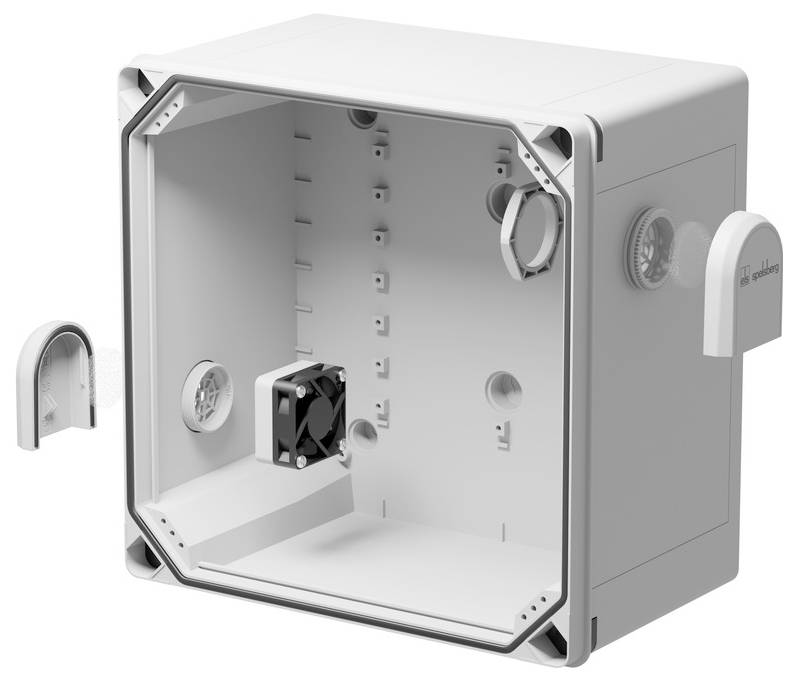

Filter fan for installation in housing openings M40, for heat dissipation from industrial empty housings and small distributors, class filter insert G4 as per DIN EN 779, for wall thicknesses from 1.25 to 4.5 mm.24 V DC, power class 1, gray
This text is machine translated.
Filter fan for installation in housing openings M40, for heat dissipation from industrial empty housings and small distributors, class filter insert G4 as per DIN EN 779, for wall thicknesses from 1.25 to 4.5 mm.24 V DC, power class 1, gray
