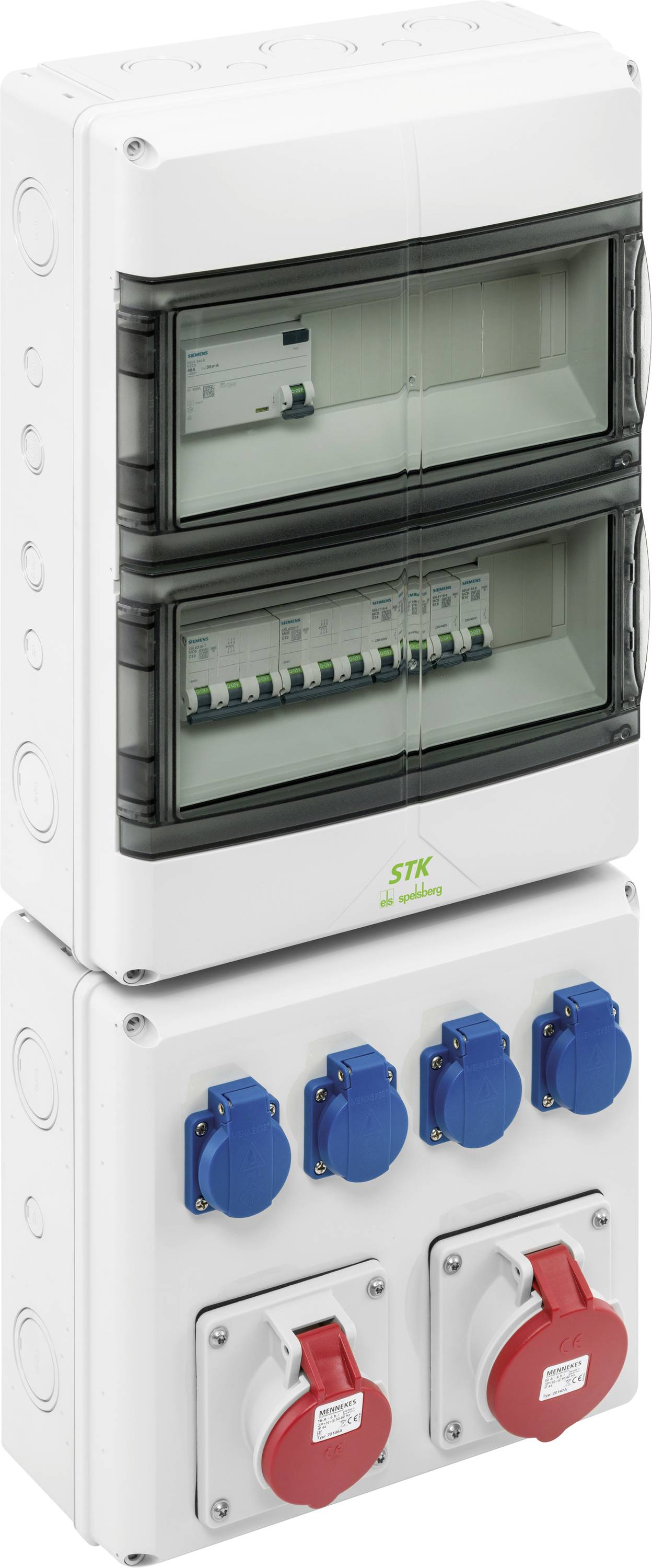

Spelsberg CEE power distributor STK 2824-K1632 73020101
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Impact strength: IK08
- Protection class: II
- Rated voltage 400 V/AC
- Number of circuit breakers: 6
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
Screw terminals
- Type B
PG connector
- No. of PG sockets
4
- Nominal output voltage
400 V AC
IP44
- Protection
MCB
FI with IFN 0.03 A (standard)
- Min. temperature
-25 °C
- Max. temperature
40 °C
- Factory colour
Grey
- Dim
(L x W x H) 750 x 315 x 750 mm
- Length
750 mm
- Width
315 mm
- Height
750 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
198 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374254 Spelsberg CEE power distributor STK 2824-K1632 73020101
User & Safety Instructions
User & Safety Instructions 3374254 Spelsberg CEE power distributor STK 2824-K1632 73020101
Description
The high-quality STK socket combinations can be easily expanded with the AK Air flange system and offer a high installation comfort with the central connection terminal for the lead. Fully wired and tested with DIN rail mounting devices and sockets. The STK-Z additional housings can be easily combined with the AK-F 14-56 small distributors, and a combination flange is enclosed. The flexible system is also the basis for customer-specific solutions that deviate from the standard. A product that provides room for flexibility and adapts to your needs.
Socket combination, with protection class IP44, ready for connection according to EN61439-3, with central connection terminal 4 - 25mm², 5-pin, also suitable for looping through the supply line, tool-free removable standard rails for easy wiring in the housing, CEE sockets with 20°inclination, simple combination with STK-additional housings or AK Air distributors with flange openings (AK-F), including flanges, available division units: 28 equipped with: 4 x circuit breaker C16A, 1-pin 1 x circuit breaker C16A, 3-pin 1 x circuit breaker C32A, 3-pin 1 x residual current circuit breaker (RCCB), 40/0.03A, 4-pin, Type A 315 x SCHUKO®-socket (front side), 230V 750 x CEE-socket (front side), 16A, 400V 198 x CEE-socket (front side), 32A, 400V Dimensions: 4 x 1 x 1 mm
This text is machine translated.
Socket combination, with protection class IP44, ready for connection according to EN61439-3, with central connection terminal 4 - 25mm², 5-pin, also suitable for looping through the supply line, tool-free removable standard rails for easy wiring in the housing, CEE sockets with 20°inclination, simple combination with STK-additional housings or AK Air distributors with flange openings (AK-F), including flanges, available division units: 28 equipped with: 4 x circuit breaker C16A, 1-pin 1 x circuit breaker C16A, 3-pin 1 x circuit breaker C32A, 3-pin 1 x residual current circuit breaker (RCCB), 40/0.03A, 4-pin, Type A 315 x SCHUKO®-socket (front side), 230V 750 x CEE-socket (front side), 16A, 400V 198 x CEE-socket (front side), 32A, 400V Dimensions: 4 x 1 x 1 mm
