Spelsberg CEE power distributor STK-Z 125 73000101
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,007.56 / piece)
€ 1,007.56
plus VAT.
14-day return policy included
Technical specifications
- Impact strength: IK08
- Protection class: II
- Rated voltage 400 V/AC
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
Screw terminals
- Nominal output voltage
400 V AC
IP44
- Protection
MCB
- Min. temperature
-25 °C
- Max. temperature
40 °C
- Factory colour
Grey
- Dim
(L x W x H) 315 x 315 x 300 mm
- Length
315 mm
- Width
315 mm
- Height
300 mm
- Content
1 pc(s)
- Depth
266 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374257 Spelsberg CEE power distributor STK-Z 125 73000101
User & Safety Instructions
User & Safety Instructions 3374257 Spelsberg CEE power distributor STK-Z 125 73000101
Description

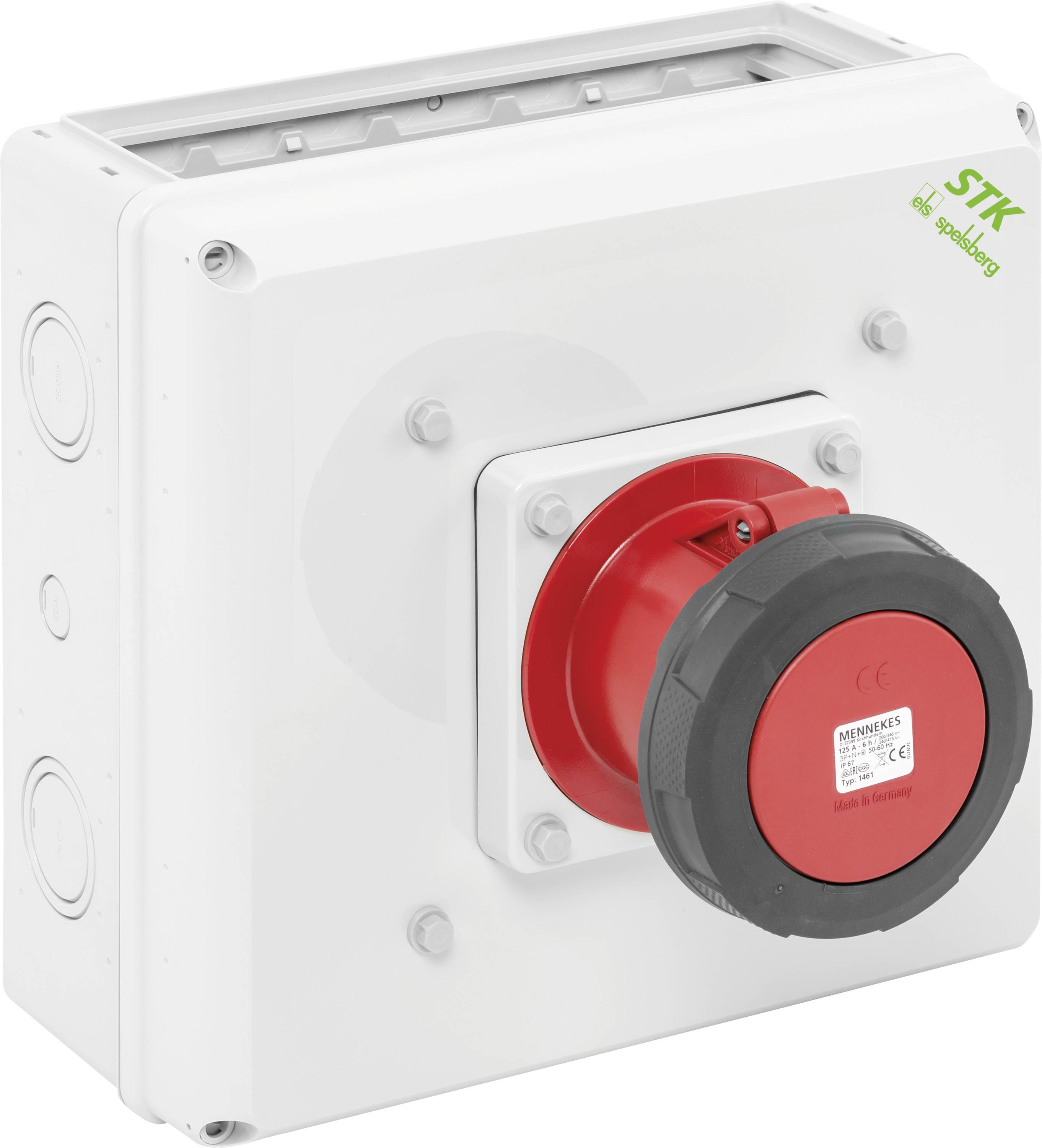

The high-quality STK socket combinations can be easily expanded with the AK Air flange system and offer a high installation comfort with the central connection terminal for the lead. Fully wired and tested with DIN rail mounting devices and sockets. The STK-Z additional housings can be easily combined with the AK-F 14-56 small distributors, and a combination flange is enclosed. The flexible system is also the basis for customer-specific solutions that deviate from the standard. A product that provides room for flexibility and adapts to your needs.
Socket combination with protection class IP44, additional housing, for a simple combination with STK socket combinations or AK-Air distributors with flange openings (AK-F), without flange, equipped with: 1 x CEE socket (front side), 125A, 400V Dimensions: 315 x 300 x 266 mm
This text is machine translated.
Socket combination with protection class IP44, additional housing, for a simple combination with STK socket combinations or AK-Air distributors with flange openings (AK-F), without flange, equipped with: 1 x CEE socket (front side), 125A, 400V Dimensions: 315 x 300 x 266 mm
This text is machine translated.
