Spelsberg CEE power distributor STK-Z E63 73003201
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 432.77 / piece)
€ 432.77
plus VAT.
14-day return policy included
Technical specifications
- Impact strength: IK08
- Protection class: II
- Rated voltage 400 V/AC
- Product type
CEE power distributor
- No. of CEE connectors
0
- Type A
CEE plug (5-pin, 63 A)
- Nominal output voltage
400 V AC
- Protection
MCB
- Min. temperature
-25 °C
- Max. temperature
40 °C
- Factory colour
Grey
- Dim
(L x W x H) 315 x 315 x 300 mm
- Length
315 mm
- Width
315 mm
- Height
300 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 63 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
233 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374261 Spelsberg CEE power distributor STK-Z E63 73003201
User & Safety Instructions
User & Safety Instructions 3374261 Spelsberg CEE power distributor STK-Z E63 73003201
Description
The high-quality STK socket combinations can be easily expanded with the AK Air flange system and offer a high installation comfort with the central connection terminal for the lead. Fully wired and tested with DIN rail mounting devices and sockets. The STK-Z additional housings can be easily combined with the AK-F 14-56 small distributors, and a combination flange is enclosed. The flexible system is also the basis for customer-specific solutions that deviate from the standard. A product that provides room for flexibility and adapts to your needs.

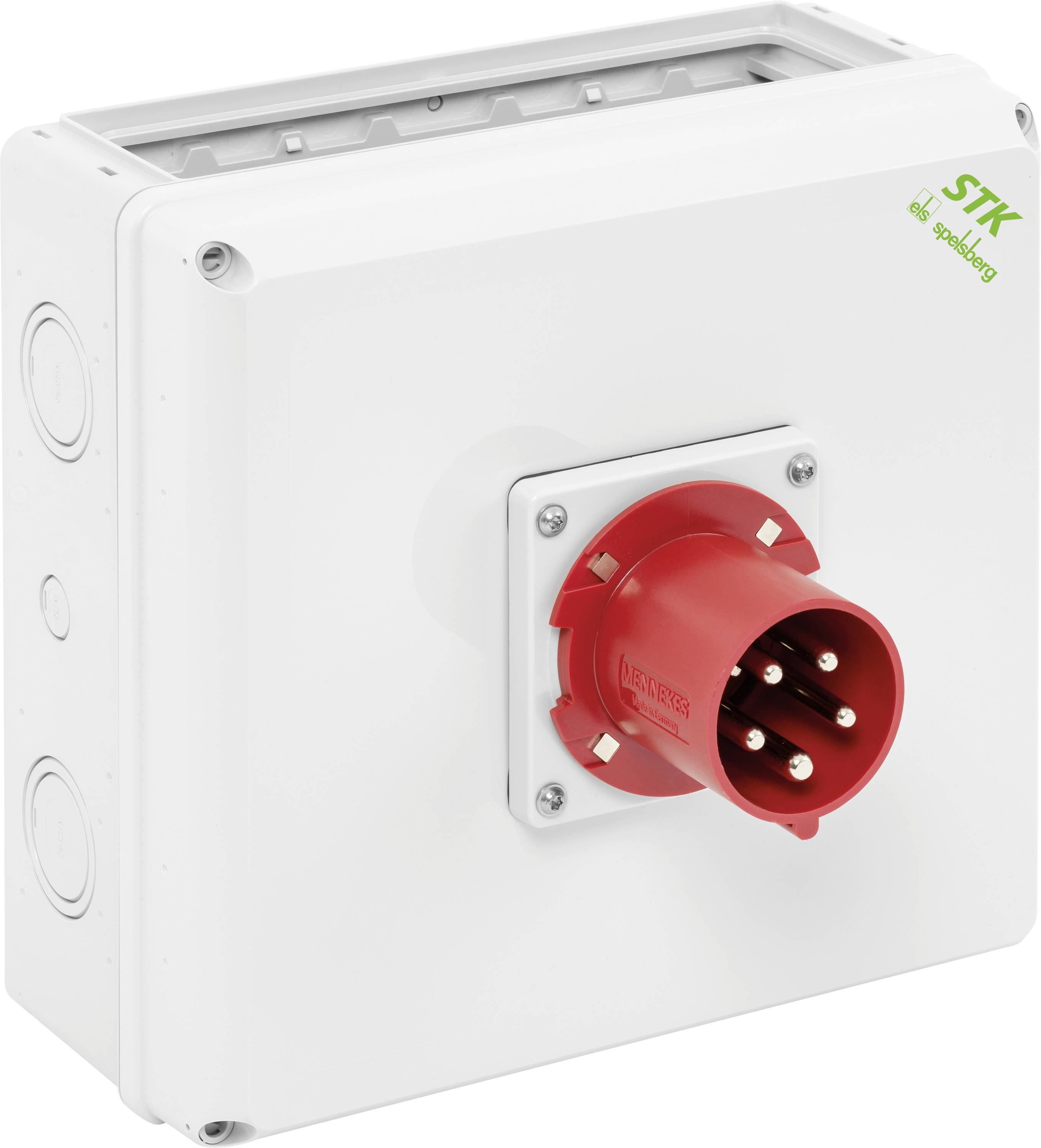

Socket combination with protection class IP44, additional housing, for a simple combination with STK socket combinations or AK-Air distributors with flange openings (AK-F), without flange, equipped with: 1 x CEE device plug (front side), 63A, 400V, 5-pole Dimensions: 315 x 300 x 233 mm
This text is machine translated.
Socket combination with protection class IP44, additional housing, for a simple combination with STK socket combinations or AK-Air distributors with flange openings (AK-F), without flange, equipped with: 1 x CEE device plug (front side), 63A, 400V, 5-pole Dimensions: 315 x 300 x 233 mm
