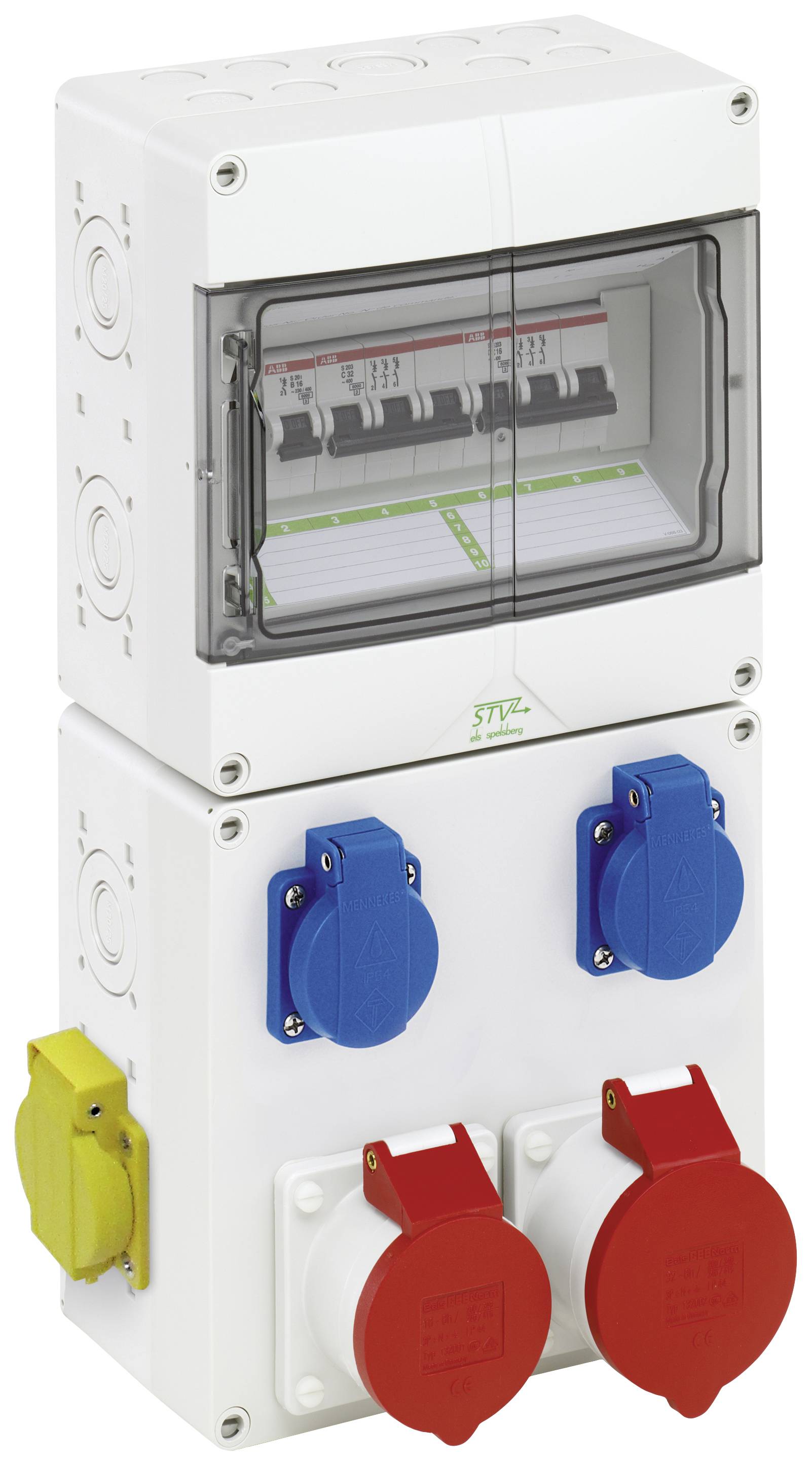

Spelsberg CEE power distributor STV 922-K-LAN 72942211 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- No. of PG sockets
4
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Factory colour
Grey
- Dim
(W x H x D) 200 x 400 x 122 mm
- Width
200 mm
- Height
400 mm
- Content
1 pc(s)
- Depth
122 mm
Documents & Downloads
Datasheet
Datasheet 2827448 Spelsberg CEE power distributor STV 922-K-LAN 72942211 400 V 32 A
User & Safety Instructions
User & Safety Instructions 2827448 Spelsberg CEE power distributor STV 922-K-LAN 72942211 400 V 32 A
Description
The socket combination with protection class IP44 is ready to connect according to EN 61439-3 and has a high mechanical strength, temperature insensitive and has combination cable entries.
This text is machine translated.
This text is machine translated.
Features
- Top: Pre-stamped 8 x M20, 1 x M25/32 Footprint 8 x M20, 1 x M32/25 Left: Pre-stamped 4 x M20/25Right: Pre-punched 4 x M20/25 Back: Pre-punched 4 x M20/25, equipped with: 2 x circuit breaker B16A, 1-pole 1 x circuit breaker C16A, 3-pole 1 x circuit breaker C32A, 3-pin 2 x SCHUKO® socket outlets (front side), 230V 1 x CEE-socket (front side), 16A, 400V1 x CEE-Socket (front side), 32A, 400V 1 x data flush-mounted socket, 1 x RJ45 cat.6 (on side)Accessories attached:Mounting socket 2x M25, 2x M32closing plugCover and labeling strips
