Spelsberg RK 4/34-34x4q Serial terminal enclosure 180 x 254 x 90 x 90 Plastic Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal enclosure
Material
Plastic
IP rating
IP66
Width
254 mm
Datasheet (PDF)
Technical specifications
- Surface: Untreated
- Attachment option: Yes
- Impact strength: IK07
- Material thickness housing: 3 mm
- Max. Conductor cross-section: 4 mm²
- Number of terminals: 34
- Operating temperature -25 °C - +40 °C
- Number of introductions: 32
- Lid mounting: Screwed
- Packaging type
Piece
- Product type
Serial terminal enclosure
- Features
halogen-free
sealable
- Material
Plastic
IP66
- Factory colour
Grey
- Type
With lid
- Length
180 mm
- Width
254 mm
- Height
90 mm
- Dimensions
180 x 254 x 90 mm
- Content
1 pc(s)
- Type
RK 4/34-34x4q
- Dim
(L x W x H) 180 x 254 x 90 mm
- Manufacturer part #
61503401
- Depth
90 mm
400 V
Grey
254
TRUE
90 mm
Rectangular
7035
Screwed terminal
Untreated
400 V
180 m
-25-40 °C
Plastic
FALSE
IK07
IP66
None
None
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378914 Spelsberg RK 4/34-34x4q Serial terminal enclosure 180 x 254 x 90 x 90 Plastic Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2378914 Spelsberg RK 4/34-34x4q Serial terminal enclosure 180 x 254 x 90 x 90 Plastic Grey 1 pc(s) Piece
Description

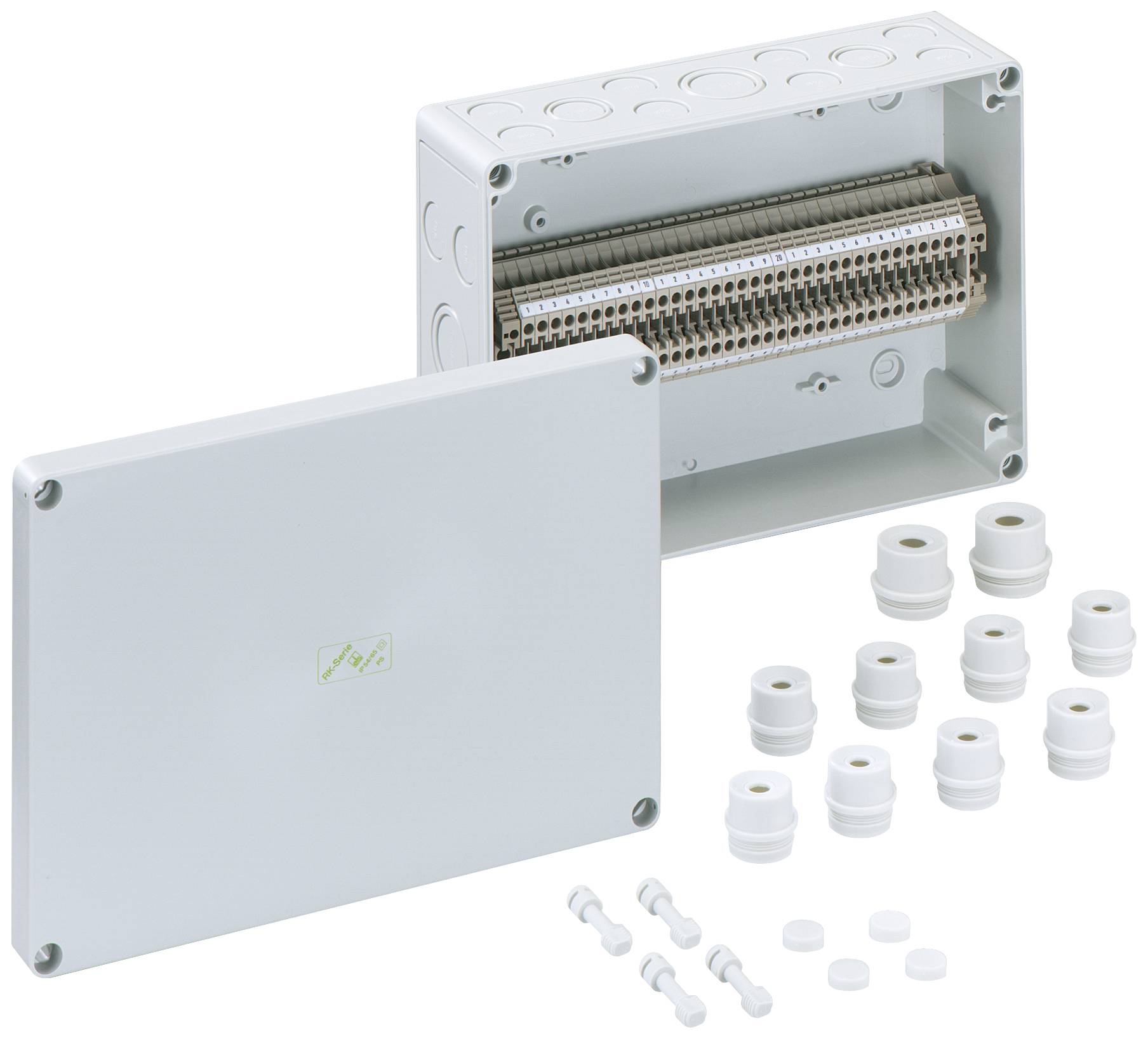

Terminal block housing, polystirene, with standard rail NS 35, incl. 8 mounting supports M20, sealing range 8-13.5mm, IP54, 2 mounting supports M25, sealing range 9-18.5mm, IP54, 1 mounting socket M32, sealing range 13-23mm, IP54, equipped with 34 screw terminals 4qmm, (type Weidmüller WDU 4)
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
