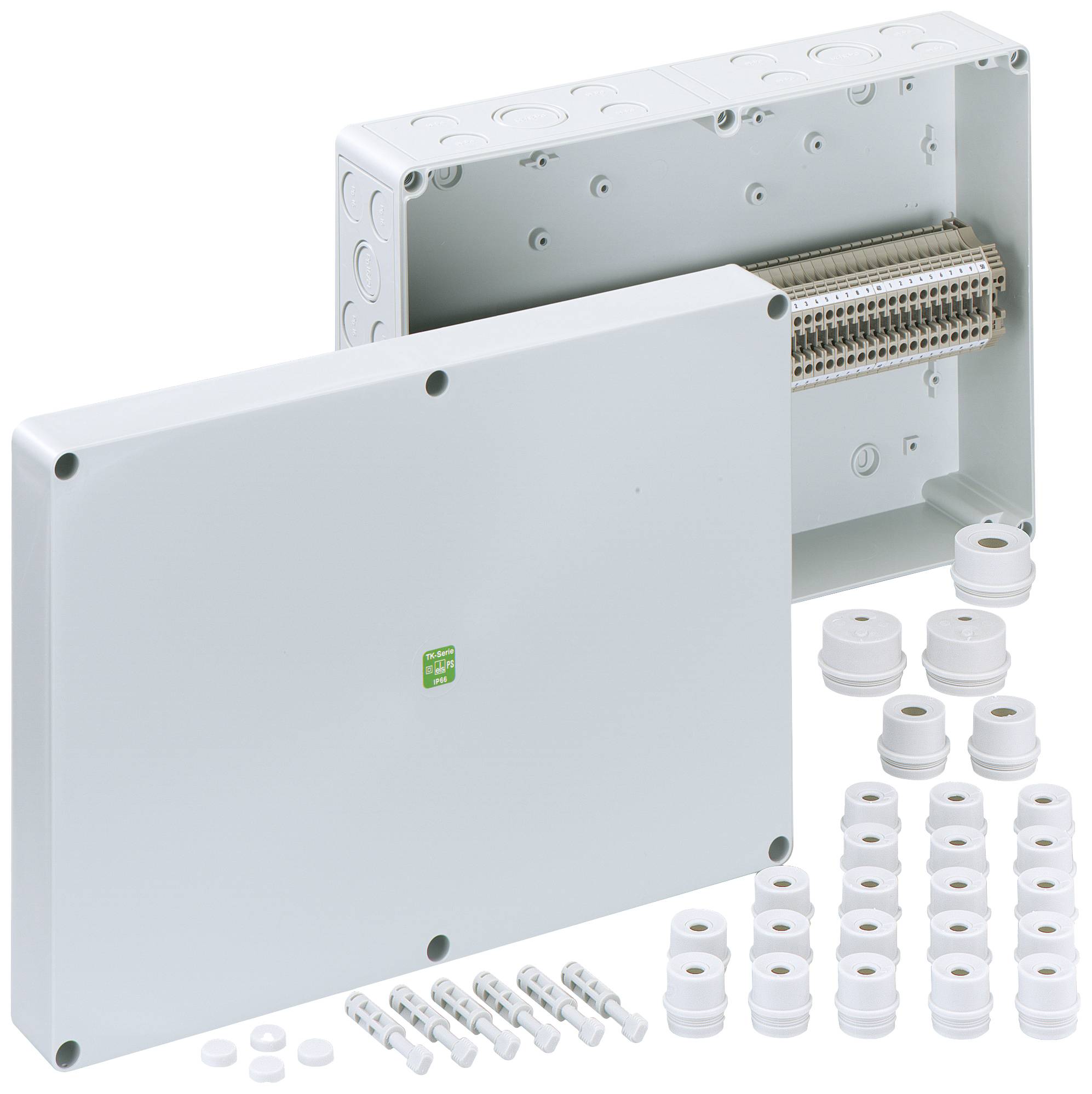

Spelsberg RK 4/50 SL-50x4q Serial terminal enclosure 254 x 360 x 111 Plastic Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal enclosure
Material
Plastic
IP rating
IP66
Width
360 mm
Datasheet (PDF)
Technical specifications
- Surface: Untreated
- Attachment option: Yes
- Impact strength: IK07
- Material thickness housing: 3 mm
- Max. Conductor cross-section: 4 mm²
- Number of terminals: 50
- Operating temperature -25 °C - +40 °C
- Number of introductions: 42
- Lid mounting: Screwed
- Packaging type
Piece
- Product type
Serial terminal enclosure
- Features
halogen-free
sealable
- Material
Plastic
IP66
- Factory colour
Grey
- Type
With lid
- Length
254 mm
- Width
360 mm
- Height
111 mm
- Dimensions
254 x 360 x 111 mm
- Content
1 pc(s)
- Type
RK 4/50 SL-50x4q
- Dim
(L x W x H) 254 x 360 x 111 mm
- Manufacturer part #
61005001
- Mounting type
Surface-mount
400 V
Grey
360
TRUE
111 mm
Rectangular
7035
Push-in clamp
Untreated
400 V
254 m
-25-40 °C
Plastic
FALSE
IK07
IP66
None
None
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378907 Spelsberg RK 4/50 SL-50x4q Serial terminal enclosure 254 x 360 x 111 Plastic Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2378907 Spelsberg RK 4/50 SL-50x4q Serial terminal enclosure 254 x 360 x 111 Plastic Grey 1 pc(s) Piece
Description
Terminal block housing, polystirene, gray similar to RAL 7035, including 18 mounting supports M20, sealing range 8-13.5mm, IP54, 4 mounting supports IP54, M25, Sealing range 9-18.5mm, 2 mounting supports M32, sealing range 11-23mm, IP54, 1 mounting socket M40, Sealing range 17-30mm, IP54, fitted with 50 screwless terminals 4qmm, (type Weidmüller ZDU 4)
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
