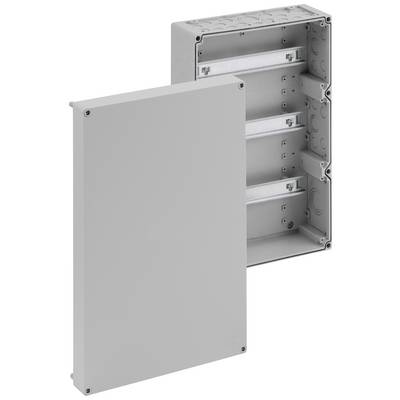

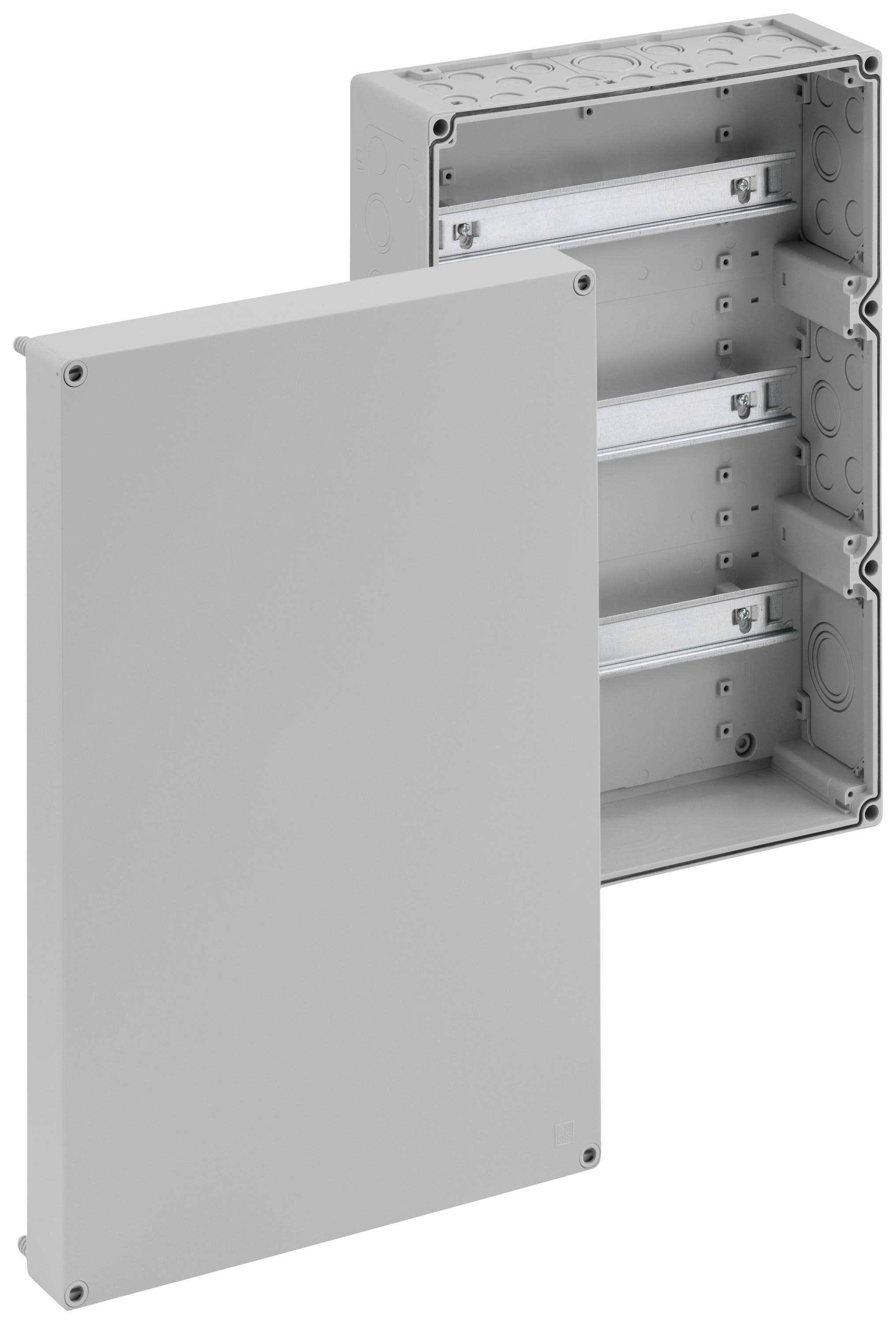

Spelsberg RKA 4/102-L Serial terminal enclosure 450 x 300 x 132 x 132 Plastic Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal enclosure
Material
Plastic
IP rating
IP65
Width
300 mm
Datasheet (PDF)
Technical specifications
- Mounting type: Surface-mounted
- Surface: Untreated
- Attachment option: Yes
- Impact strength: IK07
- Material thickness housing: 3.5 mm
- Operating temperature -25 °C - +40 °C
- Number of introductions: 45
- Lid mounting: Screwed
- Packaging type
Piece
- Product type
Serial terminal enclosure
- Features
halogen-free
sealable
- Material
Plastic
IP65
- Factory colour
Grey
- Type
With lid
- Length
450 mm
- Width
300 mm
- Height
132 mm
- Content
1 pc(s)
- Type
RKA 4/102-L
- Dim
(L x W x H) 450 x 300 x 132 mm
- Manufacturer part #
62990301
- Depth
132 mm
- Mounting type
Surface-mount
400 V
Surface mounted (plaster)
Grey
300
TRUE
132 mm
Rectangular
7035
Untreated
400 V
450 m
-25-40 °C
Plastic
FALSE
IK07
IP65
None
None
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378930 Spelsberg RKA 4/102-L Serial terminal enclosure 450 x 300 x 132 x 132 Plastic Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2378930 Spelsberg RKA 4/102-L Serial terminal enclosure 450 x 300 x 132 x 132 Plastic Grey 1 pc(s) Piece
Description
Terminal block housing, polystirene, including 10 M20 DMS connectors, sealing range 7-12mm, 2 M25 DMS connectors, sealing range 9-16mm, 2 M32 DMS connectors, Sealing range 14-21mm, 1 DMS connector M40, sealing range 19-28mm, IP66, 2 twisting nipples M50 incl. counter nut, IP54, without clamps, with NS 35
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
