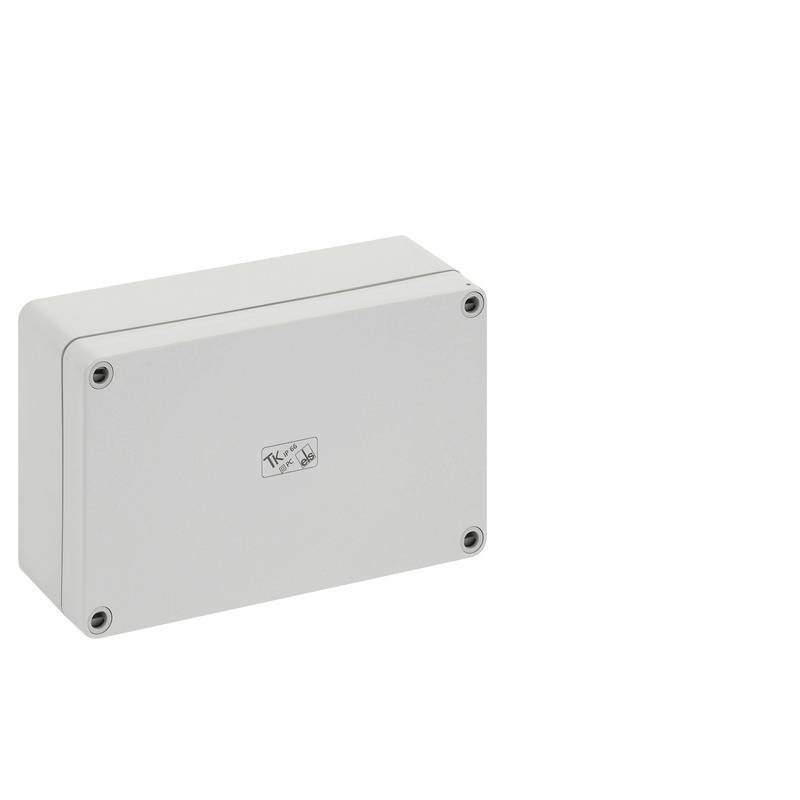

Spelsberg TK PC 1811-6f-o Enclosure (empty) 110 x 180 x 63 x 63 Polycarbonate (PC) Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
180 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Glass-fiber reinforced, gray, smooth side-wall dimensions: 180 x 110 x 63 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
with brackets
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
- Type
Without metric knockouts
- Knockouts
No
- Length
110 mm
- Width
180 mm
- Height
63 mm
- Dimensions
180 x 110 x 63 mm
- Weight
0.3476 kg
- Compatible with (details)
Mast/pipe mounting set MABF 65-3 for empty housing TK 1809, TK 1811, small distribution boxes AK(i)
External mounting kit TK ABL for all TK PS/PC- and RK-casing starting from TK PS/PC 77
Outer hinge set ASS-gro from TK PS/PC 1811 and from AKL/AKI 1
MOUNTING PLATE TK MPI-1811 FOR TK PS / TK PC 1811
Standard rail NS 35-81 for TK 1111, TK 1309, TK 1313, TK 1809, TK 1811 and Abox/Abox-i 060
Standard rail NS 35-144 for TK PS/PC 1809/1811/1813/1818/2518
Cable trough fixing KTB 1-100
- Standards
UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistivity), DNV (class: Ships and offshore installations), EN 60695-2-11
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 1811-6f-o
- Dim
(L x W x H) 110 x 180 x 63 mm
- Manufacturer part #
12041401
- Depth
63 mm
- UKCA
yes
