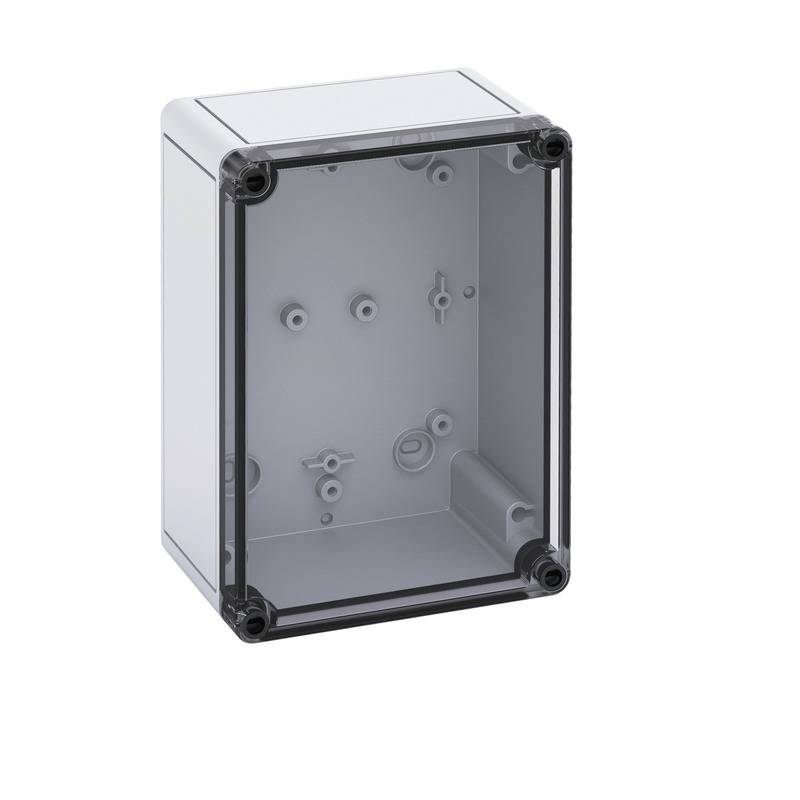

Spelsberg TK PC 1813-9-to Enclosure (empty) 130 x 180 x 90 x 90 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
180 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 180 x 130 x 90 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
Cover (clear)
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
Transparent
- Type
Without metric knockouts
- Knockouts
No
- Length
130 mm
- Width
180 mm
- Height
90 mm
- Dimensions
180 x 130 x 90 mm
- Weight
0.31 kg
- Compatible with (details)
Abox / Abox Pro junction boxes (2024 or higher)
TK PS/PC, RK CASE (TK PS/PC 77 OR HIGHER)
TK PS/PC 1811, AKL/AKI 1
TK 1809, TK 1811, TK 1813, TK 1818, TK 2518
- Standards
UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistivity), DNV (class: Ships and offshore installations), EN 60695-2-11, DIN EN 60715
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 1813-9-to
- Dim
(L x W x H) 130 x 180 x 90 mm
- Manufacturer part #
13001601
- Depth
90 mm
- UKCA
not relevant
