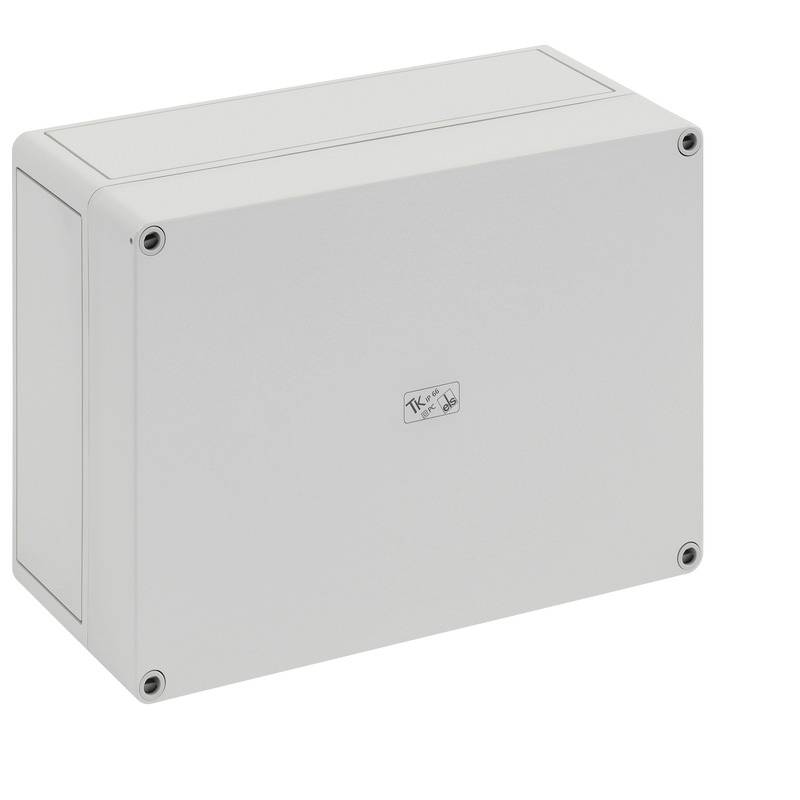

Spelsberg TK PC 2518-11-o Enclosure (empty) 254 x 180 x 111 Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
IP rating
IP66
Width
180 mm
Height
111 mm
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Glass-fiber reinforced, gray, smooth side-wall dimensions: 254 x 180 x 111 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
IP66
- Factory colour
Grey
- Type
Without metric knockouts
- Knockouts
No
- Length
254 mm
- Width
180 mm
- Height
111 mm
- Dimensions
254 x 180 x 111 mm
- Weight
0.83 kg
- Standards
UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistance), DNV (classification: Ships and offshore installations), EN 60695-2-11 (flame retardant), DIN EN 60715 (standard rail)
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 2518-11-o
- Dim
(L x W x H) 254 x 180 x 111 mm
- Manufacturer part #
12090801
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628702 Spelsberg TK PC 2518-11-o Enclosure (empty) 254 x 180 x 111 Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628702 Spelsberg TK PC 2518-11-o Enclosure (empty) 254 x 180 x 111 Grey 1 pc(s) Piece
