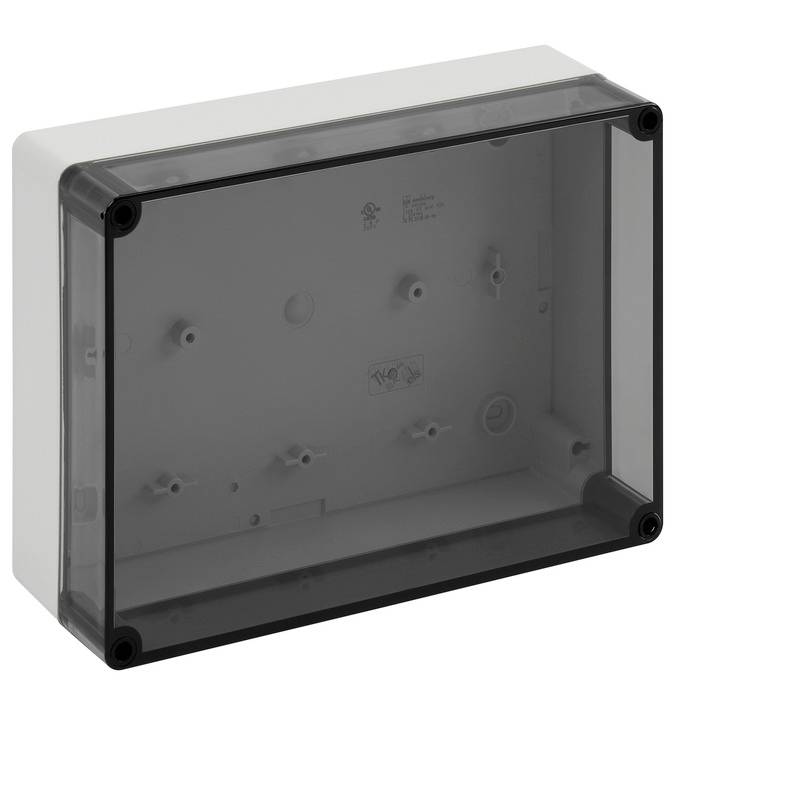

Spelsberg TK PC 2518-8f-to Enclosure (empty) 180 x 254 x 84 Grey, Transparent 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
IP rating
IP66
Width
254 mm
Height
84 mm
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 254 x 180 x 84 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
IP66
- Factory colour
Grey
Transparent
- Type
Without metric knockouts
- Knockouts
No
- Length
180 mm
- Width
254 mm
- Height
84 mm
- Dimensions
254 x 180 x 84 mm
- Weight
0.69 kg
- Compatible with (details)
Mast/pipe mounting set MABF 150-3 (for empty housing TK 1818, 2518 1 (vertical), small distribution boxes...), mast/pipe mounting set MABF 215-2 new (for empty housing TK 2518 (horizontal), TK 3625 (upright), small...), external mounting bracket set TK ABL (for all TK PS/PC, RK housing, TK PS/PC 77 or higher), ASS/PC 1811 and AKL external hinge set Installation material HBA (to be snapped onto the standard lid screw for TK...), mounting plate TK MPI-2518 (TK PS / TK PC 2518), standard rail NS 35-216 (TK PS / PC 2518/362)
- Standards
UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistance), DNV (classification: Ships and offshore installations)
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 2518-8f-to
- Dim
(L x W x H) 180 x 254 x 84 mm
- Manufacturer part #
13051101
Documents & Downloads
Datasheet
Datasheet 3628699 Spelsberg TK PC 2518-8f-to Enclosure (empty) 180 x 254 x 84 Grey, Transparent 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628699 Spelsberg TK PC 2518-8f-to Enclosure (empty) 180 x 254 x 84 Grey, Transparent 1 pc(s) Piece
