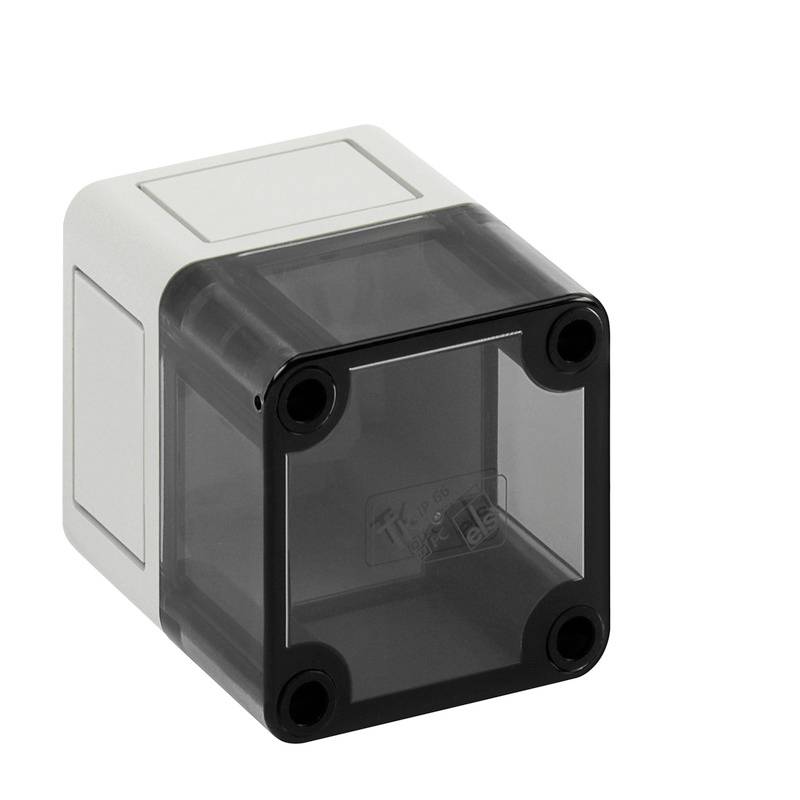

Spelsberg TK PC 77-8-to Enclosure (empty) 65 x 65 x 81 Grey, Transparent 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
IP rating
IP66
Width
65 mm
Height
81 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, IP66 protection class, polycarbonate, glass fiber reinforced, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 NO. 94.2-7), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 65 x 65 x 81 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
IP66
- Factory colour
Grey
Transparent
- Type
Without metric knockouts
- Knockouts
No
- Length
65 mm
- Width
65 mm
- Height
81 mm
- Dimensions
65 x 65 x 81 mm
- Weight
0.1374 kg
- Compatible with (details)
For empty housing TK 77, TK 97, TG 88, TG 1208, TG 1608 (mast/pipe mounting kit MABF 65-2), for all TK PS/PC, RK housing, TK PS/PC 77 (external mounting bracket set TK ABL), TK PS/PC 77 to TK PS/PC 1809 (outer hinge set ASS-kl), assembly material TK (HBA TK), for TK (distance set DST), TK PS / TK PC 77 (MOUNTING PLATE TK MPI-77), FOR TK 77, TK 97 (STANDARD RAILS TS 15-49.5)
- Standards
UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (ammonia resistant), DNV (classification: Ships and offshore installations), EN 60695-2-11 (filament flammable), DIN EN 60715 (standard rail)
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 77-8-to
- Dim
(L x W x H) 65 x 65 x 81 mm
- Manufacturer part #
13050101
