Stabila LAX 320 Level set Self-levelling Range (max.): 30 m
EAN:
Part number:
Item no:
Number
Total (€ 306.72 / piece)
€ 306.72
plus VAT.
14-day return policy included
Highlights & Details
Cross-line soldering laser LAX 320 G, 5-piece set
- Compact, always handy, immediately usable laser
- GREENBEAM technology for long and optimally visible laser lines
- Many possible applications due to cross lines and solder points
- Effective visual protection thanks to rotating housing
- Flexible positioning: 1/4"-thread, magnets, laser base, wall bracket
Technical specifications
- Laser type: Green diode laser
- Operating temperature range: -10 °C to +50 °C
- Storage temperature range: -25 °C to +70 °C
- Self-leveling is started automatically when switched on in horizontal mode
- The deviation of the vertical control may not be greater than 1 mm over a distance of 2 m.
- Product type
Level set
- Features
Self-levelling
- Range (max.)
30 m
- Accuracy (+/-)
0.3 mm
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Visible beam length
530
- Operating time (battery-powered)
15 h
- Power supply (details)
3 x 1.5 V Alkaline, size AA, LR6
- Tripod thread mount
1/4"
Manufacturer's standards (no certificate)
- Type
LAX 320
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3523827 Stabila LAX 320 Level set Self-levelling Range (max.): 30 m
Description

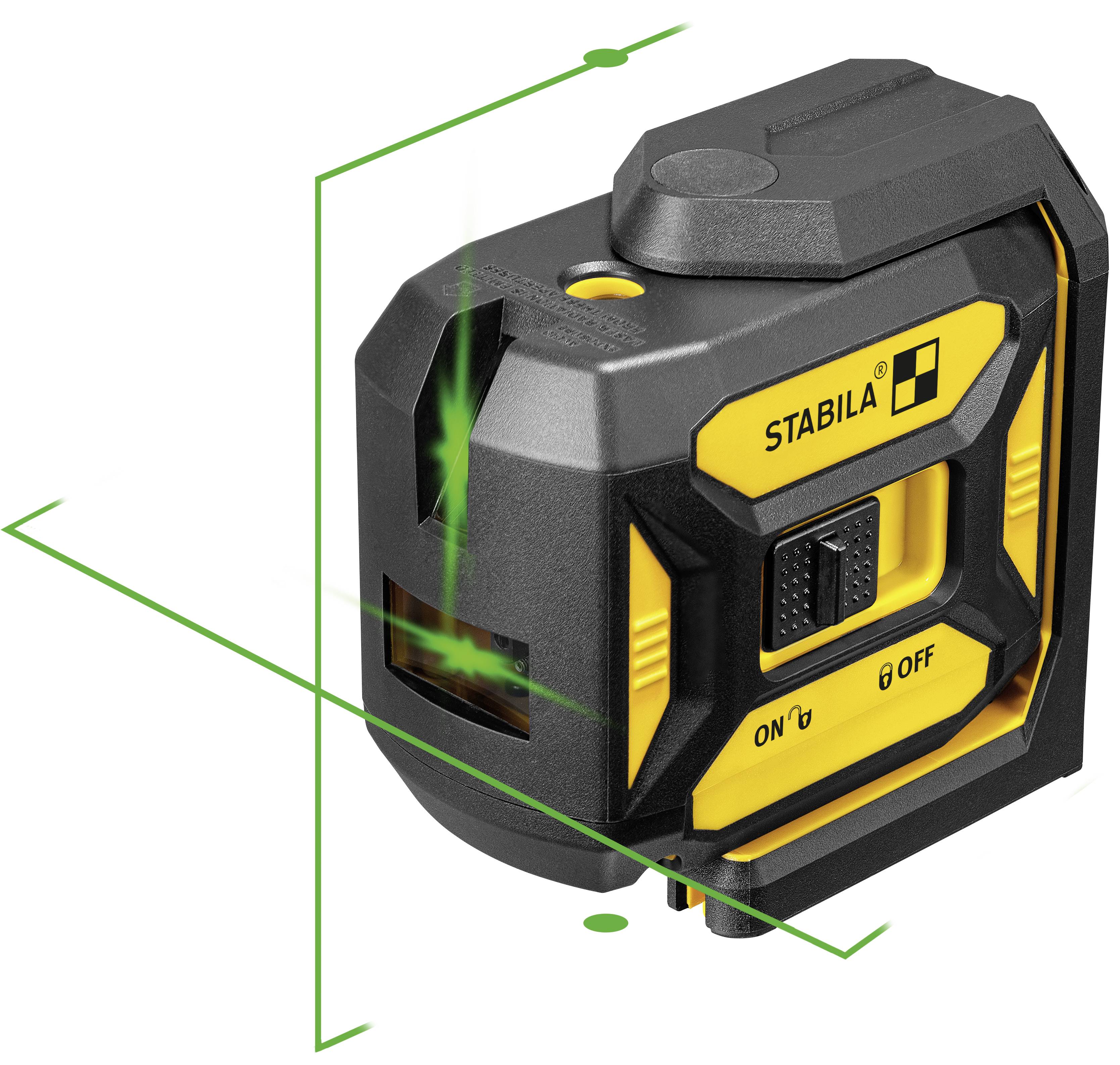

Discover the Stabila LAX 320 G, the compact cross-line laser with solder points.
With the innovative GREENBEAM technology this professional laser offers pin-sharp long lines for precise work at a distance of up to 30 m. The manual mode allows flexible inclinations, while the clever set accessories enable versatile applications. The rotating housing optimally protects the laser optics in the parking position.
Ideal for interior design and all, who are daily dependent on precise laser lines. Stabila – work efficiently, perfect results!
This text is machine translated.
Scope of delivery
- Cross-line soldering laser LAX 320 G
- SLB laser base 320, wall bracket
- Target plate
- 3 x AA 1.5 V batteries
- Belt holster
