Stahlwille 98830177 Workshop trolley Factory colour: Black, Green
EAN:
Part number:
Item no:
Highlights & Details

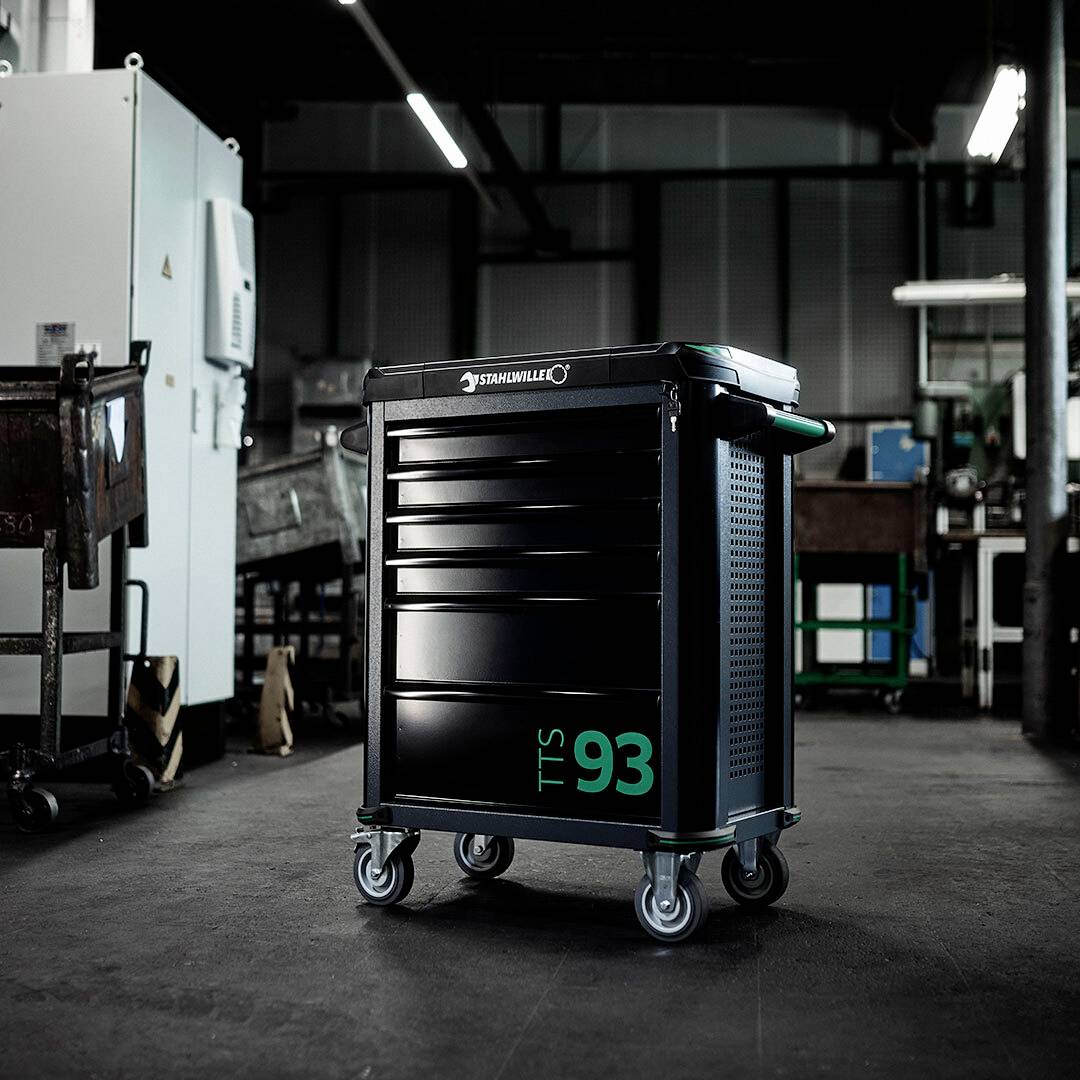

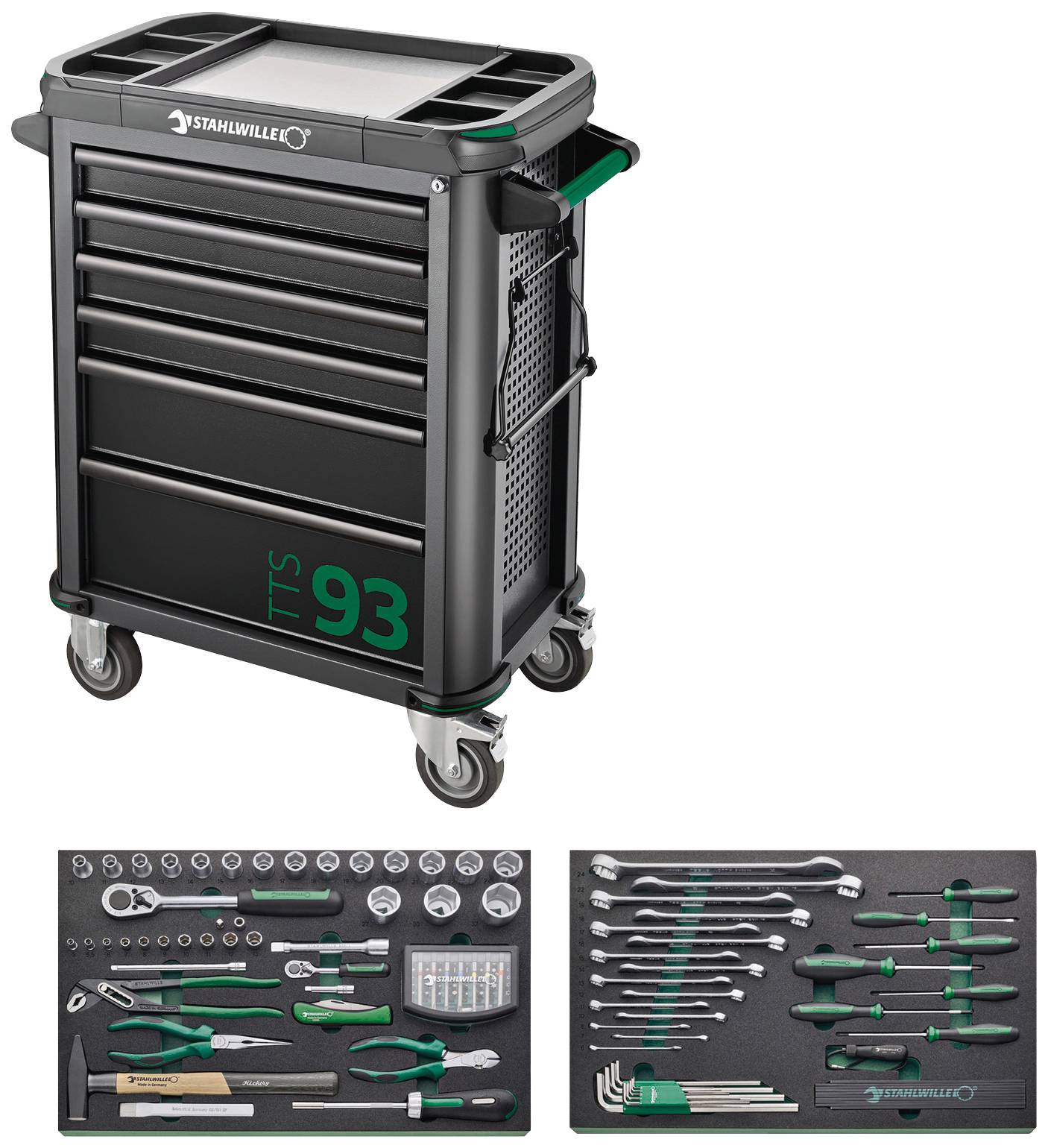

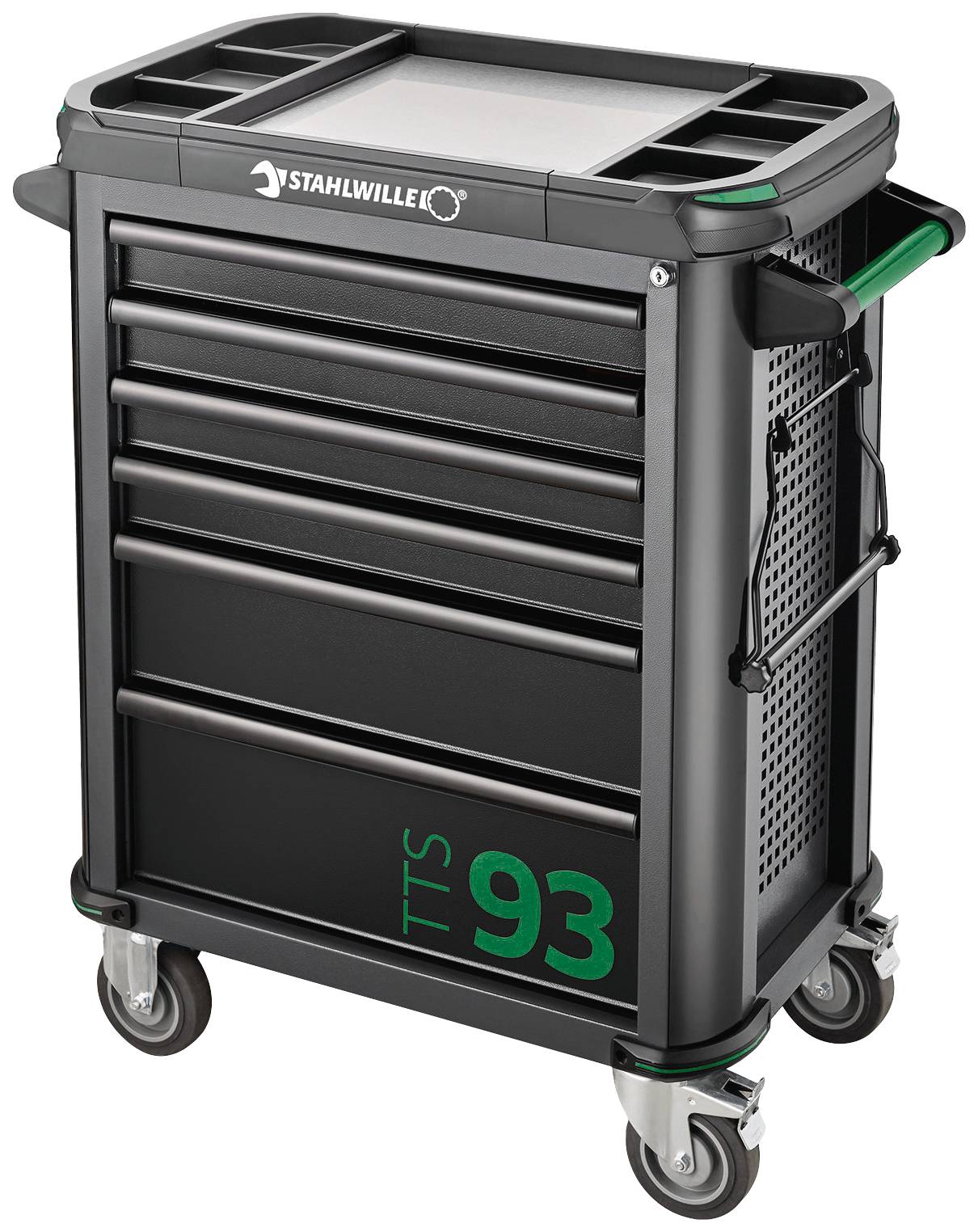

Stahlwille No. 93/130 workshop trolley, anthracite equipped with 130-piece Premium tool set | original equipment for industry, trade and automotive industry
- Robust Stahlwille tool trolley with 6 drawers and central locking system including 130-pieces. Toolkit
- Contains 1/4" and 1/2" socket wrenches (5-32 mm), QR ratchet + QR extensions, bit ratchet and bits, ring spanner, screwdriver, various pliers and many other tools
- Ratchet with 80 teeth enable a working angle of just 4.5° – for efficient working even in narrow spaces
- Unique QR locking system - keeps every component safe from ratchet to extension socket wrench to socket wrench insert

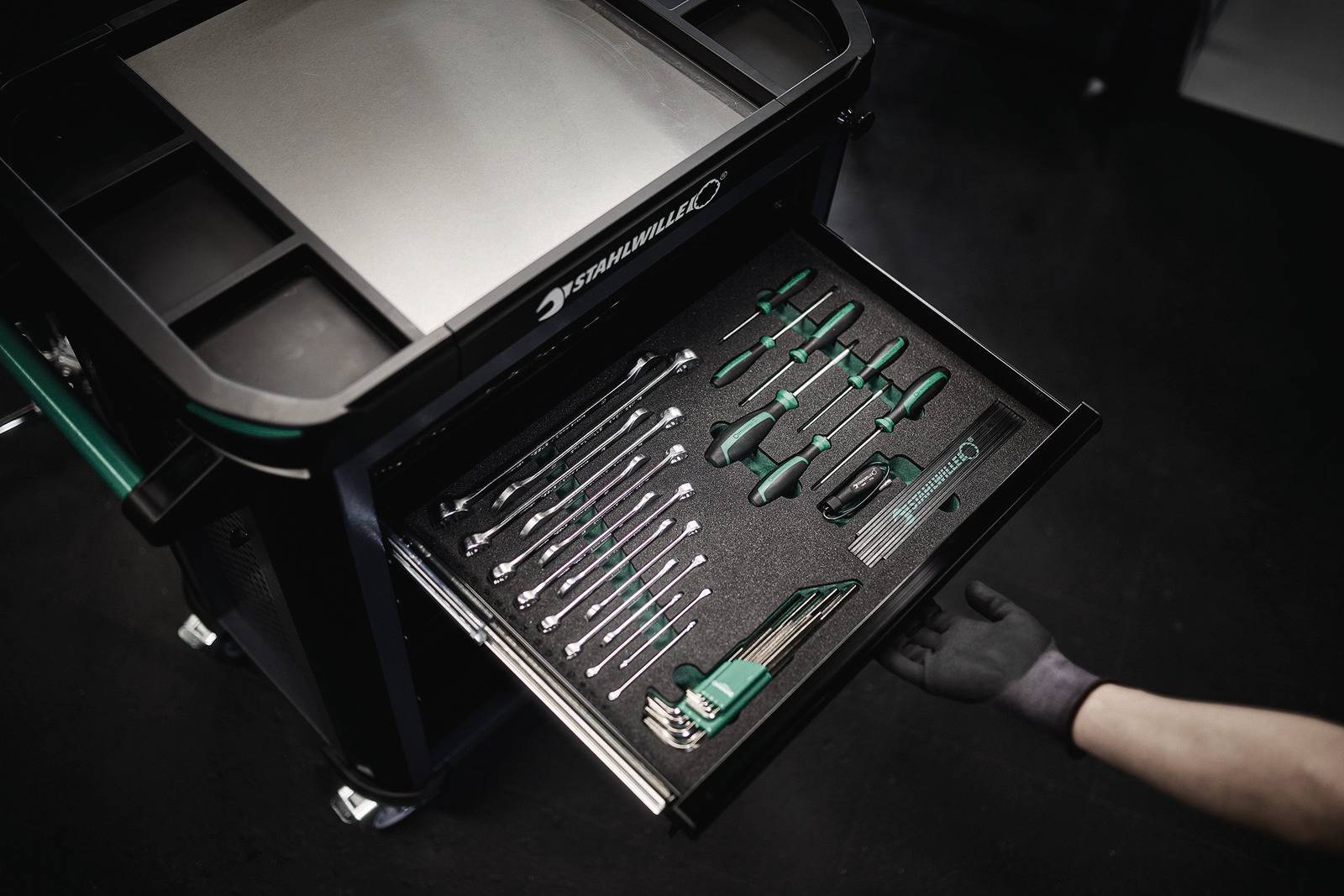

- Tool control system (TCS): All tools are clearly stored in TCS mats. Here, the green catches the eye immediately as soon as a tool is missing

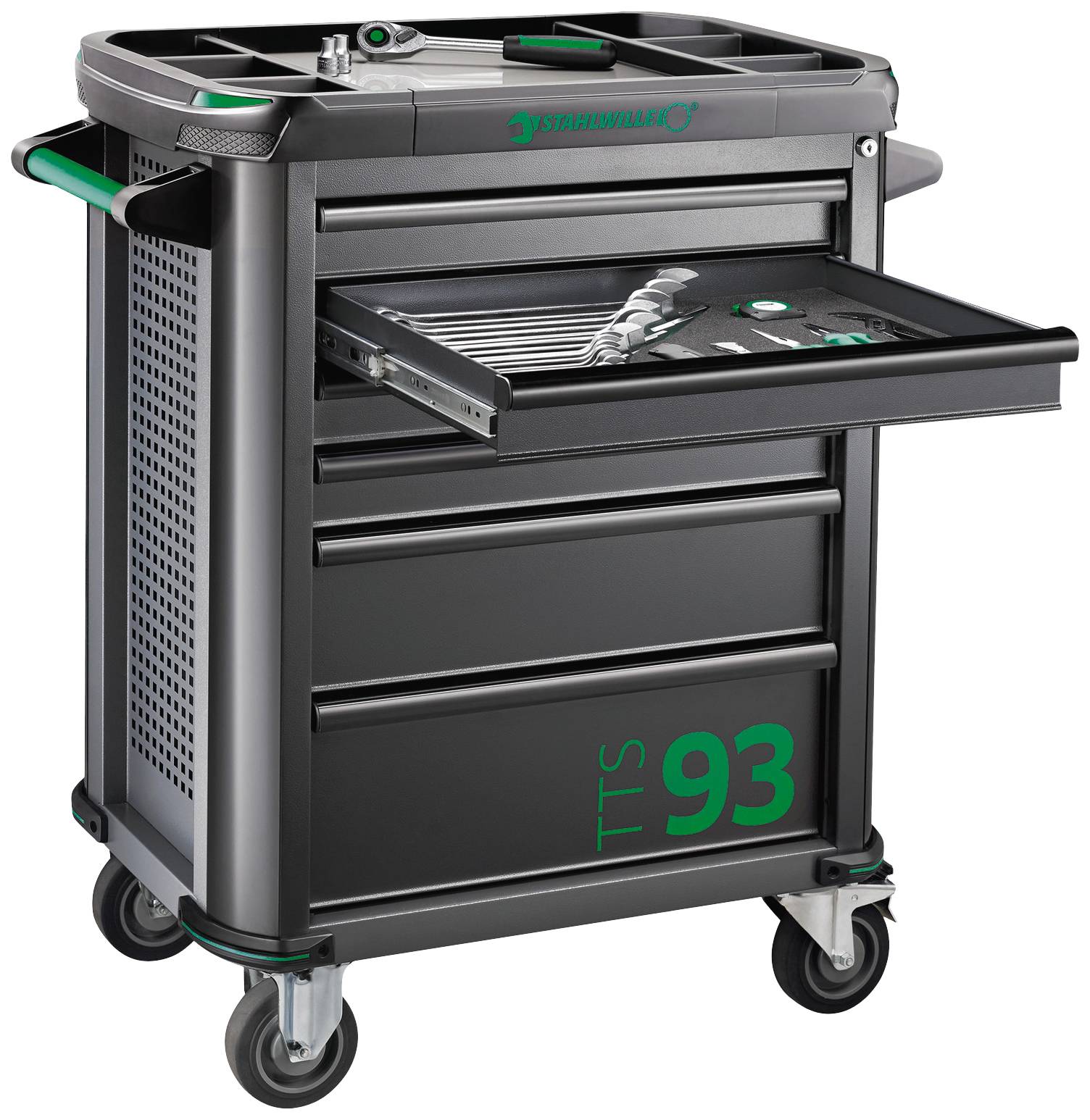

- All drawers can be pulled out to 100%. In combination with the Stahlwille TCS inserts or the variable drawer divisions, you always have the best overview and convenient tool removal

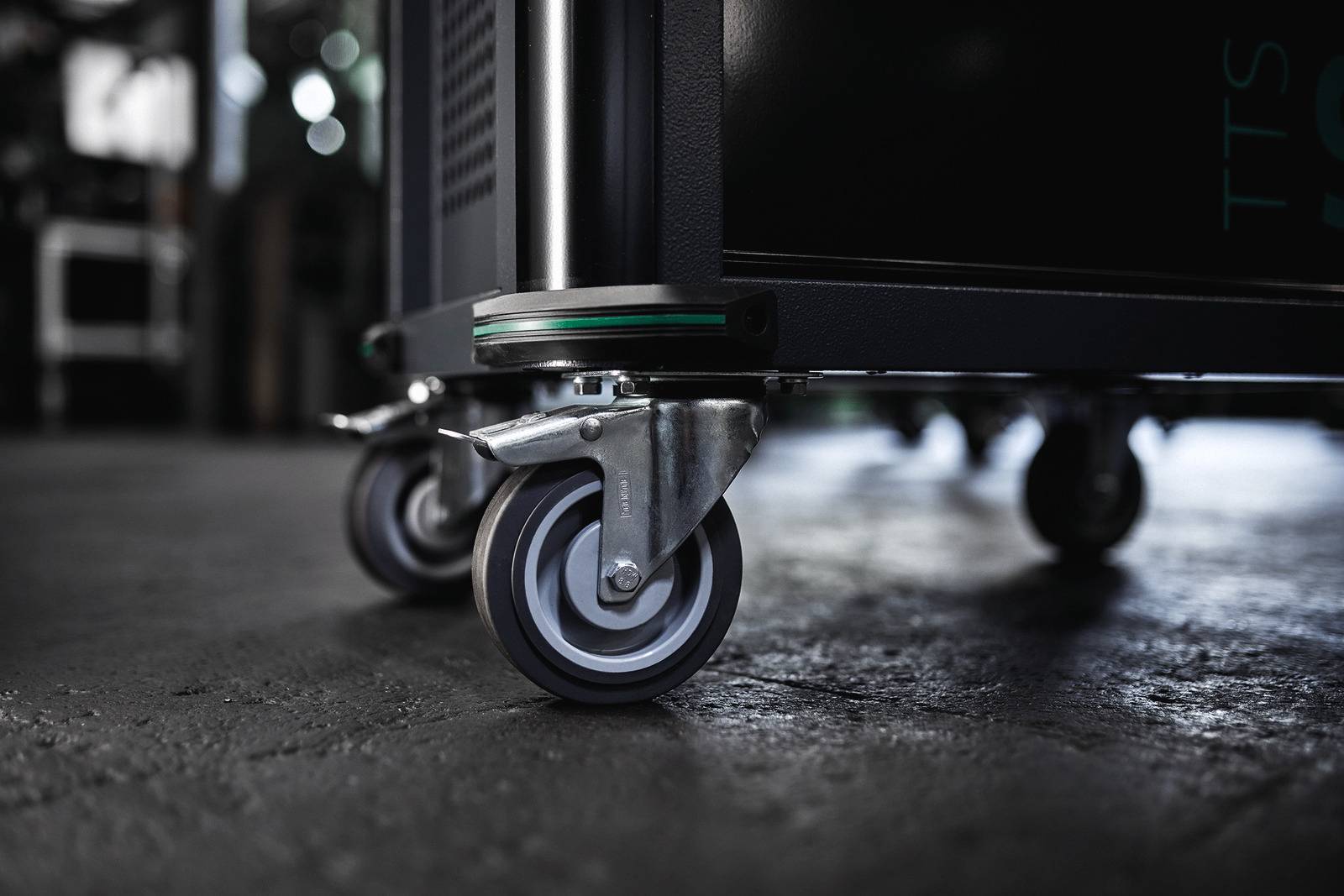

- Oil and acid-resistant light wheels (Ø 125 mm) with thread protection to protect the bearings from dirt and threads, with two parking brakes
- High static load capacity of up to 500 kg. The lower drawer has a load capacity of up to 45 kg

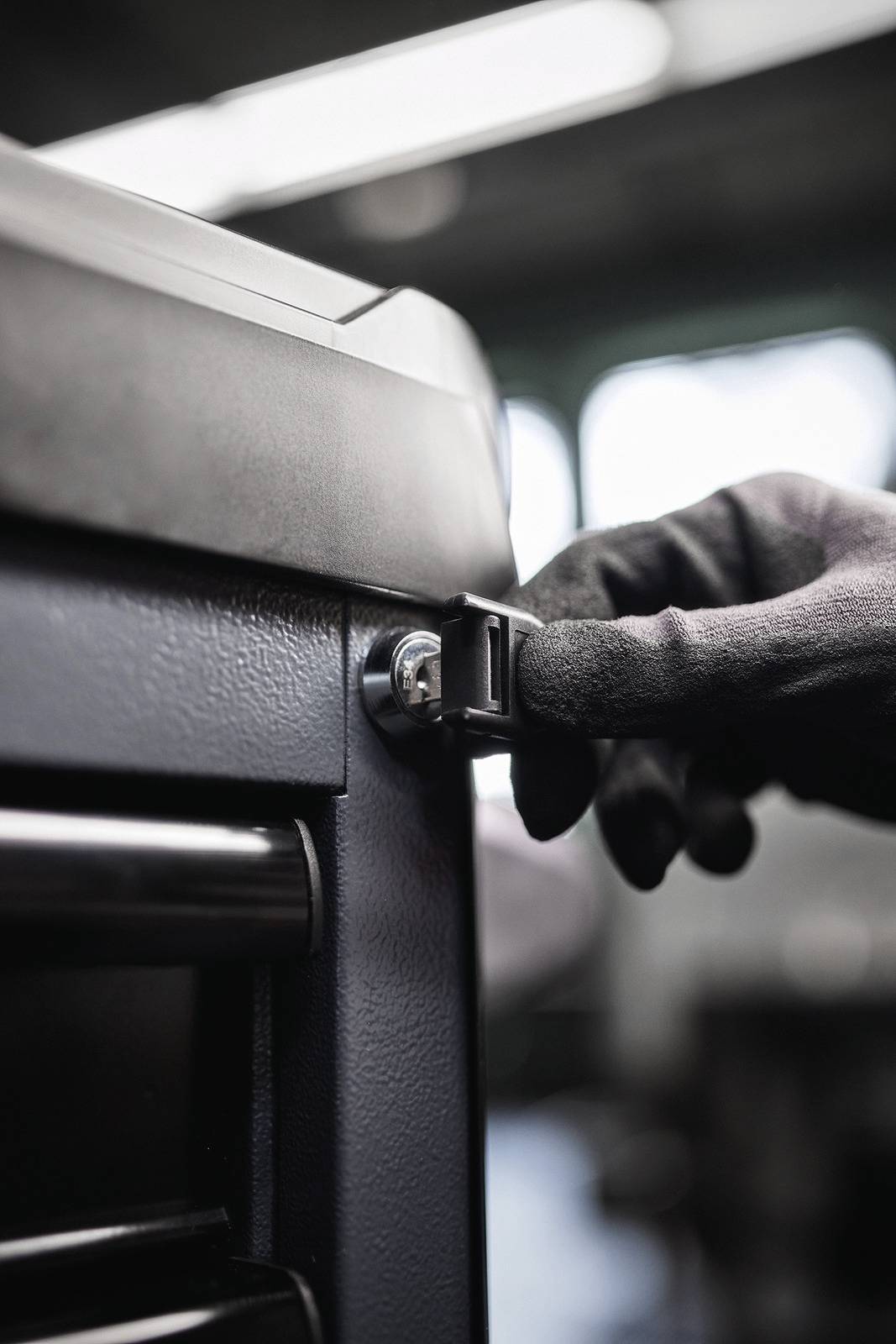

- Two-stage security concept: Central locking by cylinder lock with foldable key. Because of the tilt protection it is not possible to pull out several drawers simultaneously.
- 2 handle and all-round impact protection
- Sturdy plastic storage plate made of ABS with pockets for small parts
Technical specifications
- Product type
Workshop trolley
- Factory colour
Black
Green
- Load capacity (max.)
150 kg
- Dim
(L x W x H) 410 x 819 x 909 mm
- No. of drawers
1
- Weight
30 kg
- Content
1 pc(s)
- Width
819 mm
- Height
909 mm
- Length
410 mm
- Load capacity (drawer)
30 kg
- Features
Incl. 130-pcs tool set
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123274 Stahlwille 98830177 Workshop trolley Factory colour: Black, Green
Description
The extensive tool set (130-part) forms a solid basic equipment or Original equipment for industry, trade, automotive or even the home garage.
With the included tools (Made in Germany) many application cases can be covered.
The set is rounded off by the robust workshop trolley with matching, high-quality TCS mats for a safe and orderly storage of the tools.
The TTS93 proves that even basic models exist with which one does not have to make compromises in quality and features.
The series impresses with a two-stage safety concept, fully foldable drawers with ball-bearing guide, a high load-carrying capacity and an ergonomic working height of 100 cm.
Including individually fixable paper roll holder for paper rolls up to 30 cm width.
This text is machine translated.
With the included tools (Made in Germany) many application cases can be covered.
The set is rounded off by the robust workshop trolley with matching, high-quality TCS mats for a safe and orderly storage of the tools.
The TTS93 proves that even basic models exist with which one does not have to make compromises in quality and features.
The series impresses with a two-stage safety concept, fully foldable drawers with ball-bearing guide, a high load-carrying capacity and an ergonomic working height of 100 cm.
Including individually fixable paper roll holder for paper rolls up to 30 cm width.
This text is machine translated.
Scope of delivery
- 1 workshop trolley, anthracite no. 93/6A
- 1 Paper roll holder
- 10 socket wrench inserts 1/4" with hexagonal number 40: 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13 mm
- 17 socket wrench inserts 1/2" with hexagonal number 52: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
- 2 extensions 1/4" No. 405: 54, 150 mm
- 1 ratchet No. 415: 1/4"
- 1 Extension 1/2" No. 509: 130 mm
- 1 ratchet No. 512: 1/2"
- 1 needle nose pliers No. 6529: 200 mm
- 1 multigrip pliers No. 6551: 240 mm
- 1 Side cutter no. 6602: 160 mm
- 1 bit ratchet No. 4008-1
- 1 Bit connection part No. 3116
- 1 Bit holder Nr. 412: 1/4"
- 1 Flat chisel No. 102/150: 150 mm
- 1 Ball Peen Hammer No. 10961: 500 G.
- 1 cable knife No. 12320
- 1 Bit Box 1/4" No. 1206: 1 Bit holder | L.25mm: SL4.5,6mm (2x) | PH1.2,3 (3x) | PZ1.2,3 (3x) | T10.15.20.25.27.30.30.40 (2x) | T BO10.15.20.25.27.30.30.30.40 | INHEX 3.4,5mm | L.75mm: SL6 mm | PH2.3 | PZ1.2 | T20.25 | 56-piece
- 15 Combination wrenches Nr. 13: 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22, 24 mm
- 1 Wooden folding rule No. 13111: 2 m.
- 1 magnetic lifter No. 12600: 270 G
- 1 angular screwdriver set No. 10765/9: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm 9-pieces
- 1 screwdrivers for slotted screws No. 4620: 0.8 x 4.0 x 100 mm
- 1 Electronics slotted screwdrivers no. 4628: 0.4 x 2.5 x 60 mm
- 2 cross-tip screwdrivers No. 4630: PH1, PH2
- 3 screwdrivers for TORX® screws No. 4650: T15, T20, T25
