Stahlwille 98830179 Workbench (W x H x D) 1150 x 1045 x 500 mm Anthracite
EAN:
Part number:
Item no:
Highlights & Details

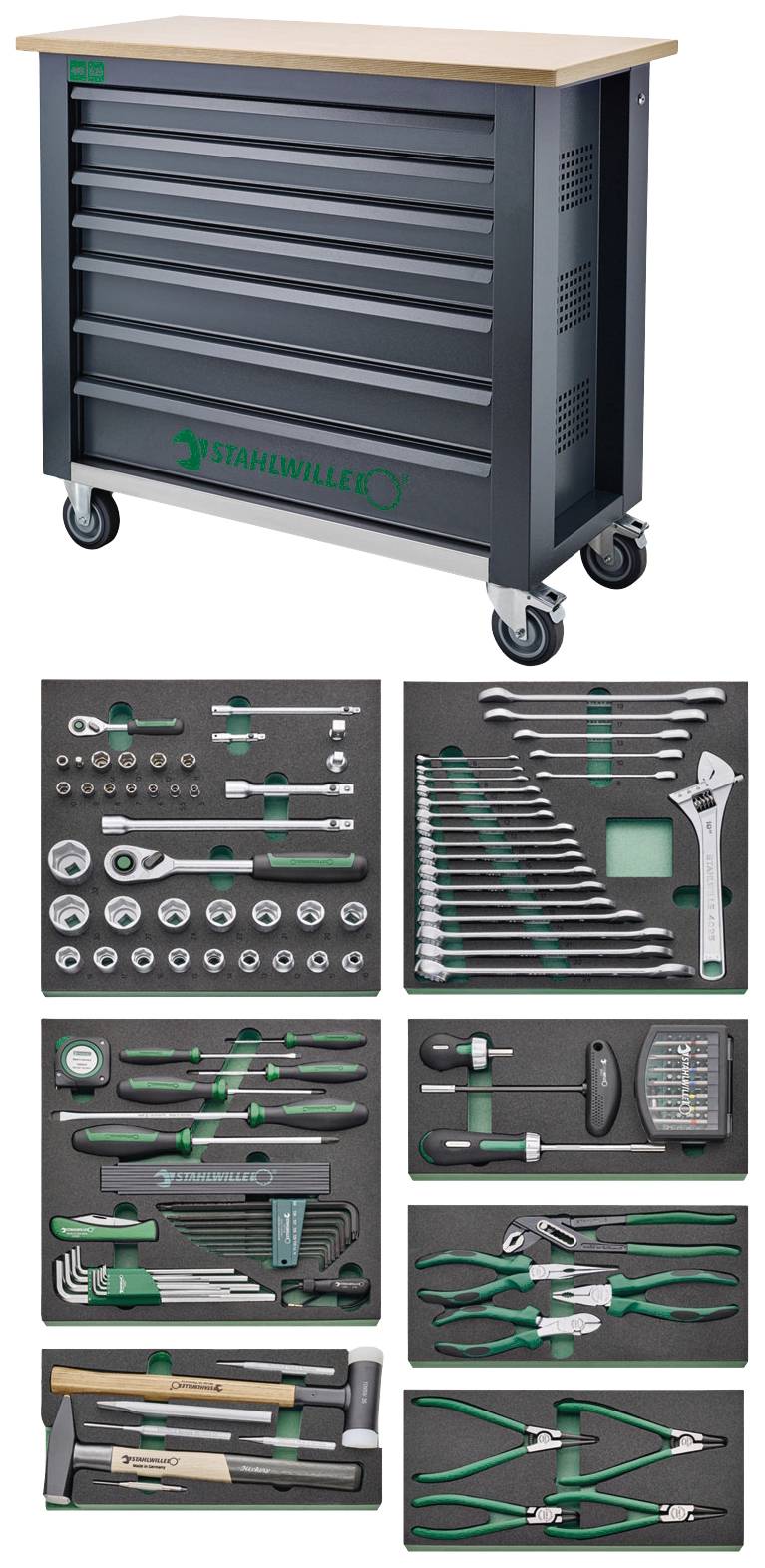

Premium Toolkit 161-piece With WB625 mobile workbench | 7 drawers
- Premium tool assortment contains 161 parts for different applications and tasks
- Contains 1/4" and 1/2" socket wrenches (5-32 mm), QR ratchet + QR extensions, bit ratchet and bits, ring spanner, screwdriver, various pliers and many other tools
- Ratchet with 80 teeth enable a working angle of just 4.5° – for efficient working even in narrow spaces
- Unique QR locking system - keeps every component safe from ratchet to extension socket wrench to socket wrench insert
- Tool control system (TCS): All tools are clearly stored in TCS mats. Here, the green catches the eye immediately as soon as a tool is missing
- 7 extra wide drawers
- Large working area with Birch-Multiplex working surface, working height of 104 cm, FSC-certified, 1150x 500x30 mm
- Three-stage safety concept:

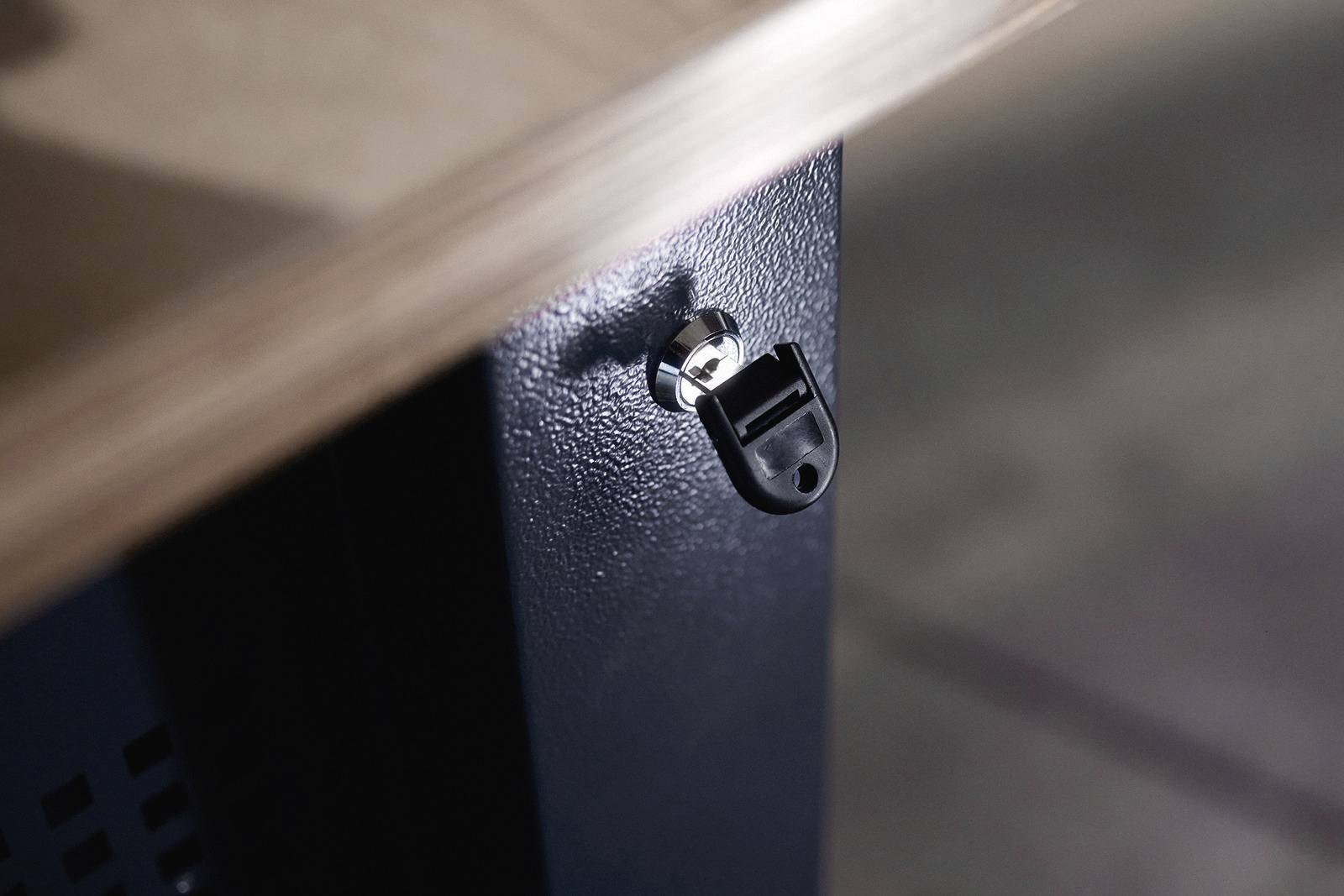

- 1. Central locking by lateral cylinder lock with foldable key
- 2. Individual locking prevents accidental opening while driving
- 3. Tilt protection - not possible to pull out several drawers at the same time

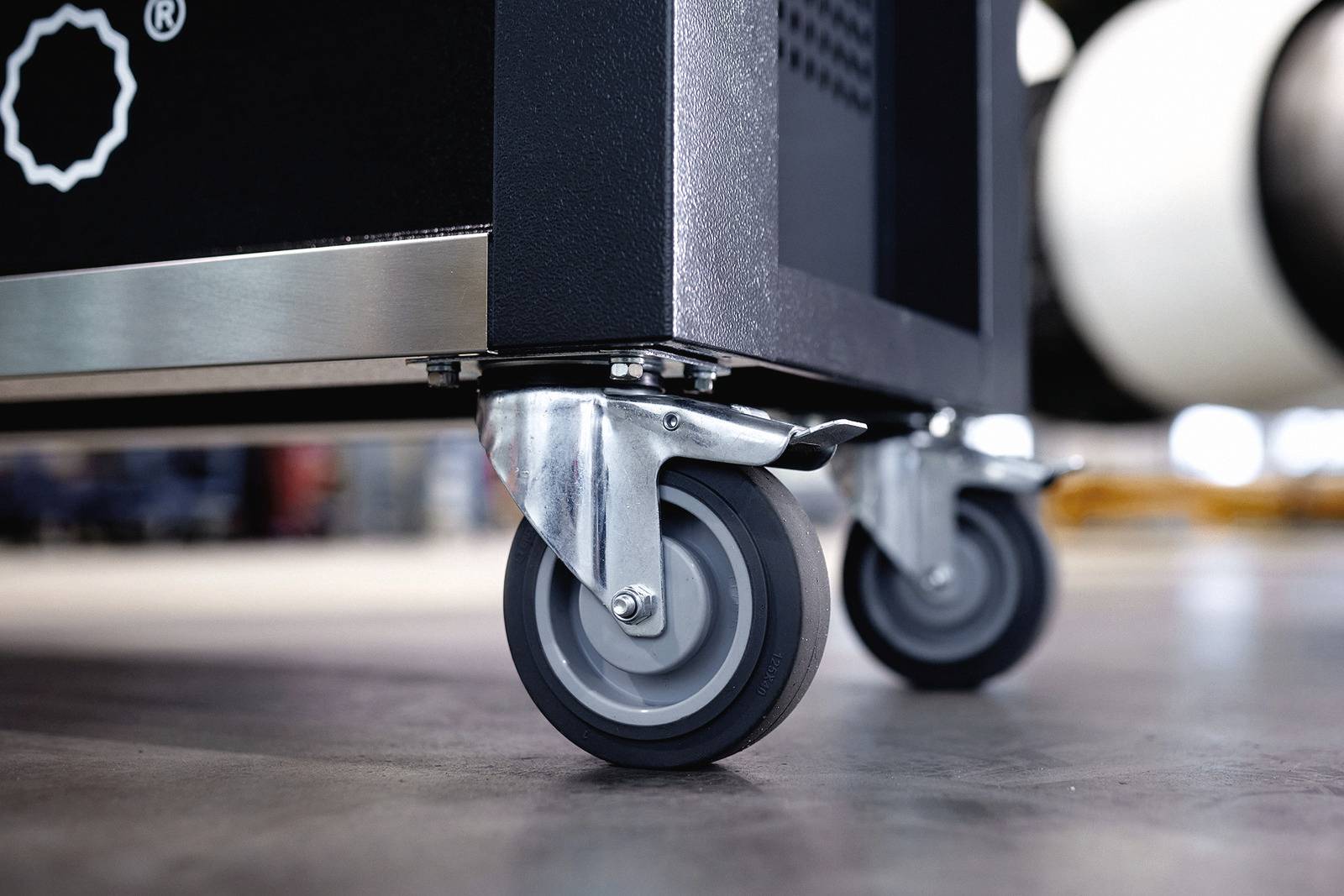

- Oil and acid-resistant wheels (Ø125 mm) with thread protection to protect the bearings from dirt and threads, with two locking brakes
Technical specifications
- Dim
(W x H x D) 1150 x 1045 x 500 mm
- Product type
Workbench
- Width
1150 mm
- Thickness (worktop)
30 mm
- Height
1045 mm
- Factory colour
Anthracite
- Depth
500 mm
- Material (worktop)
Multiplex beech
- Weight
119 kg
- No. of drawers
7
- Features
incl. 161-pcs tool set
- Expandable
No
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123301 Stahlwille 98830179 Workbench (W x H x D) 1150 x 1045 x 500 mm Anthracite
Description
Workshop bench assortment – This is how comfortable it can be. Our workbench with perfect working height and plenty of space for premium tools!
The extensive tool set (161-part) forms a rock-solid and high-quality basis equipment or Original equipment for industry, trade, automotive or even the home garage.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the sturdy workbench with suitable, high-quality TCS mats for safe and organized storage of tools.
The WB625 workbench offers maximum storage space with seven extra wide drawers and is also extremely robust. Especially comfortable: The birch-wood multiplex work plate with a working height of 104 cm. Including individually fixable paper roll holder for paper rolls up to 30 cm width.
The working height of 104 cm for comfortable working. The robust construction and the Birch wood multiplex panel ensure the typical long life of the Stahlwille.
Oil and acid-resistant light wheels (Ø 125 mm) with thread protection to protect the bearings from dirt and threads, with two parking brakes.

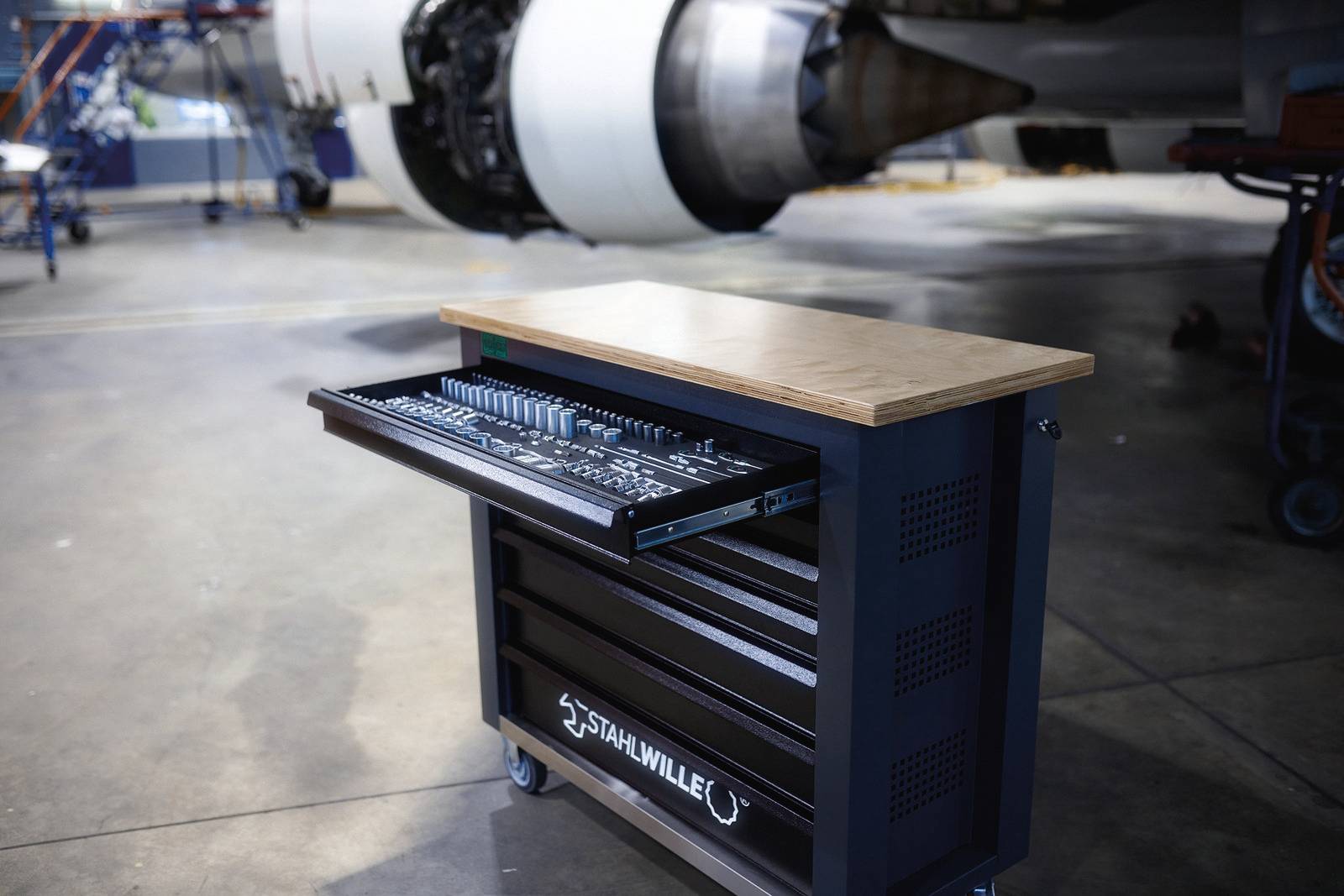

All in XXL. Seven removable drawers with full extension and a width of 880 mm offer plenty of storage space. The Multiplex worktop is not only particularly large (1150 x 500 x 30 mm), but also FSC-certified.
This text is machine translated.
The extensive tool set (161-part) forms a rock-solid and high-quality basis equipment or Original equipment for industry, trade, automotive or even the home garage.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the sturdy workbench with suitable, high-quality TCS mats for safe and organized storage of tools.
The WB625 workbench offers maximum storage space with seven extra wide drawers and is also extremely robust. Especially comfortable: The birch-wood multiplex work plate with a working height of 104 cm. Including individually fixable paper roll holder for paper rolls up to 30 cm width.
The working height of 104 cm for comfortable working. The robust construction and the Birch wood multiplex panel ensure the typical long life of the Stahlwille.
Oil and acid-resistant light wheels (Ø 125 mm) with thread protection to protect the bearings from dirt and threads, with two parking brakes.
All in XXL. Seven removable drawers with full extension and a width of 880 mm offer plenty of storage space. The Multiplex worktop is not only particularly large (1150 x 500 x 30 mm), but also FSC-certified.
This text is machine translated.
Scope of delivery
- 1 Mobile workbench WB 625
- 1 Paper roll holder
- 11 socket wrench inserts, 1/4" No. 40: 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
- 17 socket wrench inserts, 1/2" No. 52: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
- 2 QuickRelease extensions, 1/4" No. 405QR: 54, 150 mm
- 1 QuickRelease Fine tooth ratchet No. 415QR N: 1/4"
- 1 Bit holder Nr. 412: 1/4"
- 1 Bit connection part No. 3116
- 2 QuickRelease extensions, 1/2" No. 509QR: 130, 255 mm
- 1 QuickRelease fine tooth ratchet, 1/2" No. 512QR N
- 1 magnification piece No. 410: 1/4 to 1/2"
- 1 Reducing piece No. 513: 1/2 to 3/8"
- 2 Bit ratchet No. 4008: Gr. 1, 2
- 1 Bit holder Nr. 4007: 1/4"
- 1 Bit set No. 1206: 1 Bit holder | L. 25 mm: SL4.5,6 mm (2x) | PH1.2,3 (3x) | PZ1.2,3 (3x) | T10.15.20.20.25.27.30.40 (2x) | T BO10.15.20.15.25.27.30.40 | INHEX 3,4,5 mm | L. 75 mm: SL6 mm | PH2.3 | PZ1.2 | T20.25 | 56-piece
- 1 multigrip pliers No. 6551: 240 mm
- 1 Side cutter no. 6602: 160 mm
- 1 needle nose pliers No. 6529: 200 mm
- 1 combination pliers No. 6501: 180 mm
- 16 Combination wrenches Nr. 13: 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 mm
- 1 single-ended open ring spanner, adjustable No. 4025
- 5 ratchet ring spanner No. 17F: 8, 10, 13, 17, 19 mm
- 1 electrician's screwdriver No. 4628: 0.4x 2.5x 60 mm
- 2 Slot screwdriver No. 4620: 0.8 x 4.0 x 100, 1.6 x 10.0 x 200 mm
- 3 no. 4630 cross-tip screwdrivers PH1, PH2, PH3
- 1 cable knife No. 12320
- 1 Tape measure No. 12935: 3 m.
- 1 mini magnetic lifter No. 12600: 270 G
- 1 Wooden folding rule No. 13111: 2 m.
- 1 set of ball head angle screwdrivers TORX® No. 10771/8: T9, T10, T15, T20, T25, T27, T30, T40, 8-PART
- 1 set of angled screwdrivers hexagonal no. 10765/9: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm, 9-parts
- 1 Ball Peen Hammer No. 10961: 500 G.
- 1 Soft hammer drill Nr. 10959: 35 mm
- 1 Flat chisel, Flat oval no. 102/175: 175 mm
- 1 split pin driver, octagonal No. 108/150: 150 x 6 mm
- 1 center punch, octagonal No. 105/100: 100 x 10 mm
- 1 Splint driver No. 109/6: 3.4 mm
- 1 punch, octagonal No. 104/120: 120 mm
- 1 Circlip pliers, polished No. 6543: J2
- 1 Circlip pliers, polished No. 6544: J21
- 1 Circlip pliers, polished No. 6545: A2
- 1 Circlip pliers, polished No. 6546: A21
