Stahlwille 98830189 93 TOP BOX/130 Tool box Black
EAN:
Part number:
Item no:
Highlights & Details

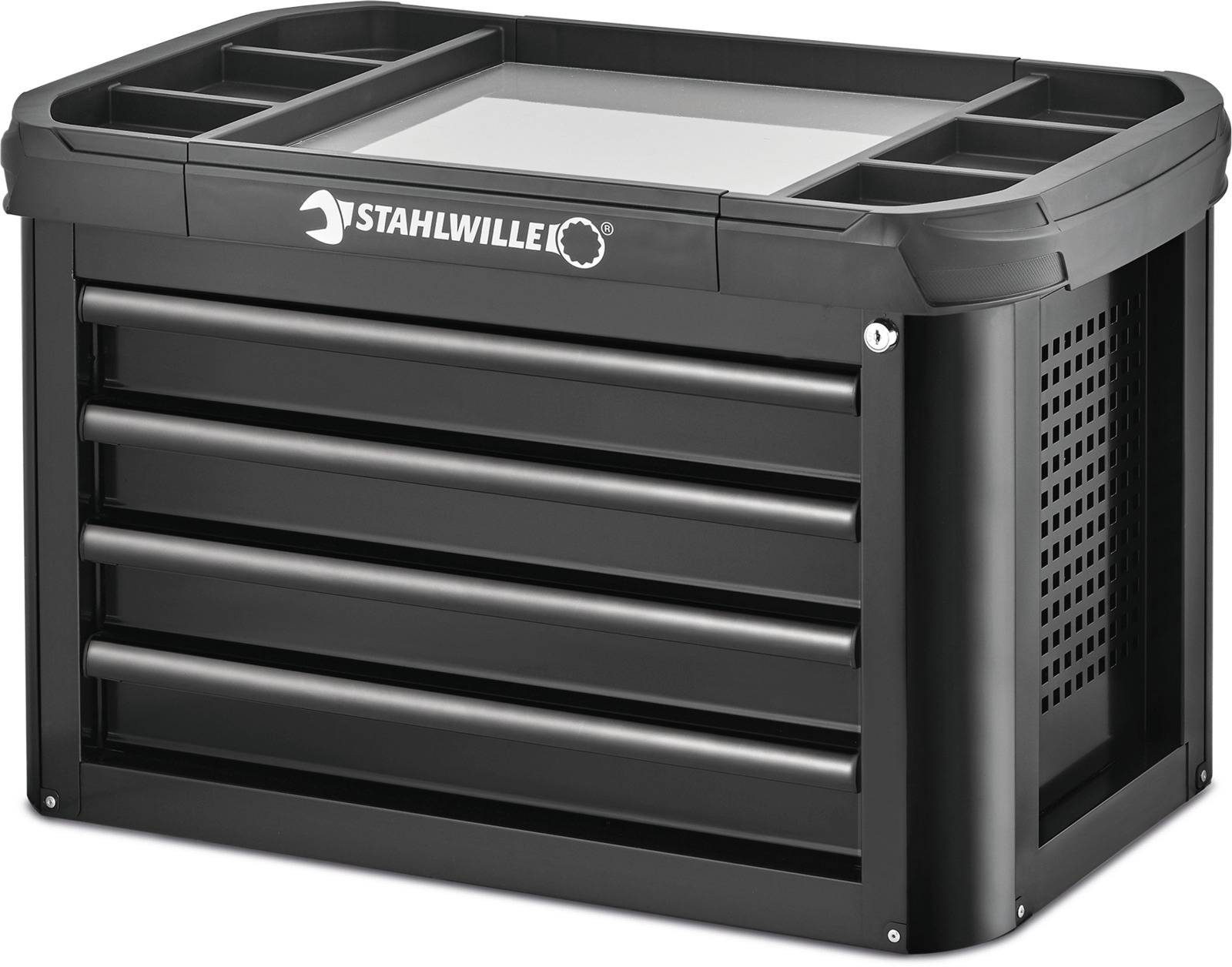

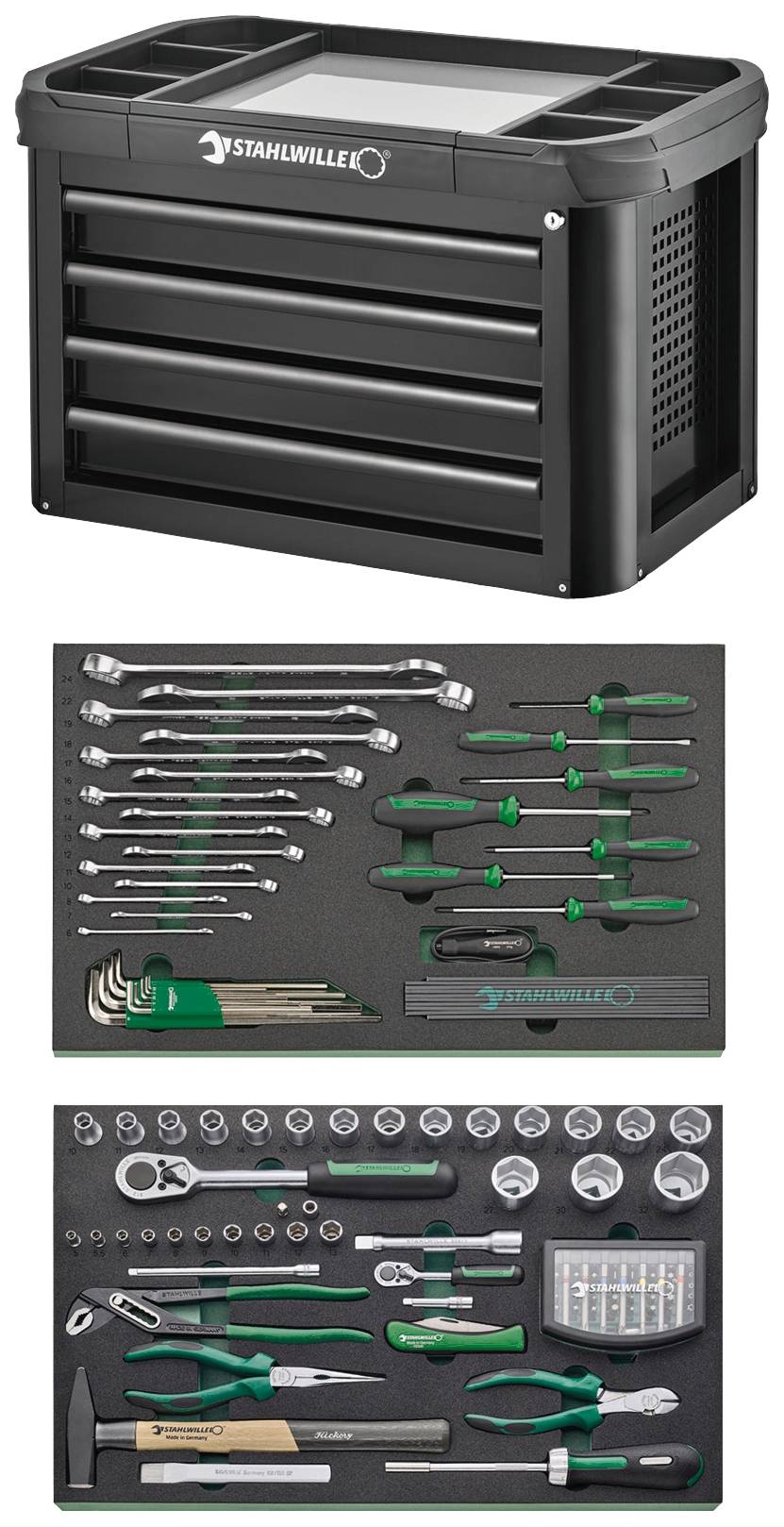

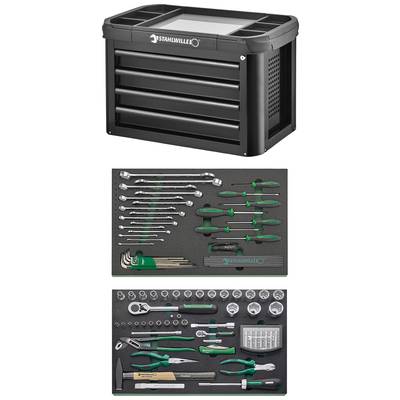

Tool assortment 130 piece In 93 TOP BOX black | 4 drawers
- Contains 1/4" and 1/2" socket wrench (5-32 mm), ratchet + extensions, bit ratchet and bits, ring spanner, screwdriver, various pliers and other tools
- Tool control system (TCS): All tools are clearly stored in TCS mats. Here, the green catches the eye immediately as soon as a tool is missing
- All drawers can be pulled out to 100%. In combination with the Stahlwille TCS inserts or the variable drawer divisions, you always have the best overview and convenient tool removal
- Two-stage security concept: Central locking by cylinder lock with foldable key. Because of the tilt protection it is not possible to pull out several drawers simultaneously
- Body and drawers powder-coated (black, RAL 9005)
- Sturdy plastic storage plate made of ABS with pockets for small parts
- Double-sided hole pattern for hook no. 8031-8041, e.g. for larger tools
- Can be combined with the workshop trolley 93/6 or the matching Caddy
Technical specifications
- Product type
Tool box
- Factory colour
Black
- Width
750 mm
- Height
465 mm
- Depth
477 mm
- Dim
(W x H x D) 750 x 465 x 477 mm
- Weight
47 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3123273 Stahlwille 98830189 93 TOP BOX/130 Tool box Black
Description
High-quality selection of tools for repairs, maintenance and repair. The extensive tool set (130-part) forms a solid basic equipment or Original equipment for industry, trade, automotive or even the home garage.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the matching, high-quality TCS mats for a safe and orderly storage of tools in the top box.
For all, who want to be flexible. The practical TTS93 Top Box can be used separately on the appropriate CADDY or as an attachment box for the TTS93 workshop car. With four drawers the Top Box offers an additional option for storing tools. The top box is available only in black color.
This text is machine translated.
The tools supplied can be used for a wide range of applications.
The set is rounded off by the matching, high-quality TCS mats for a safe and orderly storage of tools in the top box.
For all, who want to be flexible. The practical TTS93 Top Box can be used separately on the appropriate CADDY or as an attachment box for the TTS93 workshop car. With four drawers the Top Box offers an additional option for storing tools. The top box is available only in black color.
This text is machine translated.

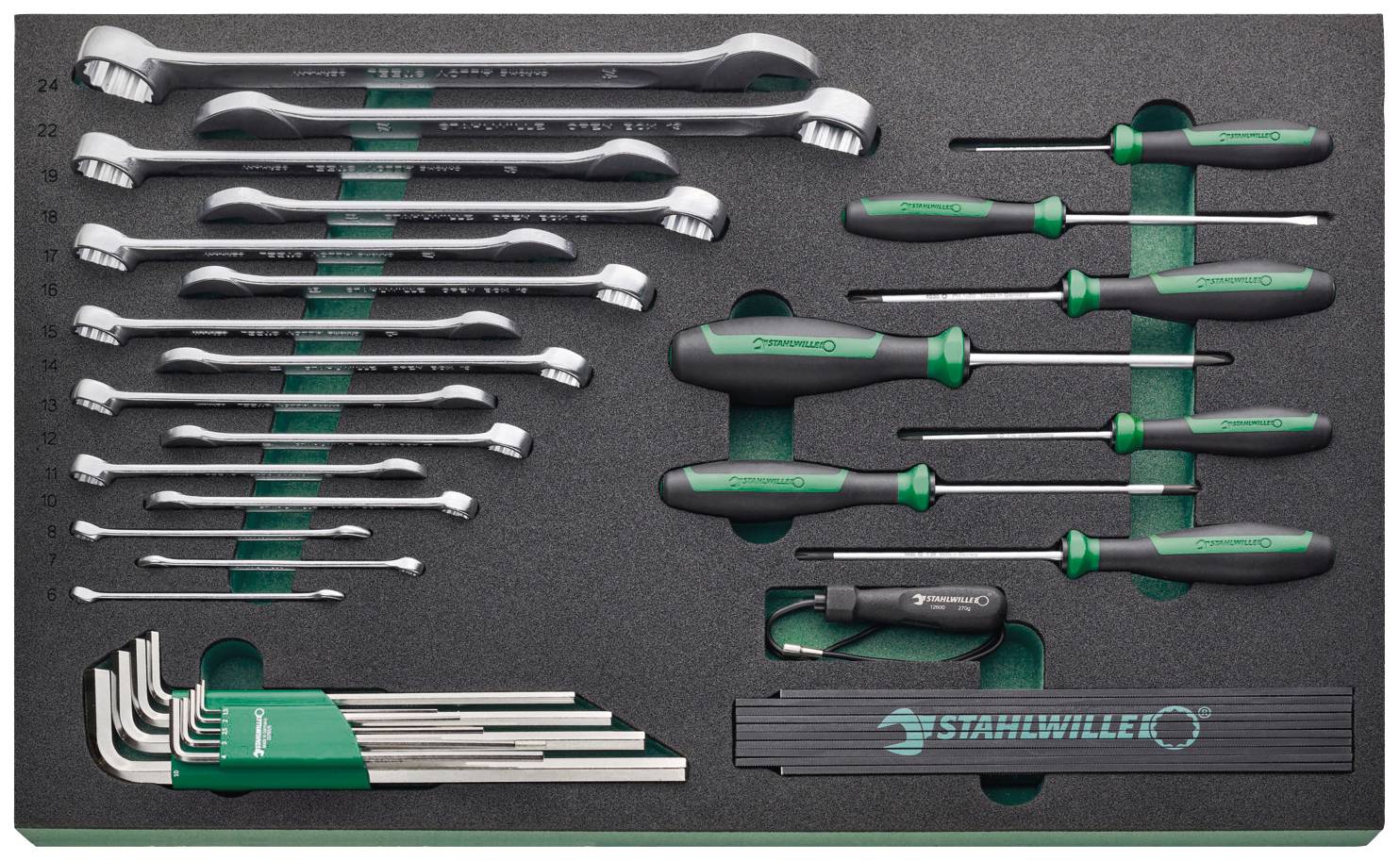

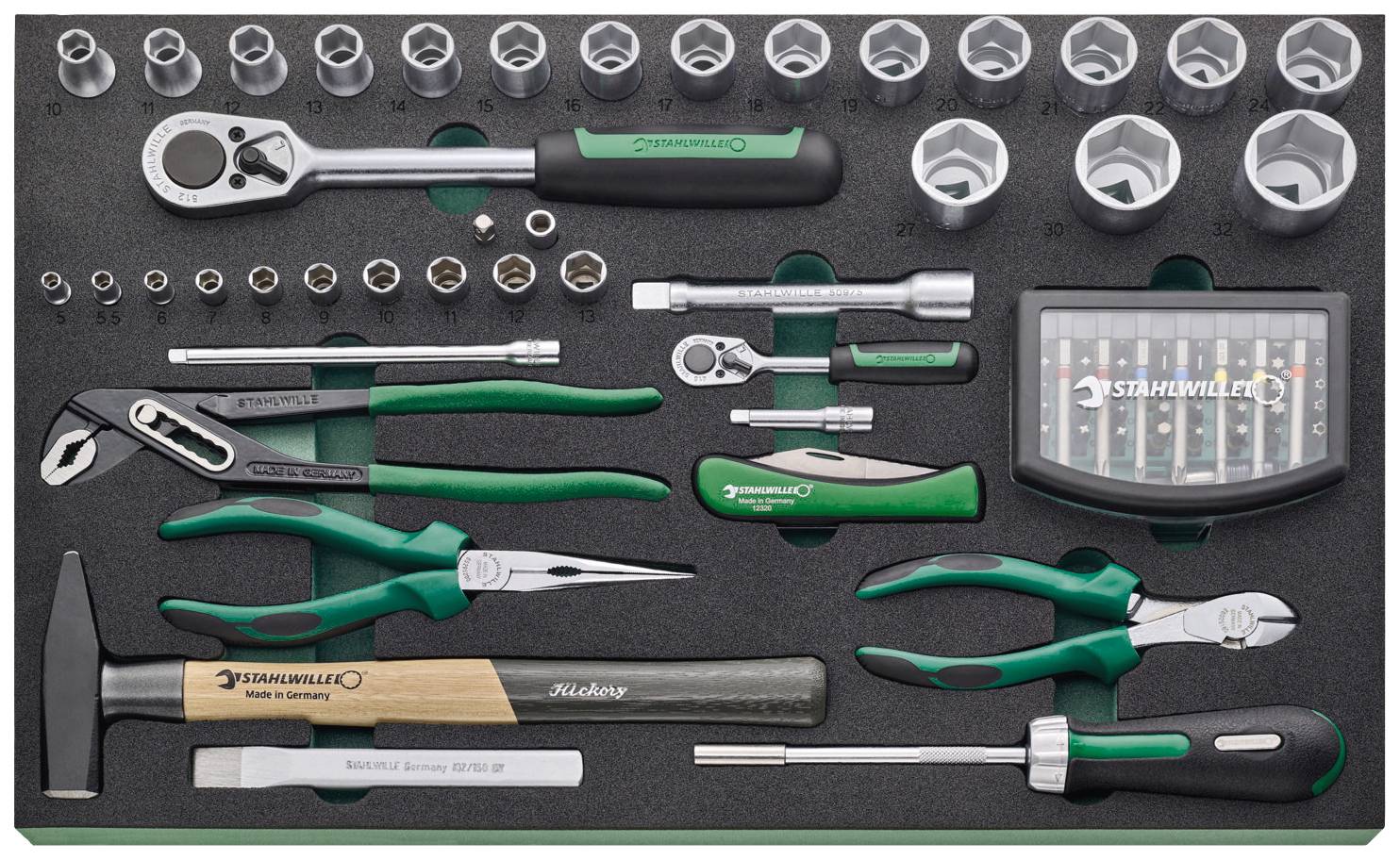

Scope of delivery
- 1 TOP BOX 93, 4 drawers
- 10 socket wrench inserts with hexagon, 1/4" No. 40: 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13 mm
- 17 socket wrench inserts with hexagon, 1/2" No. 52: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
- 2 extensions, 1/4" No. 405: 54, 150 mm
- 1 ratchet 415-2K: 1/4"
- 1 extension, 1/2" No. 509: 130 mm
- 1 ratchet 512-2K: 1/2"
- 1 needle nose pliers No. 6529: 200 mm
- 1 multigrip pliers No. 6551: 240 mm
- 1 Side cutter no. 6602: 160 mm
- 1 Bit ratchet No. 4008-1: 1/4"
- 1 Bit connection part No. 3116
- 1 Bit holder Nr. 412: 1/4"
- 1 Flat chisel, Flat oval no. 102/150: 150 mm
- 1 Ball Peen Hammer No. 10961: 300 G.
- 1 cable knife No. 12320
- 1 Bit set No. 1206: 1 Bit holder | L.25mm: SL4.5,6mm (2x) | PH1.2,3 (3x) | PZ1.2,3 (3x) | T10.15.20.25.27.30.40 (2x) | T BO10.15.15.20.25.27.30.40 | INHEX 3.4,5mm | L.75mm: SL6 mm | PH2.3 | PZ1.2 | T20.25 | 56-piece
- 15 Combination wrenches Nr. 13: 6, 7, 8, 10, 11, 12, 13, 15, 15, 16, 17, 18, 19, 22, 24 mm
- 1 Wooden folding rule No. 13111: 2 m.
- 1 mini magnetic lifter No. 12600: 270 G
- 1 angular screwdriver set No. 10765/9: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm, 9-parts
- 1 screwdrivers for slotted screws No. 4620: 0.8 x 4.0 x 100 mm
- 1 Electronics slotted screwdrivers no. 4628: 0.4 x 2.5 x 60 mm
- 2 cross-tip screwdrivers No. 4630: PH1, PH2
- 3 screwdrivers for TORX® screws No. 4650: T15, T20, T25
